ISO1716 ASTM D5856 ISO18125 Biomass Oxygen Bomb Calorimeter Coal Calorific Value Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CVT |
| Minimum Order Quantity | 1 set Coal Calorific Value Tester |
| Price | USD1.0 / set Oxygen Bomb Calorimeter |
| Packaging Details | Oxygen Bomb Calorimeter is Packed in wooden case |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 sets Calorific Value Tester / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Digital Display Building Material Calorific Value Testing ISO1716 Tester | Application | Measures Calorific Value Of Building Material |
|---|---|---|---|
| Application Field | Building Material, Coal, Feed Energy, Petroleum Products... | Description | ISO1716 ASTM D5856 ISO18125 Biomass Oxygen Bomb Calorimeter Coal Calorific Value Tester |
| Reference Standards | ISO1716, ASTM D240, ASTM D5865 | Heat Capacity | 10000j/K |
| Bomb Volume | 300+/-50ml | Inner Cylinder Volume | 2000ml |
| Test Time | <15min | Repeatability | 60(J/K) |
| Packing Dimension | 75*65*60cm | Gross Weight | 55kg |
| Power Supply | 220V, 10A, 50Hz | Delivery Lead Time | 10 Days |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. | Language | English |
Product Description

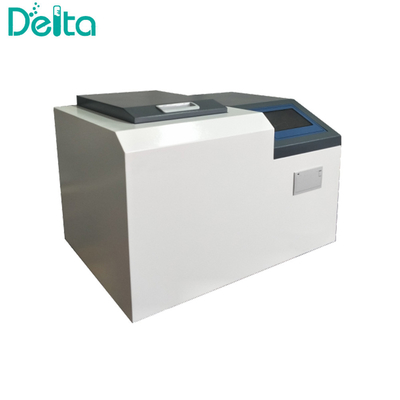

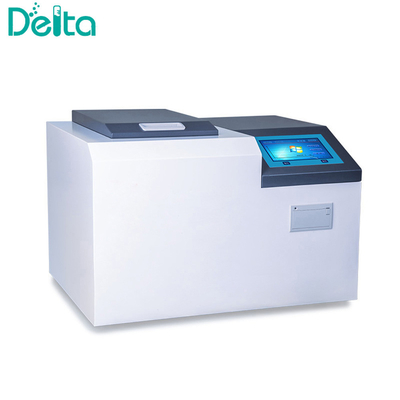

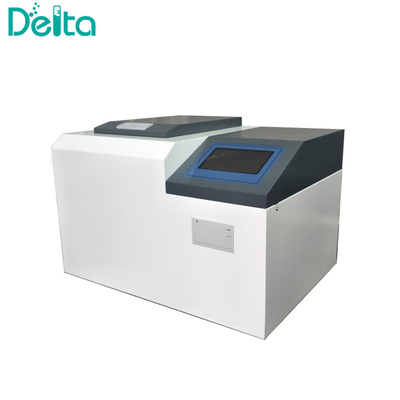

CVT Biomass Oxygen Bomb Calorimeter Coal Calorific Value Tester
Introduction:
- Gross heat of combustion of materials is an important parameter to evaluate building materials heat release and fire base data;
- CVT Building Material Calorific Value Testing ISO1716 Tester is the most common device for measuring the heat of combustion or calorific value of material by putting the specimen into the oxygen cell.
- Our CVT is designed and manufactured as per GB/T14402-2007 and ISO1716 standards, which is suitable for the calorific value of building materials testing.
- CVT Building Material Calorific Value Testing ISO1716 Tester is stable, highly accurate, and easy to operate.
Parameters:
|
Item Name |
CVT Building Material Calorific Value Testing ISO1716 Tester |
|
Heat capacity |
10000J/K |
|
Temperature range |
(4.5-50)ºC |
|
Bomb volume |
300±50ml |
|
Inner cylinder volume |
2000ml |
|
Stirring speed |
375r/min |
|
Stirring power |
3W |
|
Stirring method |
Motor directly inserted into the inner cylinder for mixing |
|
Oxygen bomb sealing |
No leakage under 3.0-3.5MPa |
|
Oxygen bomb withstand pressure |
21MPa |
|
Test time |
<15min |
|
Timer accuracy |
0.5s |
|
Repeatability |
≤60(J/K) |
|
Power supply |
AC220V±10%, 50Hz |
Features:
- Adopt American advanced embedded technology, 7-inch large-screen color touch screen operation, and integral installation method to ensure the firmness of the touch screen.
- CRT Material makes the touch screen more durable.
- Direct operation, without an external computer, which is convenient for use.
- Automatic water injection, no need to adjust the water temperature, just install the aerobic bomb into the barrel, and the instrument can automatically do all tests. With fault diagnosis function and a built-in reminder will remind you whether the ignition is successful.
- Using special foam insulation technology, it is not affected by external temperature during the experiment.
- Heat capacity repeatability≤0.2%, precision <0.1%, temperature resolution 0.0001K.
- Reasonable structure, reliable performance, low failure rate, high precision, easy installation and maintenance
