NF P92-502 503 504 505 Building Material Melting Dripping Tester

  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
  • NF P92-502 503 504 505 Building Material Melting Dripping Tester
Place of Origin Chongqing, China
Brand Name Delta
Certification ISO9001
Model Number NF505
Minimum Order Quantity 1 set Dripping Tester
Price USD1.0 / set
Packaging Details Dripping Tester is packed in wooden case and container
Delivery Time Within 30 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets Dripping Tester / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Quality Low Price Dripping Test Machine Test Standards Nfp 92-503,95/28/Ec,ECE R118 Annex 7
Heat Radiation Flux 30kw/M2 Description Melting Materials Dripping Test Machine
Application Reaction To Fire Complementary Test Application Field Building Material, Rail, Etc.
Dimension 520mm(W) * 650mm(H) * 350mm(D) Gross Weight 29kg
Delivery Lead Time 15 Days Shipping Method By Express Or Air
Trade Term EXW, Fob, DDU, CNF, CIF, Etc. Language English
OEM Service For Free
Leave a Message
Product Description

NF P92-502 503 504 505 Building Material Melting Dripping Tester



Introduction:

NF505 Dripping Tester, in accordance with NF P92-505/ECE R118, is used to determine the melting behaviour of materials under a 500W radiant heat source.



During the NF P92-505 test, a specimen is placed horizontal and exposed to an electric radiator above. A receptacle is positioned under the specimen to collect the resultant drops. Some cotton wool is put in the receptacle in order to verify if any drop is flaming.





Application Field:

  • Building Materials;
  • Rail;
  • Automotive interior;

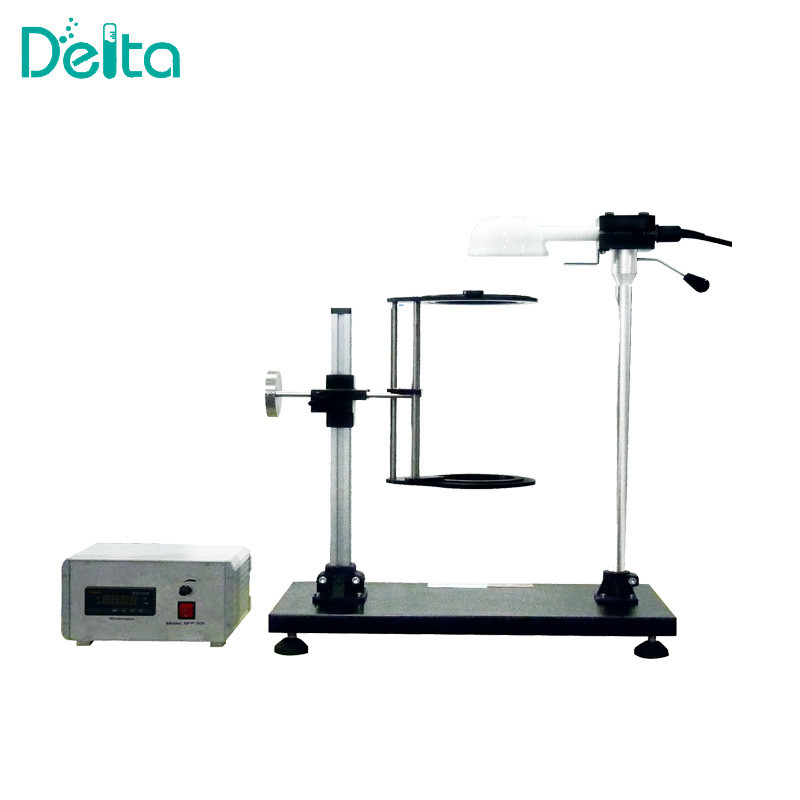

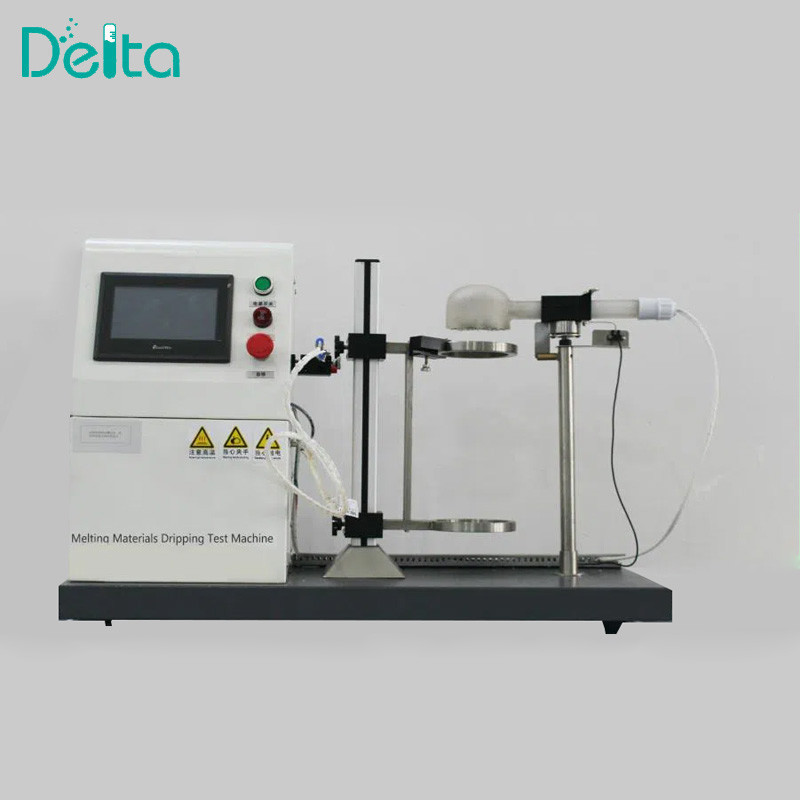

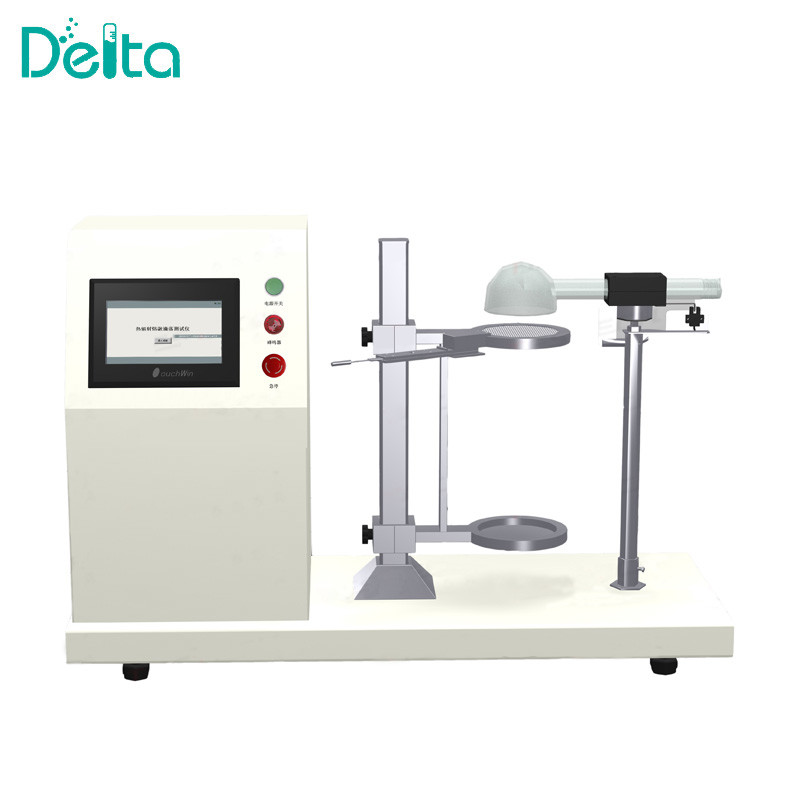

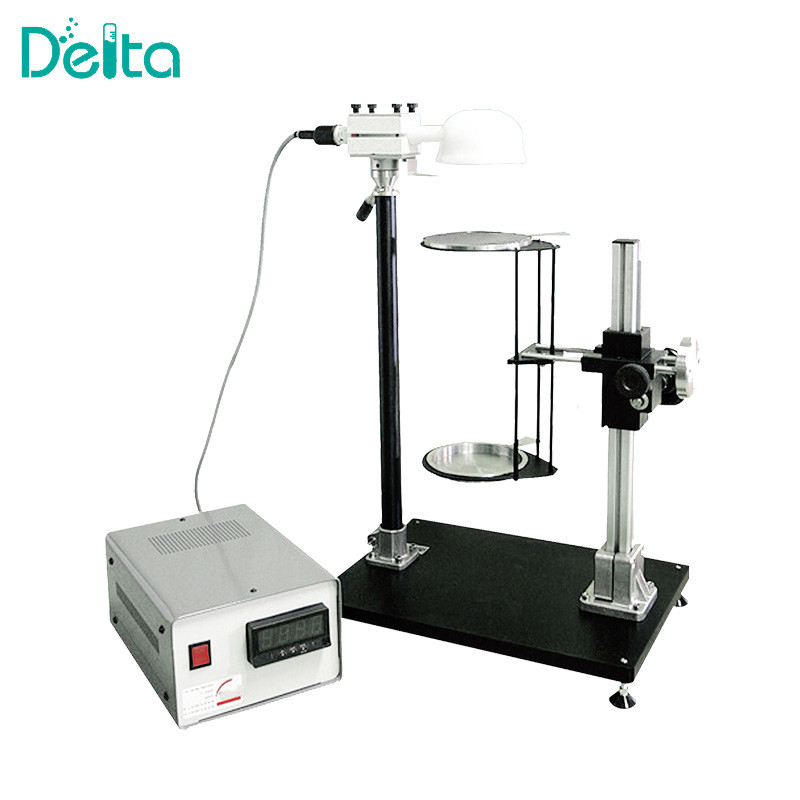

NF505 Dripping Tester consists of:



• France original epiradiator-type heat radiation source, power rated at 500W, which radiant surface is made of a translucent vitreous fused silica disk of 100 mm diameter.



• A movable handle device allows to slightly turn the epiradiator above the specimen or remove it.



• Specimen support stand, with height adjustment function.

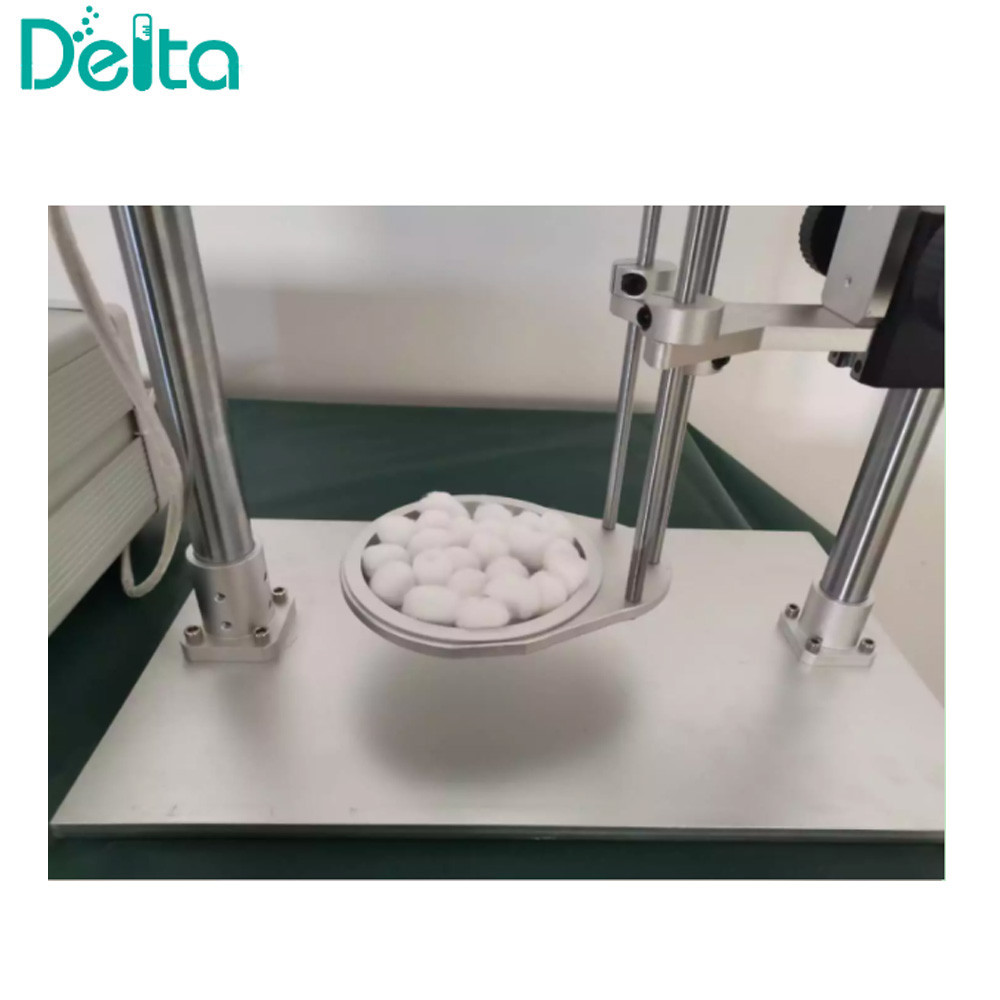

• A receptacle is positioned 300mm under the specimen holder to collect the drops.



• A power control unit for epiradiator radiant rate control.



• Calorimeter in accordance with NF P92-505, for epiradiator calibration.



Water-cooled heat flux meter in accordance with ECE R118 Annex 7, for epiradiator calibration.





Parameters:



No. Item Name NF505 NF-P92-502 503 504 505 Building Material Melting Dripping Tester
1 Dimension 520mm(W) * 650mm(H) * 350mm(D)
2 Weight 29kg
3 Power supply 110 to 230 V 10 Amps
4 Ambient temperature Operating 10°C to 35°C
