UL94-X Good Quality IEC60695-11 Horizontal and Vertical Flame Test Chamber
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | UL94-X |
| Minimum Order Quantity | 1 set Flame Test Chamber |
| Price | USD1.0 / set |
| Packaging Details | Flame Test Chamber is packed in one plywood case. |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Flame Test Chamber / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | UL94 Burning Characteristics & Burning Rate Tester | Reference Standards | ISO 9772, ISO 9773, IEC 60695-11-10: 2013, UL94 |
|---|---|---|---|
| Test Parameters | Flammability, Combustion Speed, Flame Spread, Etc. | Description | UL94 Burning Characteristics&Burning Rate Tester |
| Application | Test Burning Rate Of Cable2 Horizontal Or Vertical | Application Field | Electrical Products, Electrical Manufacturing |
| Burner | Compliance With ASTM D 5025 | Burner Calibration Kit | Conform To ASTM D 5207 |
| Dimension | 950mm(W)*850 Mm(D)*1350 Mm(D) | Gas Supply | Propane Gas Or Methane Gas |
| Power Supply | 110V AC 60Hz / 230V AC 50Hz | Delivery Lead Time | 20 Days |
| Trade Term | EXW, Fob, CIF, CNF, DDU | OEM Service | Yes |
| Language | English |
Product Description

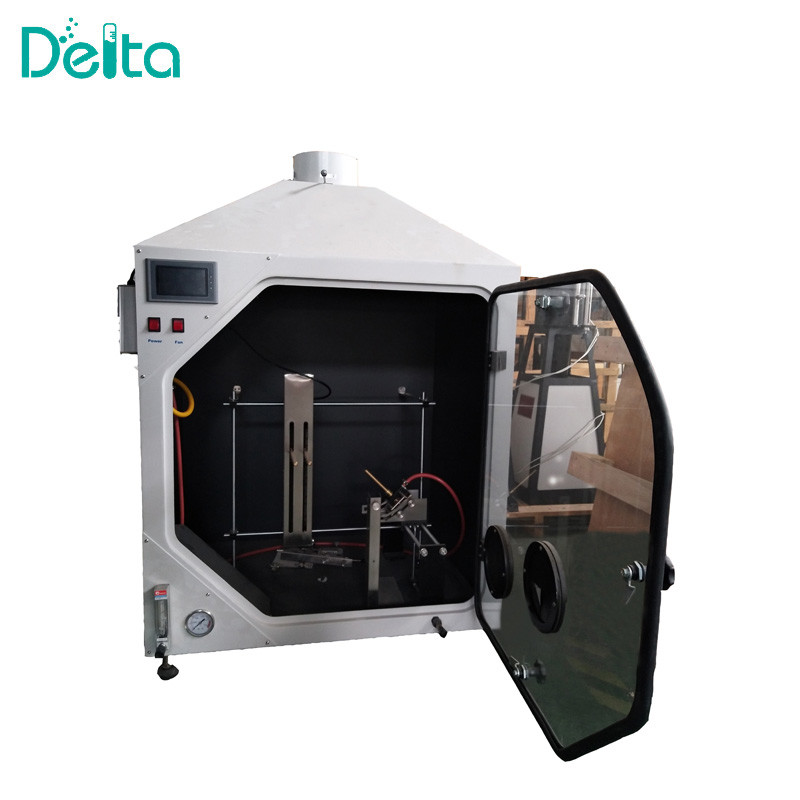

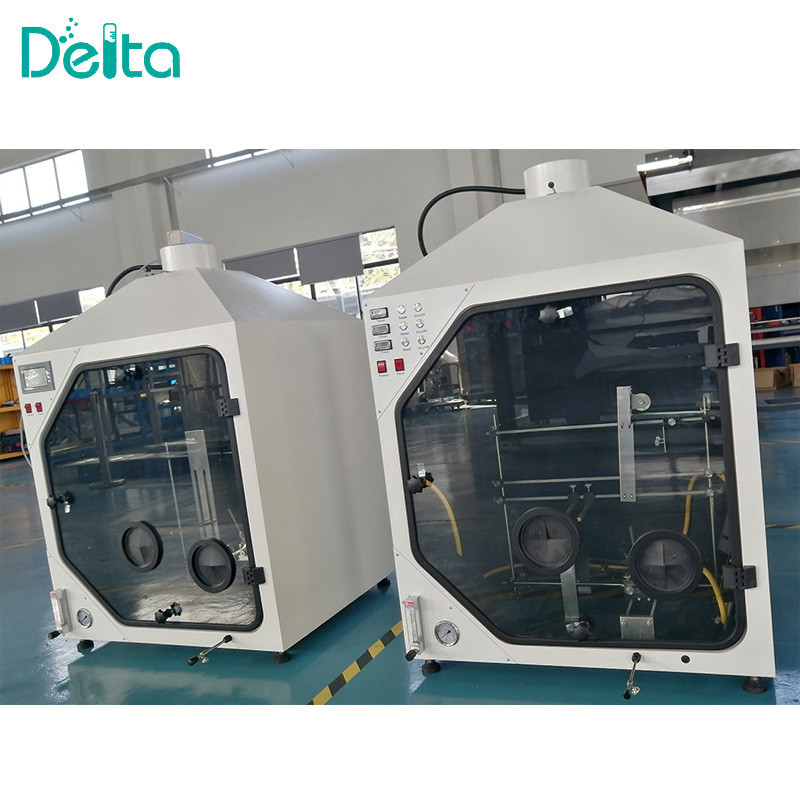

UL94-X Good Quality IEC60695-11 Horizontal and Vertical Flame Test Chamber
Introduction:
- The test is widely applied throughout the industry, especially in electrical manufacturing, where it is widely used for the testing of electrical products.
- The test measures the burning rate of samples positioned either horizontally or vertically.
- Flammability, combustion speed, flame spread, and the intensity of combustion can be acquired during test automatically and precisely;
- It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards. These are:
- Horizontal Burning Test; UL 94HB (ASTM D 635, IEC 60695-11-10, IEC 60707, ISO 1210).
- Vertical Burning Test: UL 94 V-0, V-1, or V-2 (ASTM D 3801, IEC 60695-11-10, IEC 60707, ISO 1210).
- Vertical Burning Test: 5VA or 5VB (ASTM D 5048, IEC 60695-11-20, IEC 60707, ISO 9772).
- Thin Material Vertical Burning Test: VTM-0, VTM-1, or VTM-2 (ASTM D 4804, ISO 9773).
- Horizontal Burning Foamed Material Test: HF- 1, HF-2 or HBF (ASTM D 4986, ISO 9772).
- Burners (ASTM D 5025, ASTM D 5207, ISO 10093, ISO 103351).
Standards:
- ISO: ISO 9772, ISO 9773
- IEC: IEC 60695-11-10: 2013
- UL: UL94
Features:

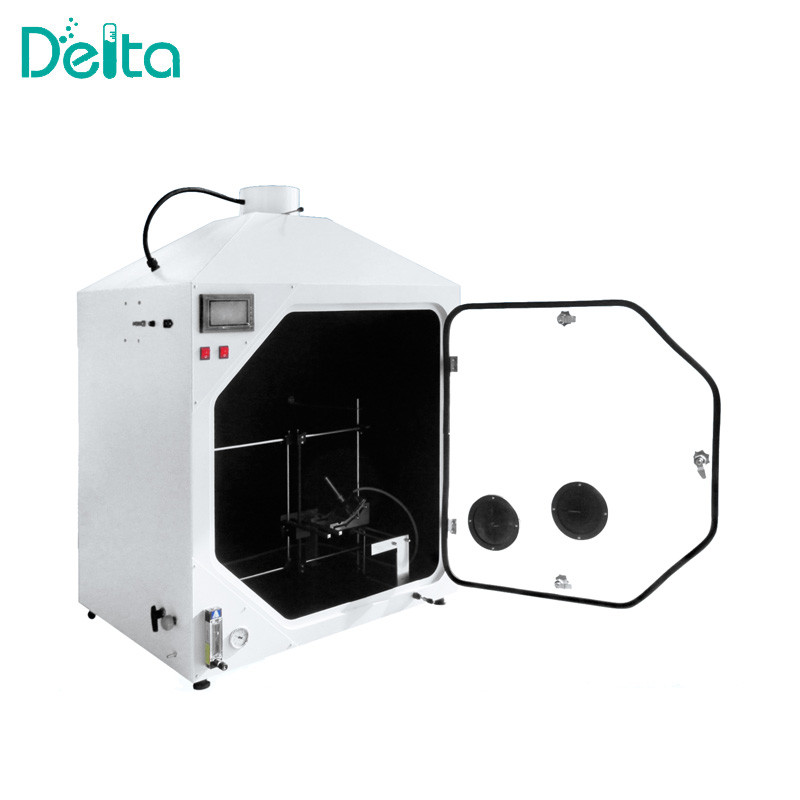

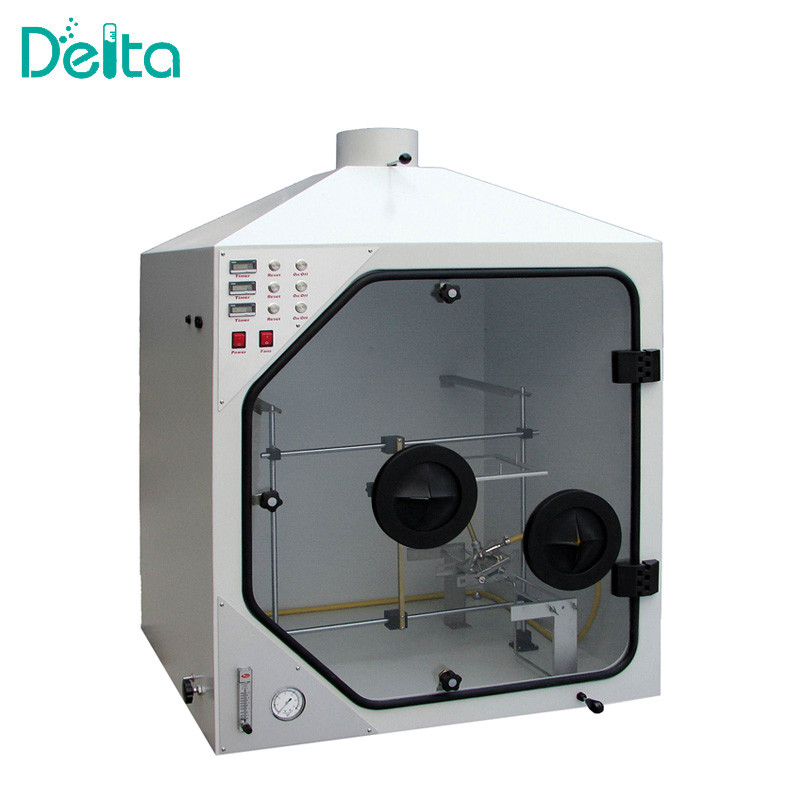

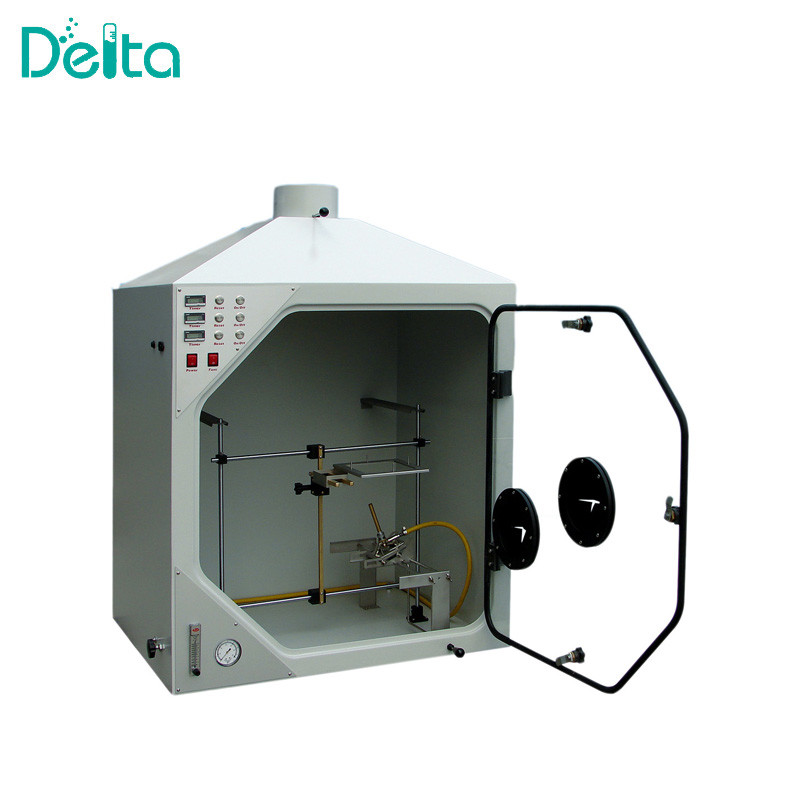

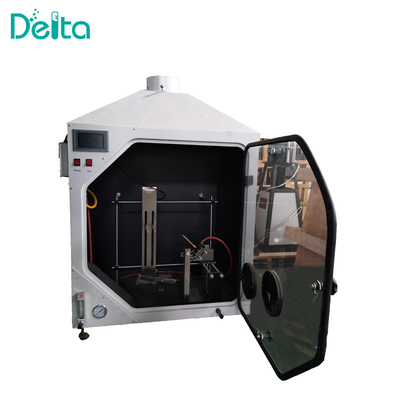

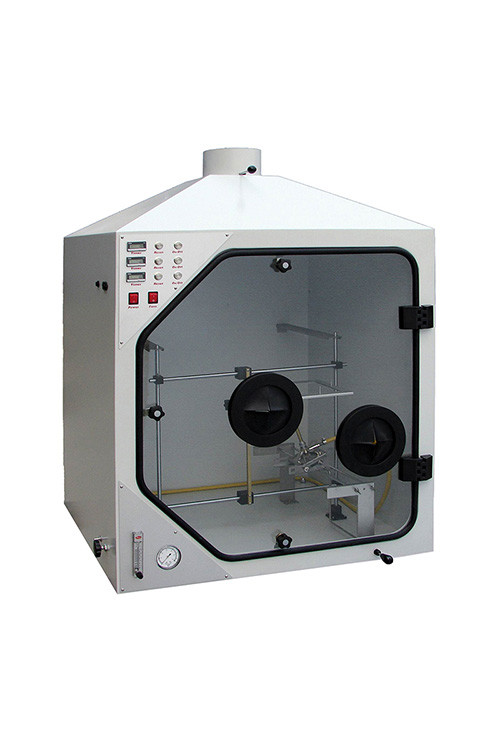

- A bench-mounted draft combustion chamber having a large inside volume of 0.75m3
- Large doors and windows made from toughened safety glass give a generous view of the specimen during a test.

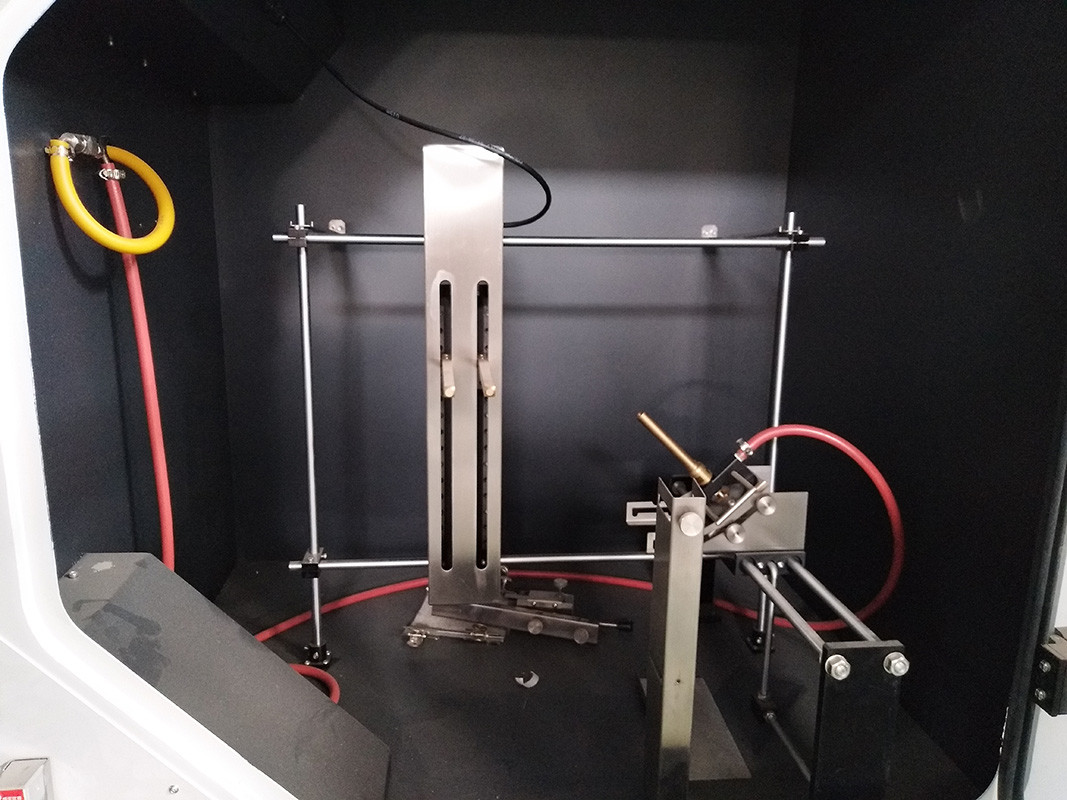

- Fully adjustable horizontal and vertical specimen supports.
- A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator, pressure gauge, U type water column tube.
- Two access ports enable easy entry to the chamber for movement of the burner and specimen.
- Auto Specimen Moving System and one testing timer are convenient for the consumer to use.
- Burner calibration kit, conforming to ASTM D 5207.
Parameters:
| No. | Item Name | UL94-X UL94 Flame Chamber |
| 1 | Dimension | 950 mm (W) x 850 mm (D) x 1350 mm(D) |
| 2 | Weight | 58kg |
| 3 | Power supply | 110V AC 60Hz / 230V AC 50Hz |
| 4 | Ambient temperature | Operating 10°C to 35°C |
| 5 | Gas supply | Propane Gas or Methane Gas |
