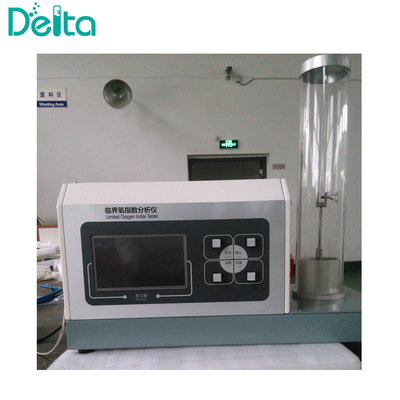

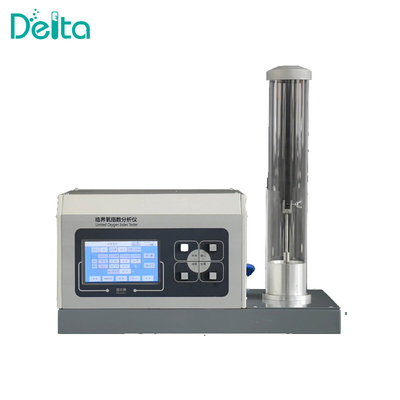

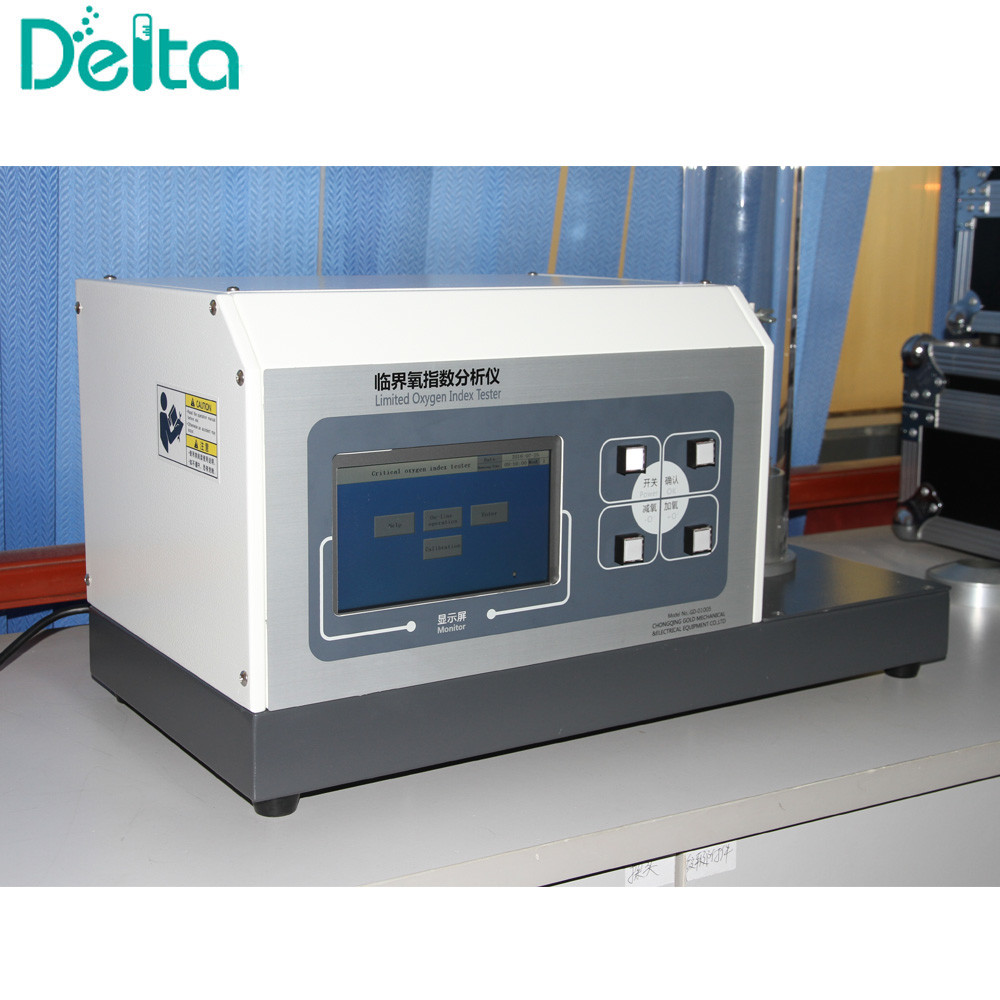

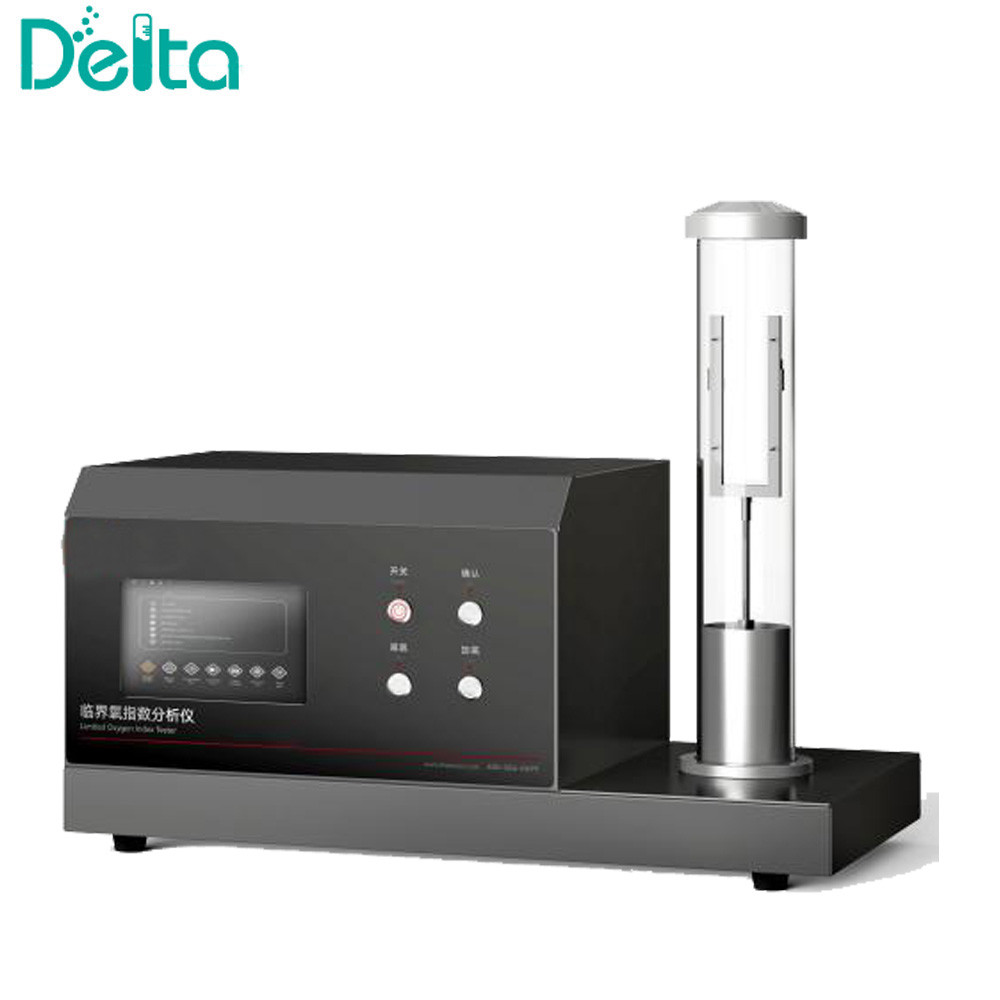

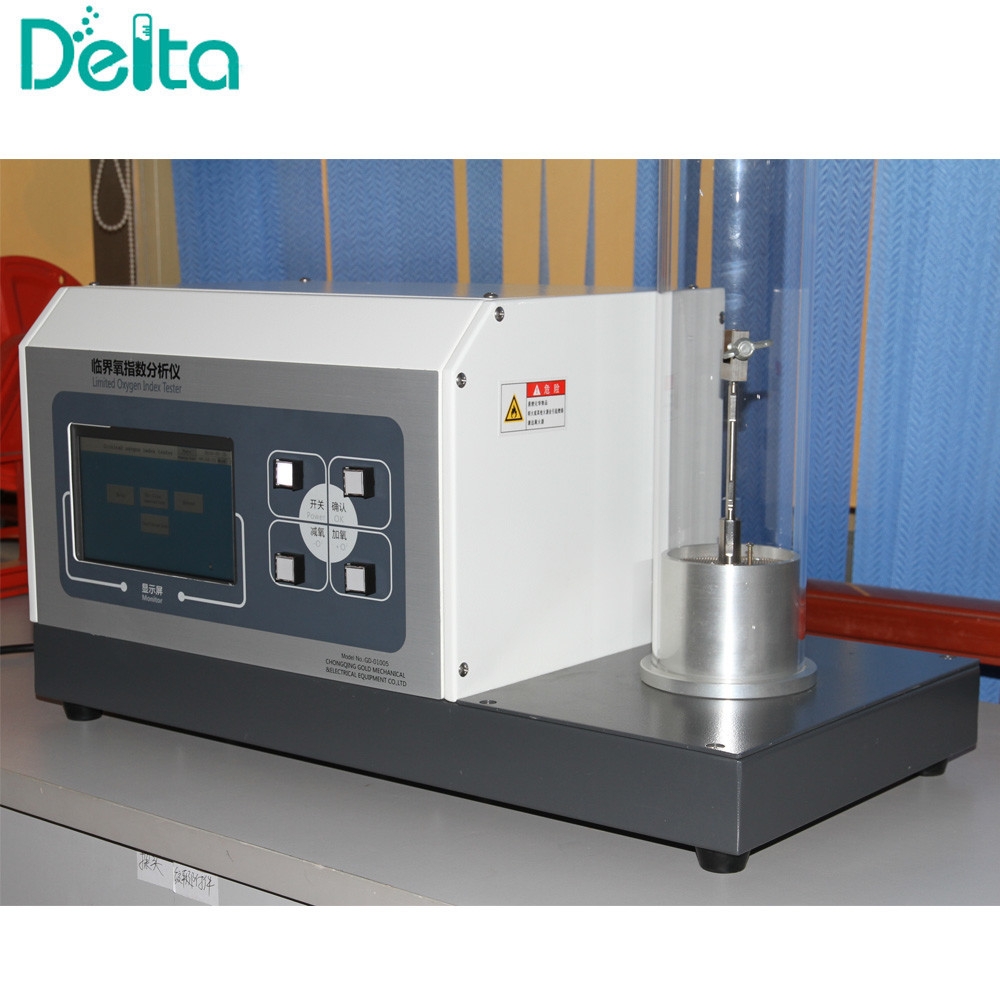

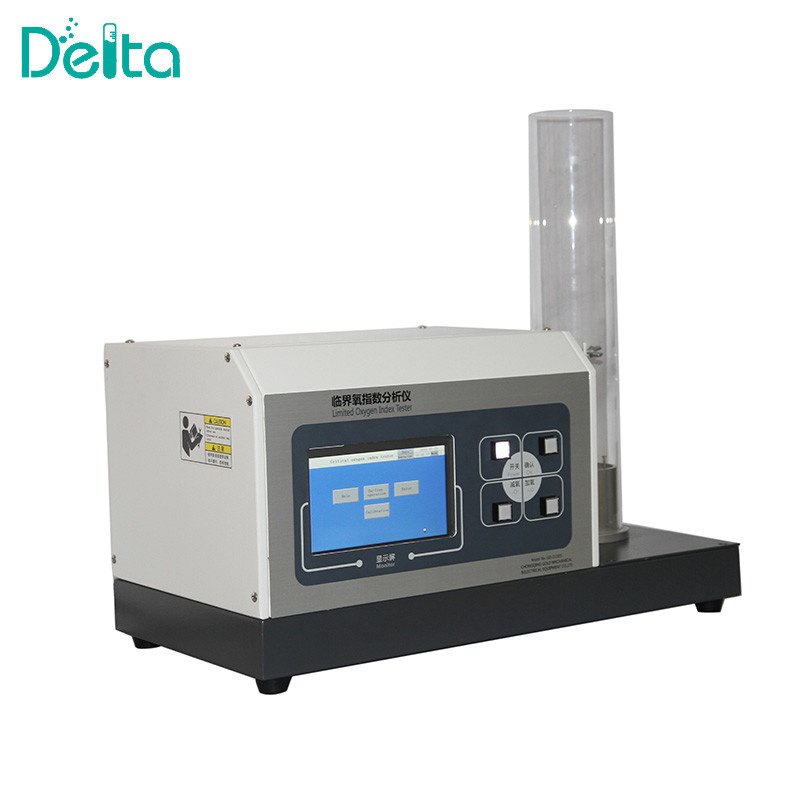

LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer

  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
  • LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
Place of Origin Chongqing, China
Brand Name Delta
Certification ISO9001
Model Number LOI-A
Minimum Order Quantity 1 set LOI Analyzer
Price USD1.0 LOI Analyzer / set
Packaging Details LOI Analyzer is packed in one plywood case.
Delivery Time Within 7 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets LOI Analyzer / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Automatic ASTM D2863 Limited Oxygen Index Analyzer Reference Standards ASTM D 2863, ISO 4589-2, Nes 714
Description LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer Test Method Automatic Paramagnetic Type
Function Oxygen Index Apparatus For Plastic Testing Oxygen Sensor Paramagnetic Type
Application Field Building Material, Cable, Rail, Plastic, Etc. Oxygen Range 0 - 100%
Gas Supplies Oxygen, Nitrogen And Propane Dimension 45cm * 40cm * 60cm
Weight 10kg Power Supply 220V, 50Hz
Delivery Lead Time 10 Days Trade Term EXW, Fob, DDU, CNF, CIF, Etc.
Payment Term 30% T/T As Deposit, The Balance Before Delivery Language English
Operation Through Panel Or Laptop
Leave a Message
Product Description

LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer





Introduction:

It is designed to test combustibility by oxygen concentration, letting the user know the minimum oxygen concentration as necessary for combustion.
The working principle is to place the specimen into the testing chimney, fill it with oxygen and nitrogen into the chimney, burn the specimen, and then measure the minimum concentration of oxygen to support continuous combustion.





Reference Standards:

  1. ASTM: ASTM D2863: Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index).
  2. ISO: ISO 4589-2: Determining the minimum volume fraction of oxygen in admixture with nitrogen will support the combustion of small vertical test specimens under specified test conditions. The results are defined as oxygen index (OI) values.
  3. NES: NES 714.



Parameters:



No. Item Name LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer
1 Size 450 mm (W) x 400 mm (D) x 600 mm (H)
2 Weight 10kg
3 Power Supply 115 Volts AC 60Hz / 230 Volts AC 50Hz
4 Gas Supplies Oxygen, Nitrogen and Propane
5 Oxygen Sensor Range:0 to 100% Oxygen
6 Oxygen concentration sensor England Servomex Paramagnetic type oxygen sensor, accuracy: +/-0.1%





Features:

  1. Adopts England's original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
  2. The sensor is better than the traditional electrochemical sensor because it doesn't need to change the oxygen battery, so, it has a long lifetime more accuracy, and a faster response time.
  3. Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;
  4. Equipped with high-temperature quartz glass tank;
  5. Equipped with supported and unsupported sample clamps;
  6. Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
  7. Digital setting N2 and O2 concentration;

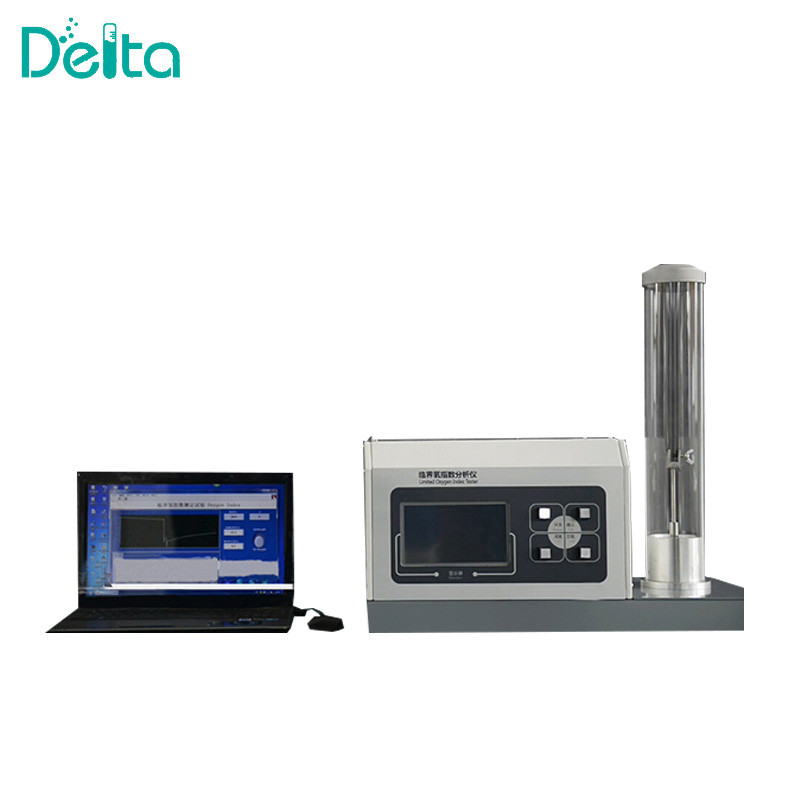

  8. Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;
  9. Reserve a calibration port to calibrate the sensor;
  10. Stainless steel air channel design, equipped with one-way fire-resistance valve, magnetic valve, and fine filter, so, it is stable and safe;
  11. Patented design gas mixing chamber, which ensures the gases can mix in a short time, and data is more accurate;
  12. Resolution: 0.1%
  13. Accuracy: +/-0.2%
  14. Response time: <300ms
  15. Oxygen stability time: <30s

LOI-A Fully Automatic ASTM D 2863 Limited Oxygen Index LOI Analyzer 0

Limited Oxygen Index Tester Series:

Limited Oxygen Index Tester Series.jpg



  1. OI Electro-chemistry Limited Oxygen Index Tester

  2. LOI Electro-chemistry Limited Oxygen Index Tester

  3. COI Paramagnetic Limited Oxygen Index Analyzer

  4. LOI-A Automatic Limited Oxygen Index Analyzer
