SIT En ISO11925-2 Direct Single Flame Source Testing Flammability Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SIT |
| Minimum Order Quantity | 1 set Flammability Tester |
| Price | Negotiable |
| Packaging Details | Flammability Tester is packed with standard plywood case |
| Delivery Time | In 30 days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 1000 sets Flammability Tester per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SIT ISO 11925-2 Direct Single Flame Source Testing Flammability Tester | Application | Reaction To Fire Tests — Ignitability Of Products Subjected To Direct Impingement Of Flame |
|---|---|---|---|
| Referemce Standard | ISO11925-2, DIN 53438, EN 13501, IEC 61730-2:2016 | Color | White Or As Requested |
| OEM Service | Available | Power Supply | 220V, 50Hz Or As Requested |
| Size | 850 Mm (W) X 450 Mm (D) X 800 Mm (H) | Weight | 24kg |
| Warranty | One Year |
Product Description
`SIT En ISO11925-2 Direct Single Flame Source Testing Flammability Tester
Introduction:
-
SIT Direct Single Flame Source Testing Flammability Tester is designed and manufactured by DIN 53438 & ISO 11925-2 standards.
-

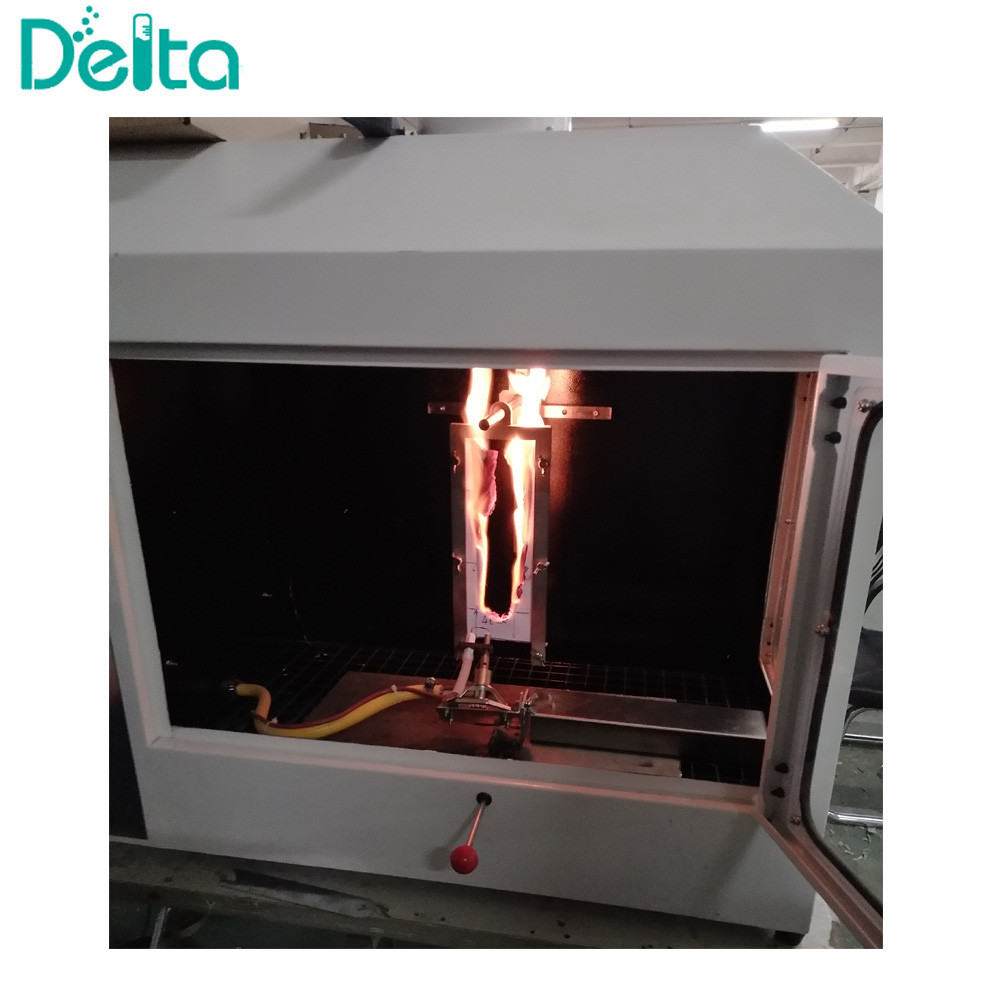

SIT Direct Single Flame Source Testing Flammability Tester uses the German Kleinbrenner principle to determine the combustion properties of building materials under direct impact from a small vertical flame. It is applicable to building material categories of B, C, D, E, Bfl, Cfl, Dfl and Efl testing.
-
SIT Direct Single Flame Source Testing Flammability Tester also meets DIN 4102-Part 1-Class B2 test requirements.
Features:
-

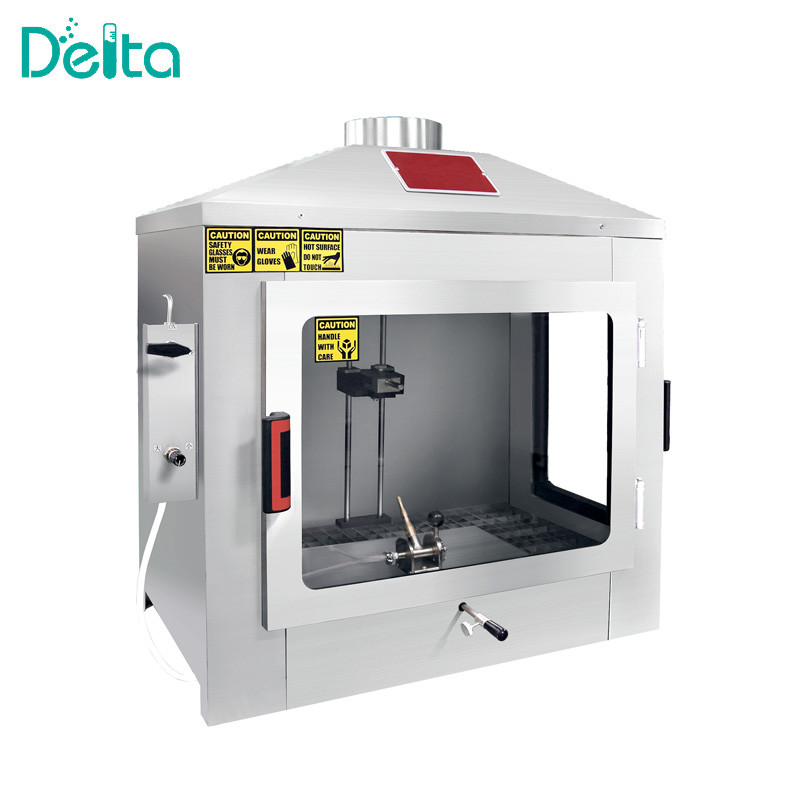

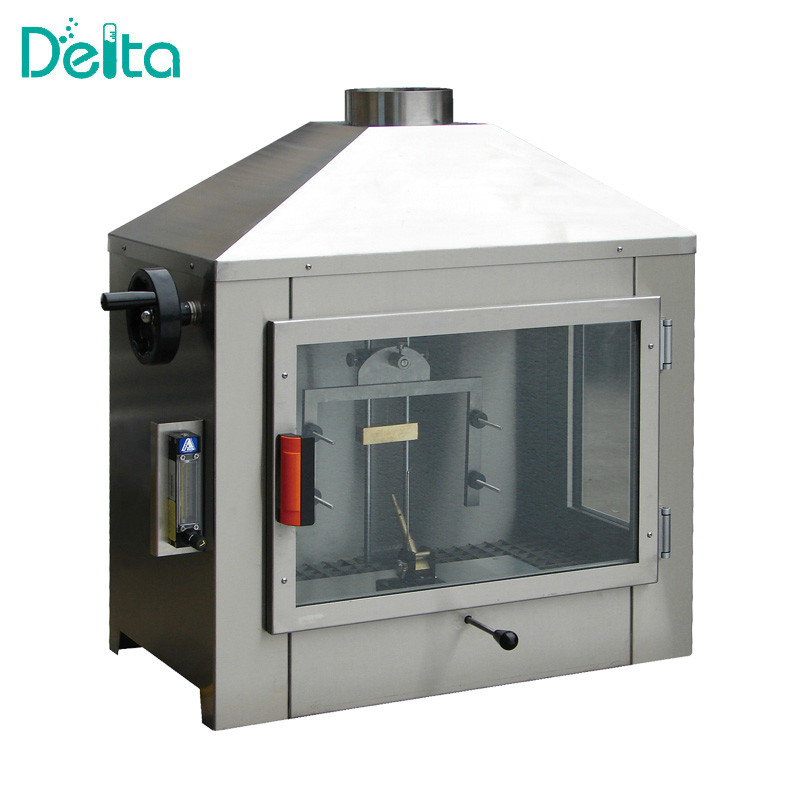

The combustion chamber is made from corrosion-resistant stainless steel, to maximize operating life.
-
SIT Direct Single Flame Source Testing Flammability Tester has large front and side doors for easy access. These are glazed with toughened glass for a full view of the specimen during a test.
-

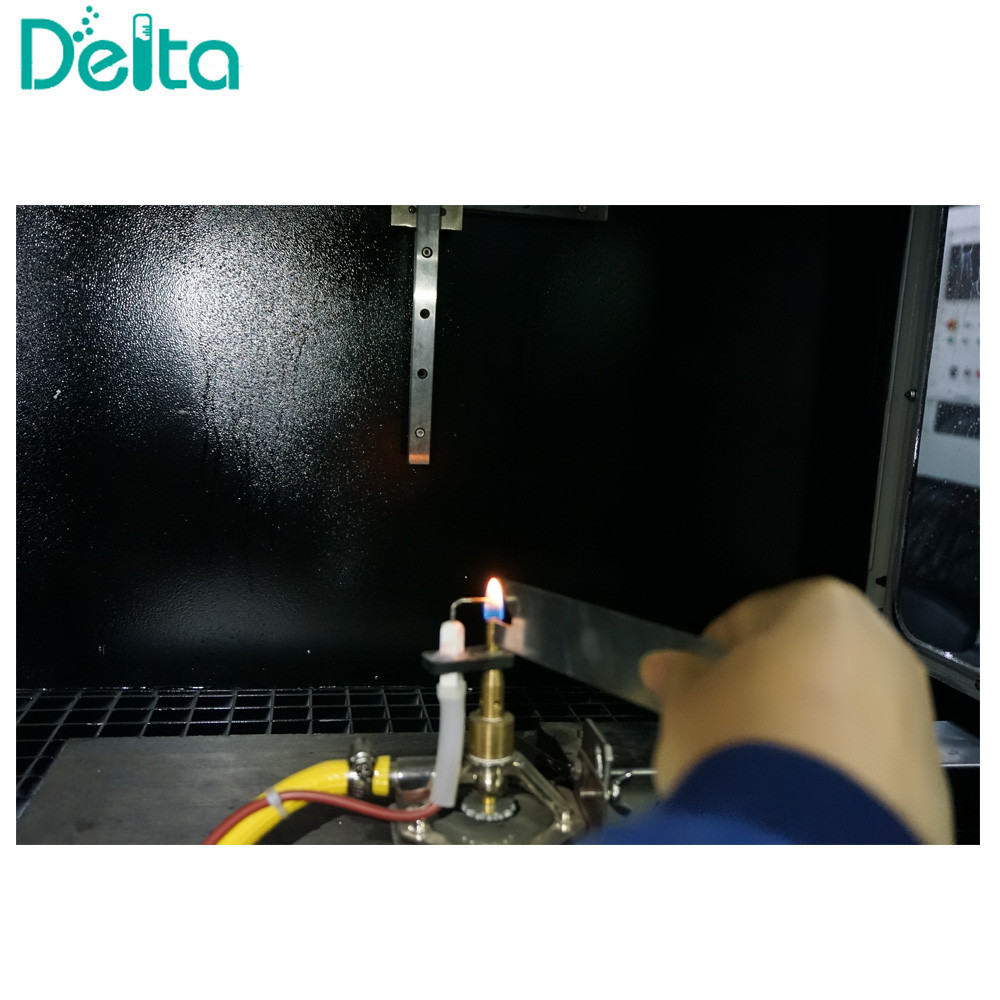

An extensively adjustable burner assembly, mounted on runners, enables the small premixed flame to be tilted at an angle of 45 degrees to the specimen and offered to it in one fluid movement.
-
Specimen holder capable of housing the specimens up to and including 60 mm thick.
-
A fully adjustable specimen support frame facilitating lateral movement of the specimen holder so that the flame can be applied either at the specimen centre position, or at laterally spaced points.
Available Options:
| No. | Available Options |
| 1 | Multilayer specimen holder |
| 2 | Loose fill specimen holder |
| 3 | Anemometer 0-10 m/s range |
| 4 | Timing device with 0.2 sec divisions |
| 5 | Pressure reducing valve: Between 10 kPa and 50 kPa |
Parameters:
| No. | Item Name | SIT Direct Single Flame Source Testing Flammability Tester |
| 1 | Dimension | 850 mm (W) X 450 mm (D) X 800 mm (H) |
| 2 | Weight | 24kg |
| 3 | Power supply | 110V AC 60Hz / 230V AC 50Hz, 10A |
| 4 | Ambient temperature | 10 ~ 35 Centigrade |
| 5 | Gas Supply | Propane with a minimum purity of 95% |
