Ncf Non-Combustibility Tester En ISO1182 Vertical Tube Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | NCF |
| Minimum Order Quantity | 1 set ISO1182 Vertical Tube Furnace |
| Price | USD1.0 / set ISO1182 Vertical Tube Furnace |
| Packaging Details | Ncf Non-Combustibility Tester En ISO1182 Vertical Tube Furnace packed in veneer case. |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 sets ISO1182 Vertical Tube Furnace per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | EN ISO1182, BS476-4 Standard, Good Design, High Quality, Low Price BS476-4 Non-combustibility Apparatus | Item Name | Ncf Non-Combustibility Tester En ISO1182 Vertical Tube Furnace |
|---|---|---|---|
| Function | For Noninflammable Material Non-combustibility Testing | Application Field | Building Material, Rail |
| Reference Standards | ISO1182, KS F 2271 | Control Method | Computer Control |
| Dimension | 530 Mm (W) × 270 Mm (D) × 280 Mm (H) | Weight | 65kg |
| Packing Mode | Veneer Case | Warranty Period | 1 Year |
| Service | Installation And Commissioning Service Is Available |
Product Description
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace
Introduction:
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is designed and manufactured in accordance with EN ISO1182 standard, it is mainly for building products testing.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is mainly used in the non-combustibility test for building materials, and is suitable for classification of combustion performance of Class A fireproof materials.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is also comply to BS 476-4 & 11 and IMO FTP Part 1 standards. So it can also test UK building materials, railway materials and non-metallic products of vessel.
NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace is suitable for both composite products and materials of the components testing.
Features:
- NCF Non Combustion Test Equipment Real Picture: measures in-combustibility and combustibility of uniform building material and non-uniform building material of actual element.
- The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.
- Single Zone Furnace operable at up to 900 oC with the Kanthal Ribbon Heater.
- 750±5oC temperature automatically control by PID and Power controller.
- Provided with stabilized voltage supply for more quick temperature stabilization.
- Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.
- 360 degree rotatable and height adjustable thermocouple scanning device.
- Inner furnace thermocouple device to calibrate the temperature of furnace.
- Testing results include Mass Loss(g) and Rate(%) ,Ignition Time(s) and Sustained Flaming(s) ,Initial & Maximum Furnace Temperature(oC) ,Final Furnace Temperature(oC) ,Maximum Specimen Center Temperature(oC) ,Final Specimen Center Temperature(oC) ,Furnace Temperature Rise(oC) ,Specimen Center & Surface Temperature Rise(oC).
Parameters:
| No. | Item Name | NCF Non-Combustibility Tester En ISO1182 Vertical Tube Furnace |
| 1 | Dimension |
Furnace: 400 mm (W) x 400 mm (D) x 1200 mm (H)
Control Unit: 530 mm (W) × 270 mm (D) × 280 mm (H) |
| 2 | Weight | 65kg |
| 3 | Power supply | 110V AC 60Hz / 230V AC 50Hz, 10A |
| 4 | Ambient temperature | Operating 10°C to 35°C |

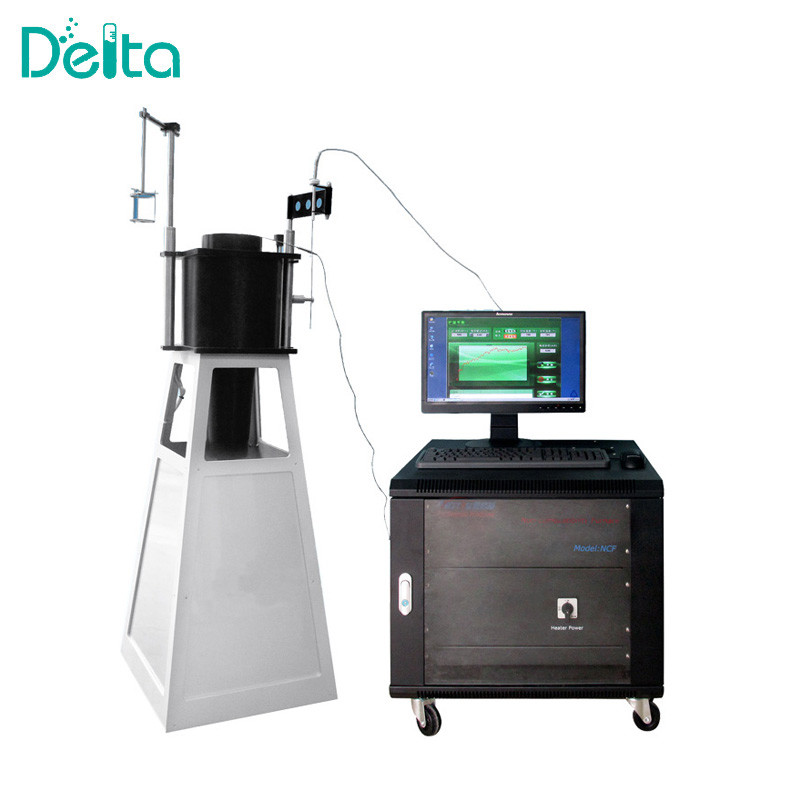

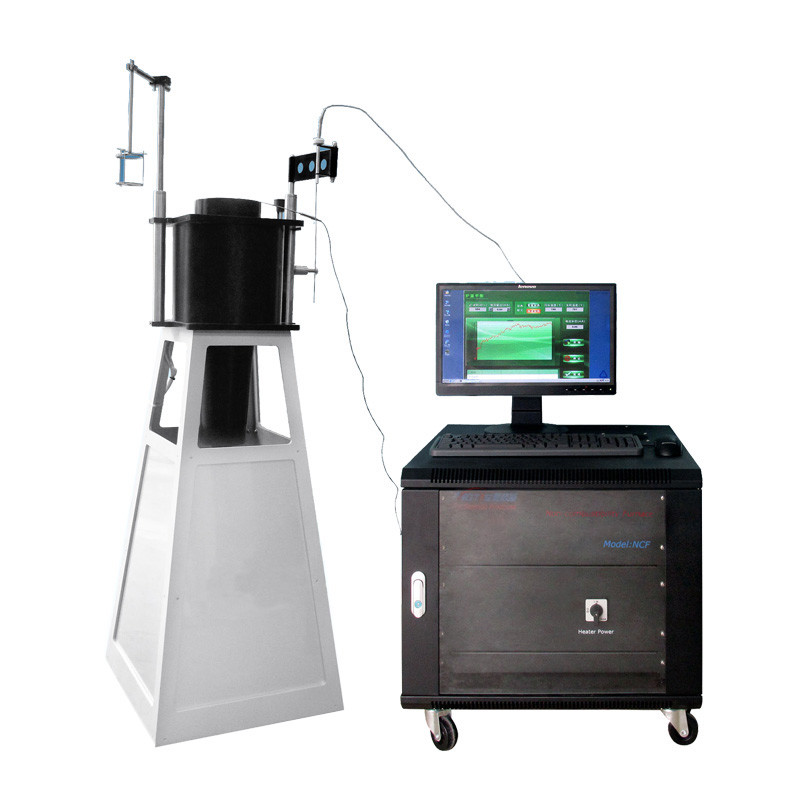

NCF Vertical Tube Furnace Real Picture:
