NF P92-503 Building Material Fire Retardant Level Fire Tester

Place of Origin China Mainland
Brand Name Delta
Certification ISO9001
Model Number NF P92-503
Minimum Order Quantity 1 set
Price USD1.0 / set
Packaging Details NF P92-503 Building Material Fire Retardant Level Fire Tester is packed in a plywood case.
Delivery Time Within 30 days after the order is confirmed
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 sets / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Reference Standard NF P 92-503 Application Measure The Fire Retardant Level And Reaction
Electrical Burner France Original Heat Radiation 500W
Non-Combustible Plate 300mm*180mm Equipment Type Fire Testing Equipment
Language English OEM Service Available
Name NF P92-503 Building Material Fire Retardant Level Fire Tester
Leave a Message
Product Description

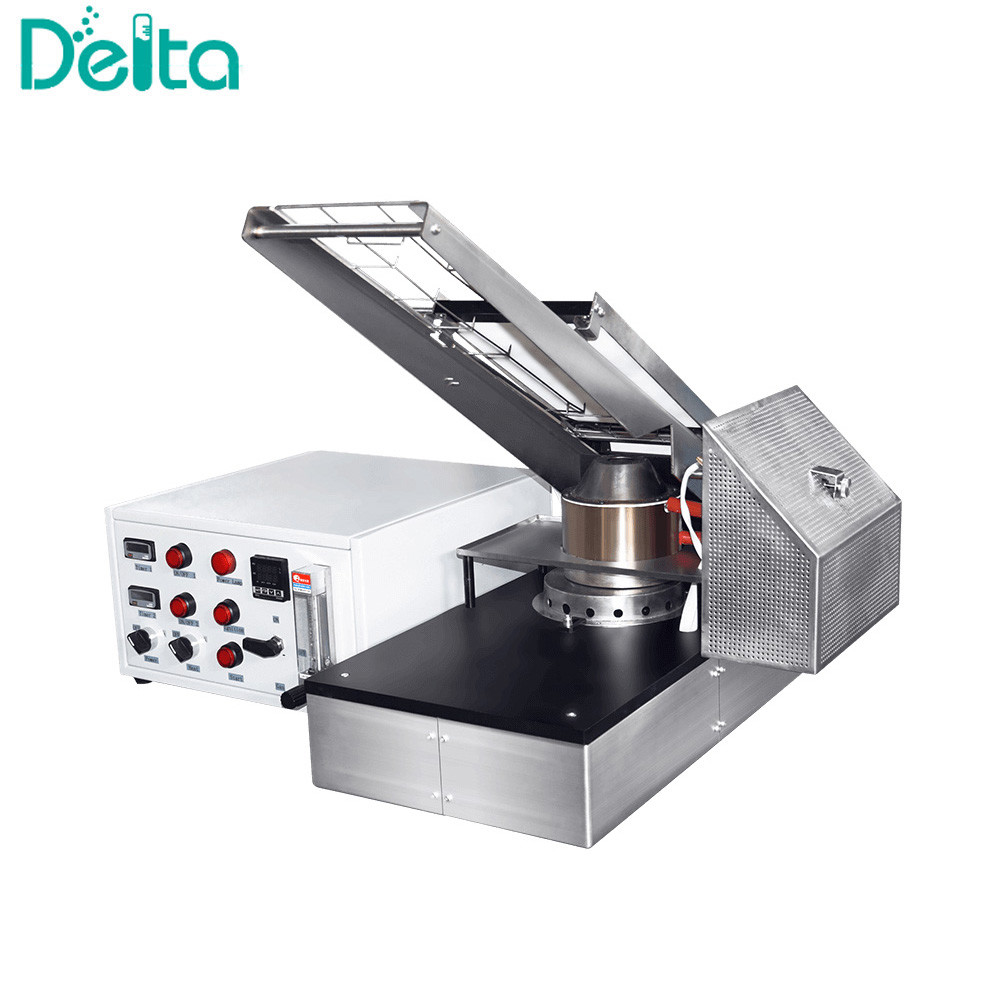

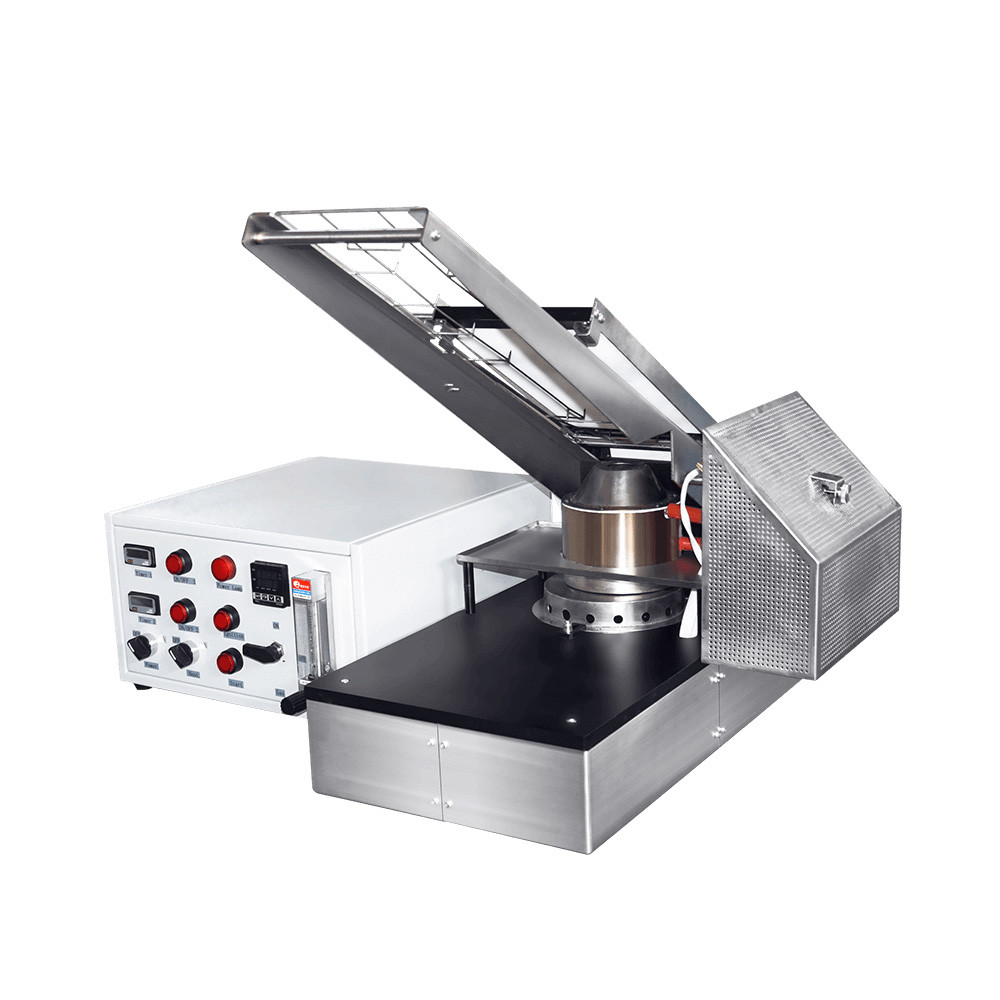

NF P92-503 Fire Tester For Building Material Fire Retardant Level

Brief Introduction:
The NF P92-503 Fire Tester For Building Material Fire Retardant Level, in accordance with NF P 92-503, is designed to measure the fire retardant level and reaction to fire of flexible materials such as drapes, curtains, tight fitting decorative fabrics or wall covering. And also measure the burning behavior of materials which is possible to make an essential contribution to preventative fire safety and reduce the risk of fire in buildings.


NF P92-503 Fire Tester Consists of:

  • France original electrical burner, providing standard 500w heat radiation.
  • The electrical burner consists of a ceramic inner core and a heating resistor with a ceramic inner core height of 130mm and a top opening diameter of 31mm.
  • A Power controller controls the radiation output, with adjustable electric heater power and numerical display of power.
  • The support base and specimen holder are made of stainless steel, with the specimen holder facing the electric burner and the two arms at an angle of 30° to the horizontal.
  • The standard burner is made of stainless steel with a nozzle head 30 mm wide with a 3 mm opening, providing a stable disc-shaped ignition flame source.
  • The burners can be freely rotated to the appropriate position.
  • High precise needle valve and float meter to control the propane gas flow.
  • Provides a timing device for recording the test time to apply the pilot flame.
  • Stainless steel sample holder, 600 mm long and 160mm wide.
  • Standard non-combustible plate, 300mm*180mm in size.
  • Standard copper disc calorimeter for calibration of the electric burner.
  • The copper disc calorimeter is 30mm in diameter and 5mm in thick which is oxygen-free copper and the copper disc is set in a refractory plate, the surface of the copper disc is coated with black paint with an absorption rate of 0.96; the back of the disc is soldered with a 0.5mm diameter type K thermocouple for temperature measurement.
  • Provides support stand for the copper disc calorimeter to be positioned on the electrical burner during the calibration, the copper disc calorimeter is coaxial with the electric burner and 30mm apart on the support stand.
