UL2054 Battery Safety Testing Battery Flame Resistance Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | UL2054 |
| Minimum Order Quantity | 1 set Battery Flame Resistance Tester |
| Price | USD1.0 / set Battery Flame Resistance Tester |
| Packaging Details | Battery Flame Resistance Tester is packed in one plywood case. |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reference Standard | IEC60086-4,UL1642,UL 2054 | Function | Measure The Flame Resistance Of The Battery |
|---|---|---|---|
| Application Field | Electric And Other Industry | Description | Battery Combustion Jet Test Equipment By IEC60086 |
| Burning Angle | 0,45,90 Degrees | Lenght Of Burner | 100mm |
| Test Cover | Width610mm*Depth 355mm | Height Of Test Cover | 305mm |
| Test Aluminum Mesh Diameter | 0.010 Inch (0.25mm) | Language | English |
| OEM Service | Available | Delivery Lead Time | Please Confirm It With Us |
| Packing | In Plywood Case | Shipping Method | By Air Or Sea |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. |
Product Description

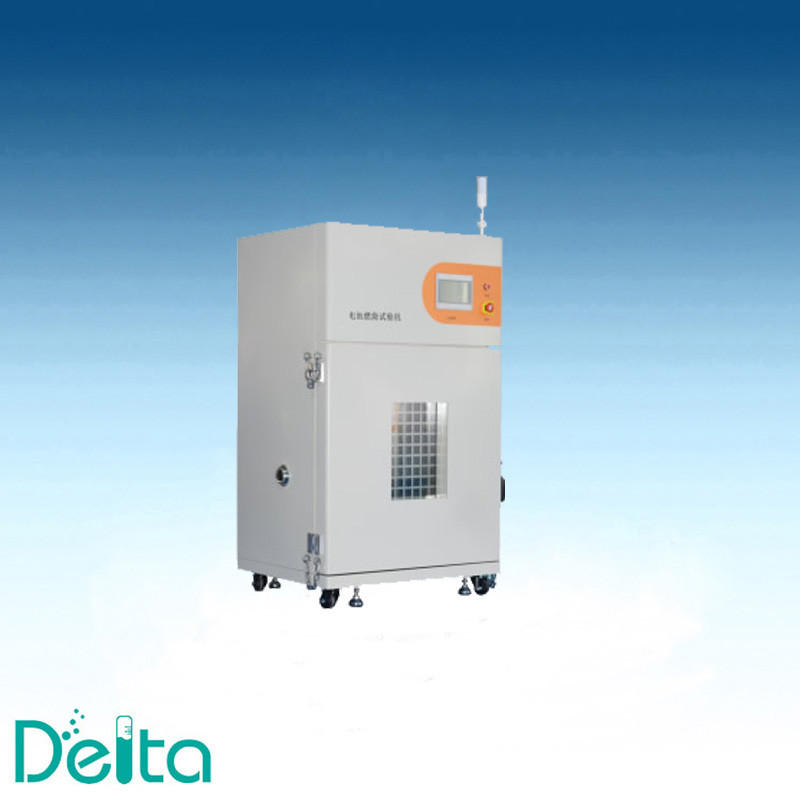

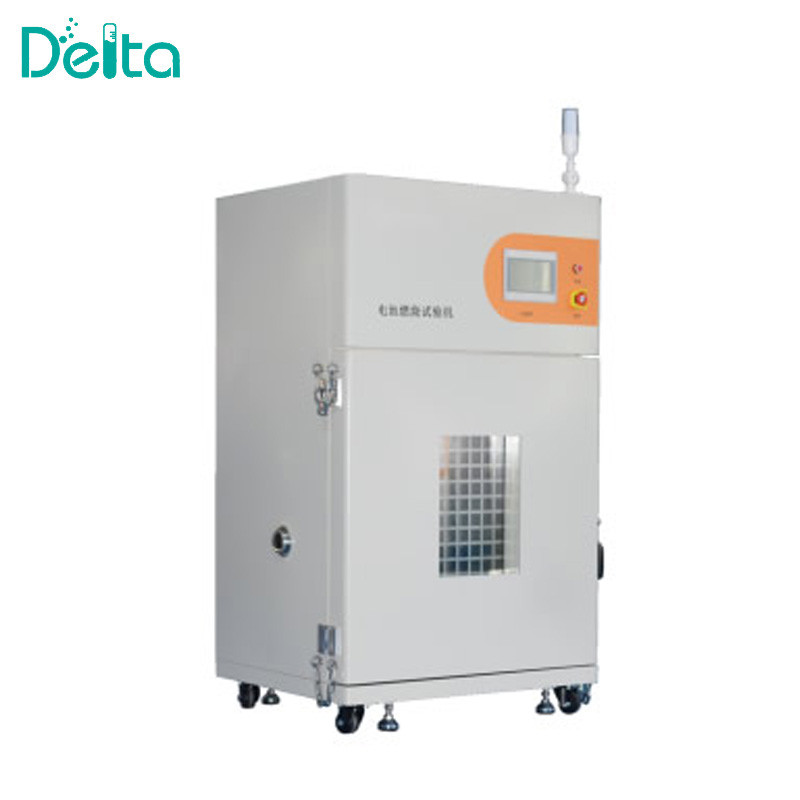

UL2054 Battery Safety Testing Battery Flame Resistance Tester
Introduction:
The UL2054 Battery Safety Testing Battery Flame Resistance Tester is mainly used to test the flame resistance of the battery.
The principle is to place the battery on a flame resistant and high temperature resistant mesh screen (the mesh screen has 20 holes every 25.4mm, and the diameter of the steel wire is 0.43mm), and then light the burner below it (38.1mm above the top of the burner).
At the same time, observe the battery combustion until the battery explodes or burns down, and time the combustion process.
Product Parameters:
| No. | Item Name | Battery Combustion Jet Test Equipment by IEC60086-4,UL1642,UL 2054 |
| 1 | Burner | Inner diameter of pipe orifice is 0.375 inch (9.5 mm) and length is about 100 mm |
| 2 | Bunsen burner | can adjust the burning angle of 0-45-90 degrees and is equipped with corresponding angle indicator |
| 3 | Flame application time | 0~99.9 seconds ± 0.1 seconds |
| 4 | Flame height | 10~75 ± 2mm (adjustable) |
| 5 | Ignition device | Automatic ignition |
| 6 | Width of test cover | 610mm X depth 355mm, octagonal (use double-layer mesh holder to realize rapid replacement of aluminum mesh |
| 7 | Height of test cover | 305mm |
| 8 | Test aluminum mesh diameter | 0.010 inch (0.25mm) 16 mesh × 16 mesh |
| 9 | Surface diameter of test round hole | 102mm |
Reference Standards:
IEC60086-4:2000;
UL1642:1995);
UL2054:1997);
UL1642 [13];
GB8897.4-20026.3.2.9;
GB312412014
