HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | HFT |
| Minimum Order Quantity | 1 set Automotive Interior Horitonal Flame Tester |
| Price | USD1.0 |
| Packaging Details | HFT Automotive Interior Horitonal Flame Tester is packed in plywood case. |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO3795 Standard Automotive Interior Horitonal Flame Tester | Item Name | HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester |
|---|---|---|---|
| Description | HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester | Reference Standards | Federal Motor Vehicle Interior Flammability Tester Fmvss 302,FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132 |
| Application | Automotive Interior Horitonal Flame Tester | Application Field | Automotive Interior |
| Gas Supply | Propane | Dimension | 430 Mm (W) X 310 Mm (D) X 360 Mm (H) |
| Weight | 12kg | Power Supply | 220V, 50Hz |
| Warranty | 1 Year | Condition | Totally New |
| OEM Service | Free Of Charge |
Product Description
HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester
Introduction:
EC Directive 95/28/EC relates to the burning behavior of materials used in the interior construction of certain categories of motor vehicles, and is intended to ensure that they meet fire safety standards.
95/28/EC fire test to interior material of motor vehicle to determine the Characteristic of Burning: Horizontal Burning Behavior, Vertical Burning Behavior and Burning Dropping.
HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester can be used for determining the horizontal burning rate of motor vehicle materials.
Features:
- HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester is suitable to determination for flammability, after burning, flame resistance and burning speed in car organic materials.
- Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.
- Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
- Automated control of timing and gas supply.
Specifications:
| No. | Item Name |
HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester |
| 1 | Application field | Automotive Interior |
| 2 | Reference standards | FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132 |
| 2 | Dimension | 430 mm (W) x 310 mm (D) x 360 mm (H) |
| 3 | Weight | 12kg |
| 4 | Power supply | 230 volts Nominal 10 Amps |
| 5 | Ambient temperature | Operating 25±5℃ |
| 6 | Gas supply | Propane |

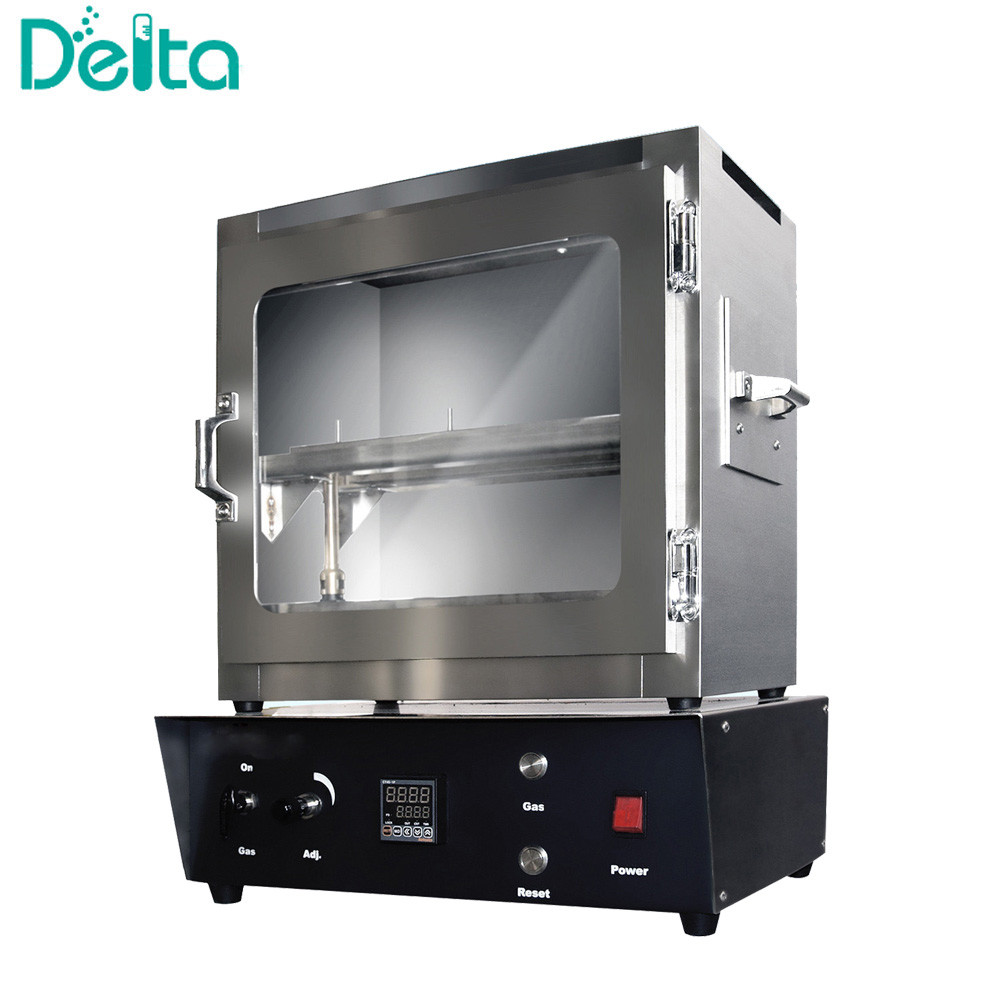

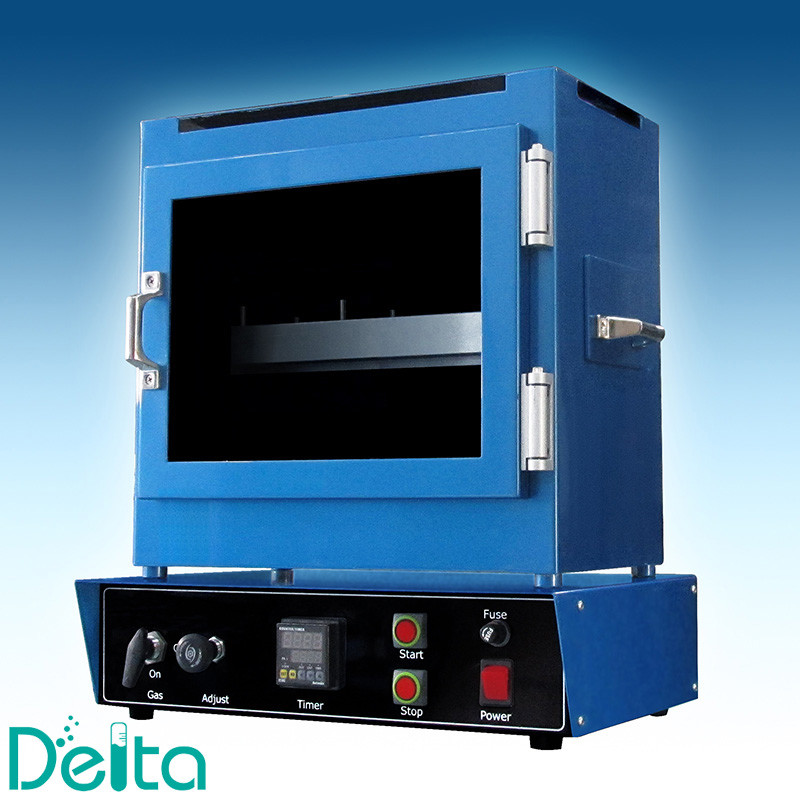

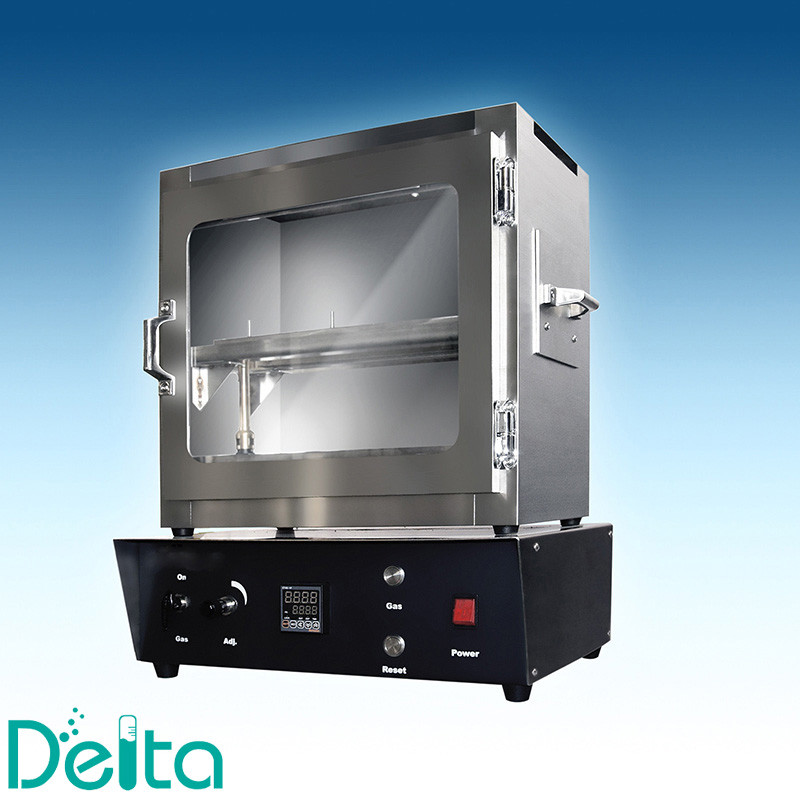

HFT ISO3795 FMVSS 302 Automotive Interior Horitonal Flame Tester Real Pictures:
