CTI Solid Insulating Materials IEC60112 Tracking Indices Tester
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CTI |
| Minimum Order Quantity | 1 set |
| Price | USD1.0 / set |
| Packaging Details | Packed in wooden case |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | IEC60112 Comparative Tracking Indices Tester | Reference Standards | IEC 60112, ASTM D 3638-12, UL746A |
|---|---|---|---|
| Application Field | Electrical Industry | Function | Test Proof&Comparative Tracking Indices |
| Test Object | Solid Insulating Materials | Description | Material Comparative Tracking Indices Tester |
| Dimension | 630mm(W) * 390mm(D) * 750mm(H) | Electrode Material | Electrode Tip - Platinum Metal (Platinum) |
| Electrode Pressure | 1.0n | Electrode Distance | 4.0mm |
| Power Supply | 230 Volts Nominal 10 AMPS | Delivery Lead Time | 25 Days |
| Trade Term | Fob, CIF, DDU, EXW | Shipping Method | By Air Or Express |
| Customized Service | OEM |
Product Description

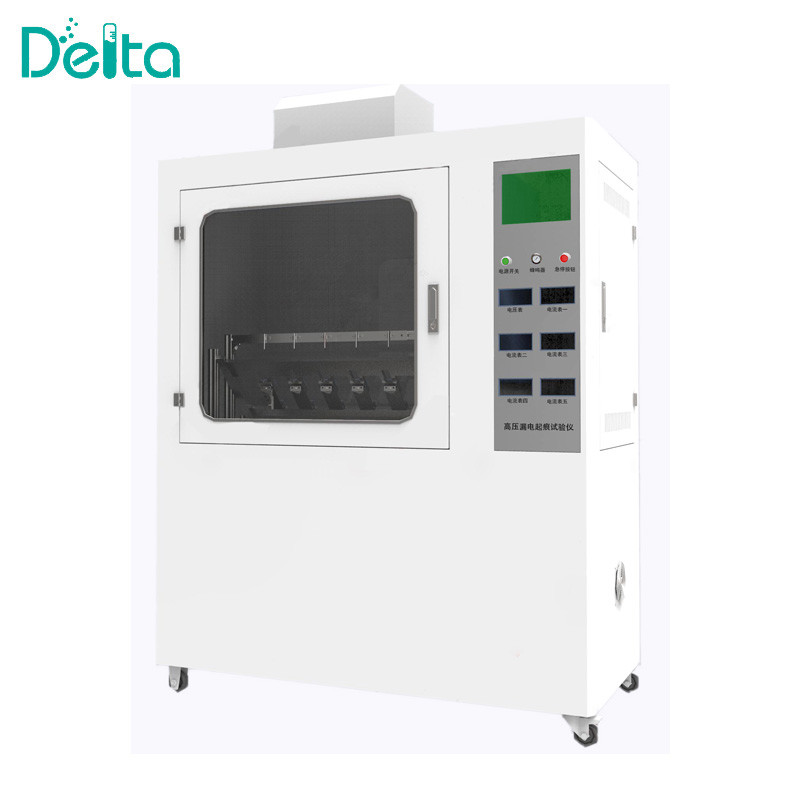

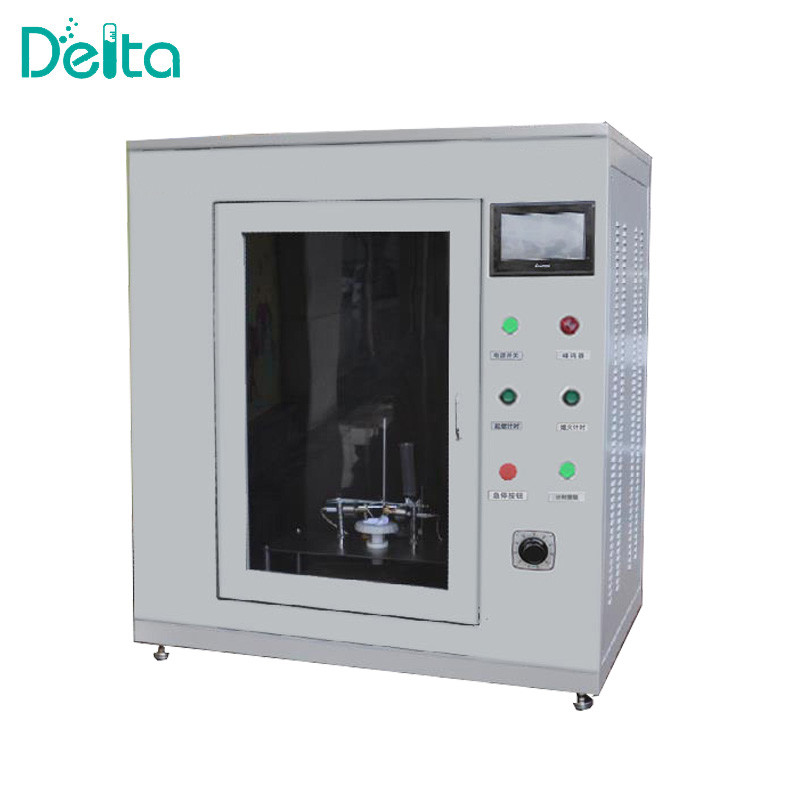

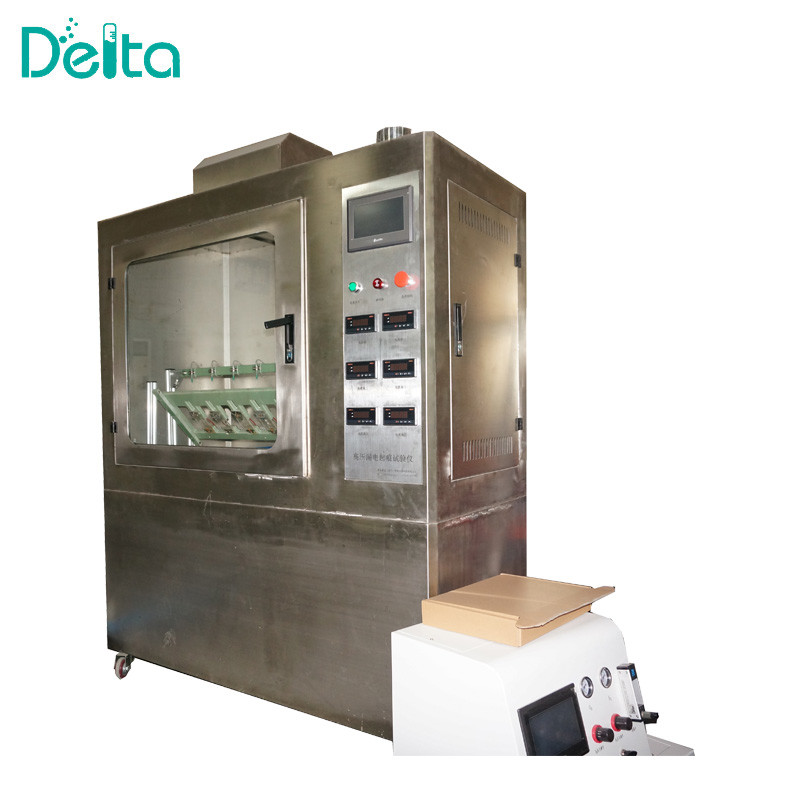

CTI Solid Insulating Materials IEC60112 Tracking Indices Tester
Introduction:
The IEC60112 Insulating Material Comparative Tracking Index CTI Tester is designed according to international standards.
IEC60112 Insulating Material Comparative Tracking Index CTI Tester is suitable for determine the proof and comparative tracking indices of solid insulating materials.
Reference Standards:
1. ASTM D 3638-12:Standard Test Method for Comparative Tracking Index of Electrical Insulating Materials
2. IEC 60112: Method for the determination of the proof and the comparative tracking indices of solid insulating materials
3. UL746A:(CTI) Comparative Tracking Index or Insulation Tracking Electrical Test
Parameters:
| No. | Item Name | CTI Solid Insulating Materials IEC60112 Tracking Indices Tester |
| 1 | Electrode material | electrode tip - platinum metal (platinum) |
| 2 | Electrode pressure | 1.0 ± 0.05N |
| 3 | Electrode distance | 4.0mm ± 0.01mm, the angle 60 ° ± 5 |
| 4 | Electrode voltage | 100 ~ 600V (48 ~ 60HZ) adjustable, short-circuit current 1.0 ± 0.1A of less than 10% |
| 5 | Dropping height | 30 ~ 40mm adjustable |
| 6 | Dropping size | 44 ~ 55 drops / 1cm3 adjustable |
| 7 | Dropping time | 30s ± 5s |
| 8 | Dropping times | 0 ~ 9999 times available |
| 9 | Leakage judgment | when loop current is greater than 0.5A and maintaining for 2s, the relay cut off the current and result indicates sample failed |
| 10 | Testing process | automatic control, independent ventilation |
| 11 | Inside Volume | 0.1 m³ (Can be customized 0.5 m³ or 0.75 m³) |
| 12 | Dimension | 630mm(W) * 390mm(D) * 750mm(H) |
