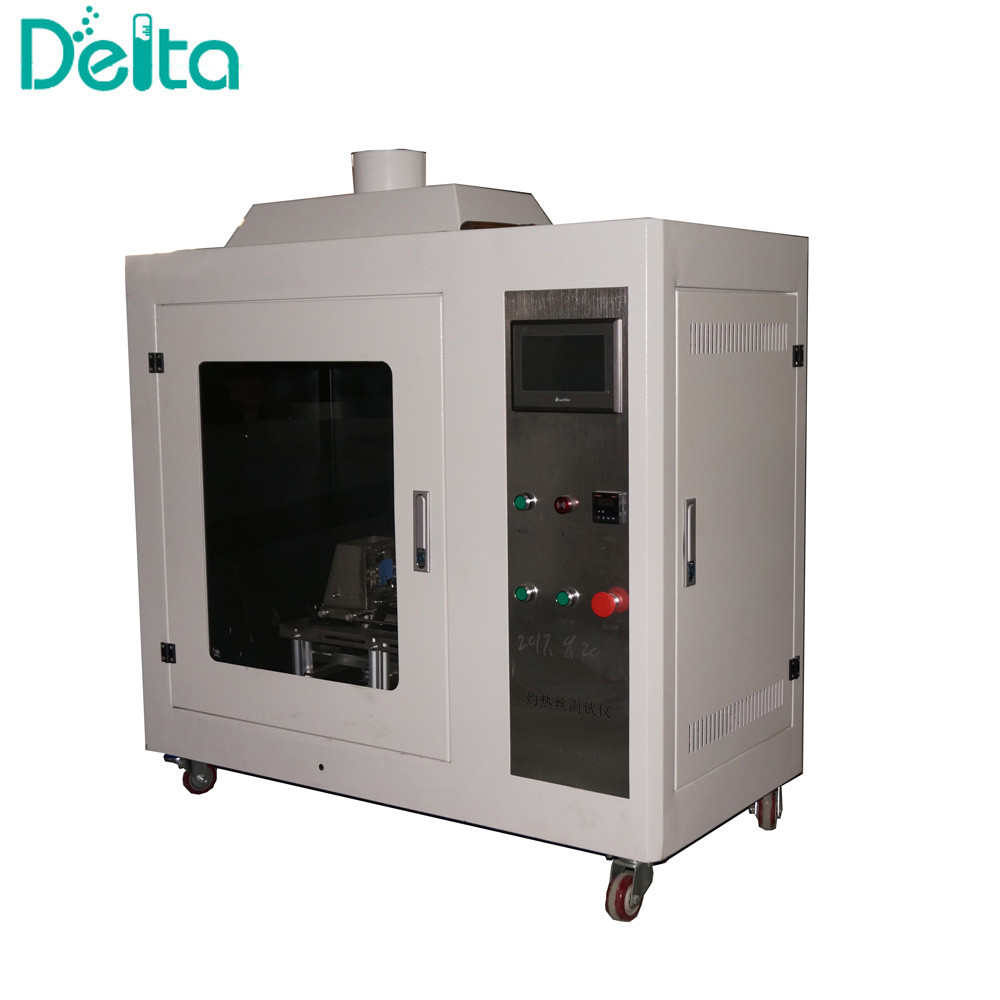

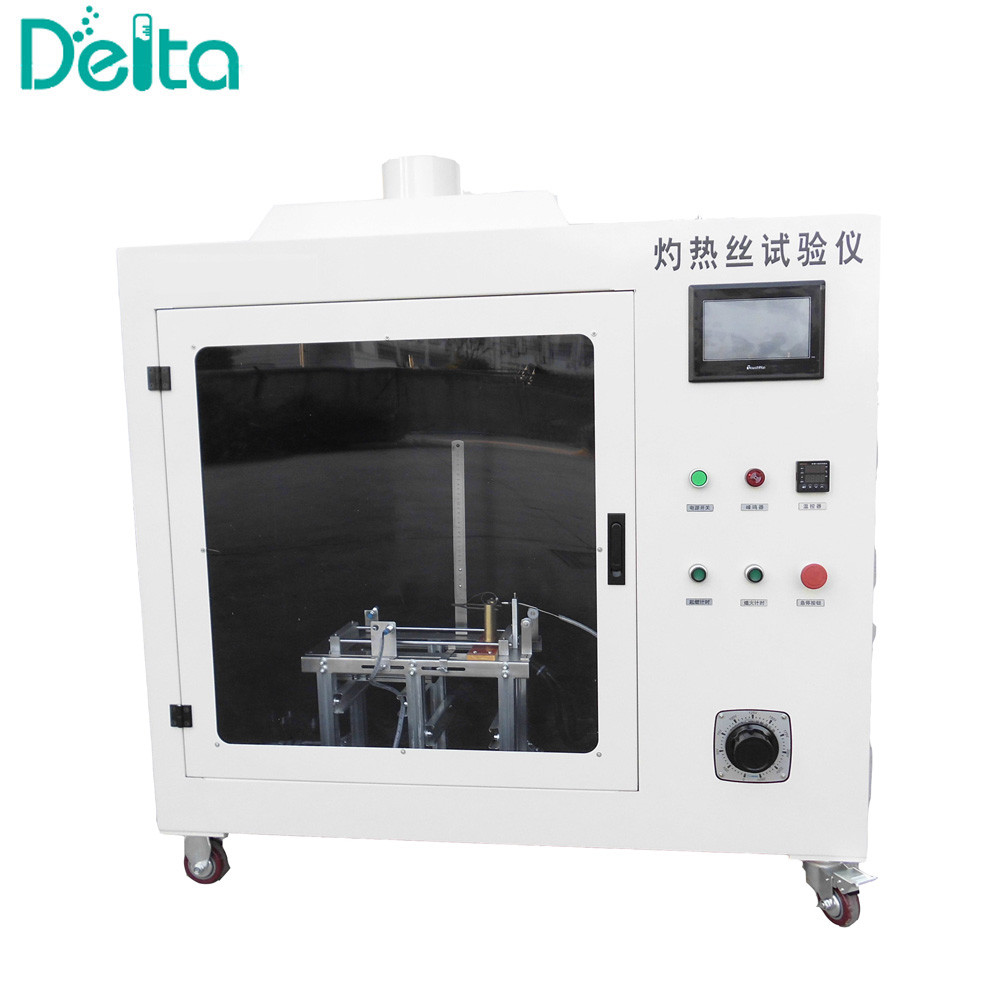

GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester

  • GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester
  • GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number GWT
Minimum Order Quantity 1 set Plastic Glow Wire Tester
Price USD1.0
Packaging Details GWT Glow Wire Tester packed in veneer case
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 100 sets Glow Wire Tester per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester Function ForElectrical Parts Plastic Material Burning Test
Application Field Insulating Material, Plastic Reference Standards IEC 60695-2-10, UL 746A, IEC829, DIN695
Temperature Range 500 - 1000 Centigrade Temperature Accuracy ± 0.5 Centigrade
Temperature Sensor USA OMEGA Brand 1mmK Armored Thermocouple Timing Range 0~99 S, ± 1s
Packing Mode Veneer Case Warranty Period 1 Year
Service Installation And Commissioning Service Is Available Language English
OEM Service Yes
Leave a Message
Product Description

GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester

Introduction:

  • Electrical components or parts may reach very high temperatures or even light the material nearby under failure or overload conditions.
  • Glow wire testing simulates thermal stress caused by glowing elements or overloaded resistors in a short time, to evaluate the risk of fire.
  • The glow wire test applies to electrical and electronic products, household appliance parts, and plastic and non-metallic parts of insulating material, such as: switching shell relay sockets.
  • The test chamber and controller of the glow-wire tester are part of the integrated design, which is convenient for installation and debugging.
  • The Outshell of the test chamber and important parts are made of stainless steel material and are smoke & and gas-corrosion-resistant;
  • Adopts thyristor control system to adjust current automatically;
  • Time and temperature is digital display;



Reference Standards:

  • IEC60695-2-10;

  • UL 746A;

  • IEC829;

  • DIN695;

Specifications:

No. Item Name GWT IEC60695 Electrical Parts Plastic Material Glow Wire Tester
1 Temperature Range 500~1000℃, accuracy ± 0.5℃
2 Temperature Sensor USA OMEGA brand 1mmK armored thermocouple
3 Glow Wire Pressure on Sample 0.95 n ± 0.1 n, 0.8 N~1.2 n, accuracy ± 0.1 n
4 Timing Range 0~99 s, ± 1s
5 Ignited Bedding Layer Min. thickness 10mm white pine board, 12g/M3~30g/M3 covering standard silk paper, away from the glow-wire 200mm ± 5mm
6 Relay Omron
7 Circuit breaker Schneider
8 Combustion Chamber 0.75m³
9 Hot Ring Nickel-chromium wire(77% Ni/20±1% Cr), annealing treatment
10 Power supply AC220V ± 10%/50Hz
