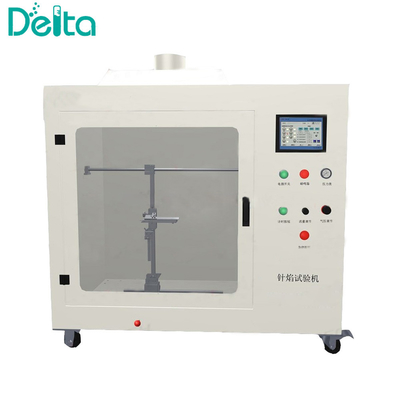

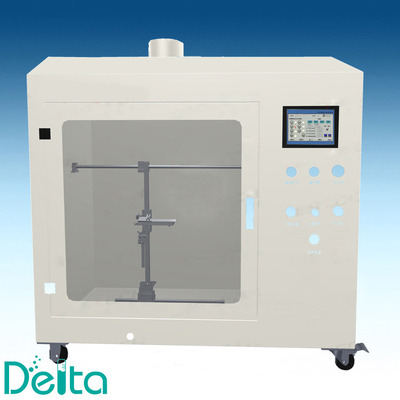

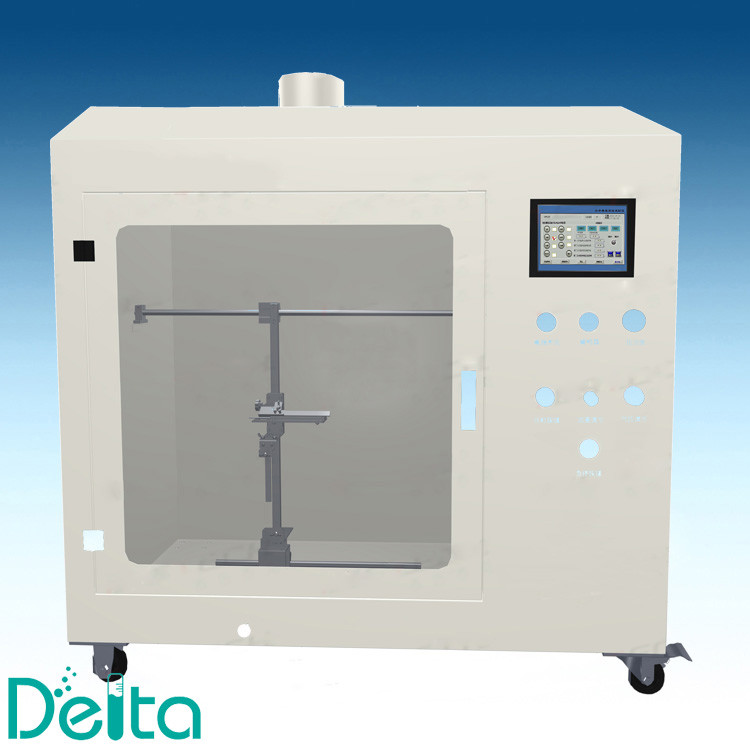

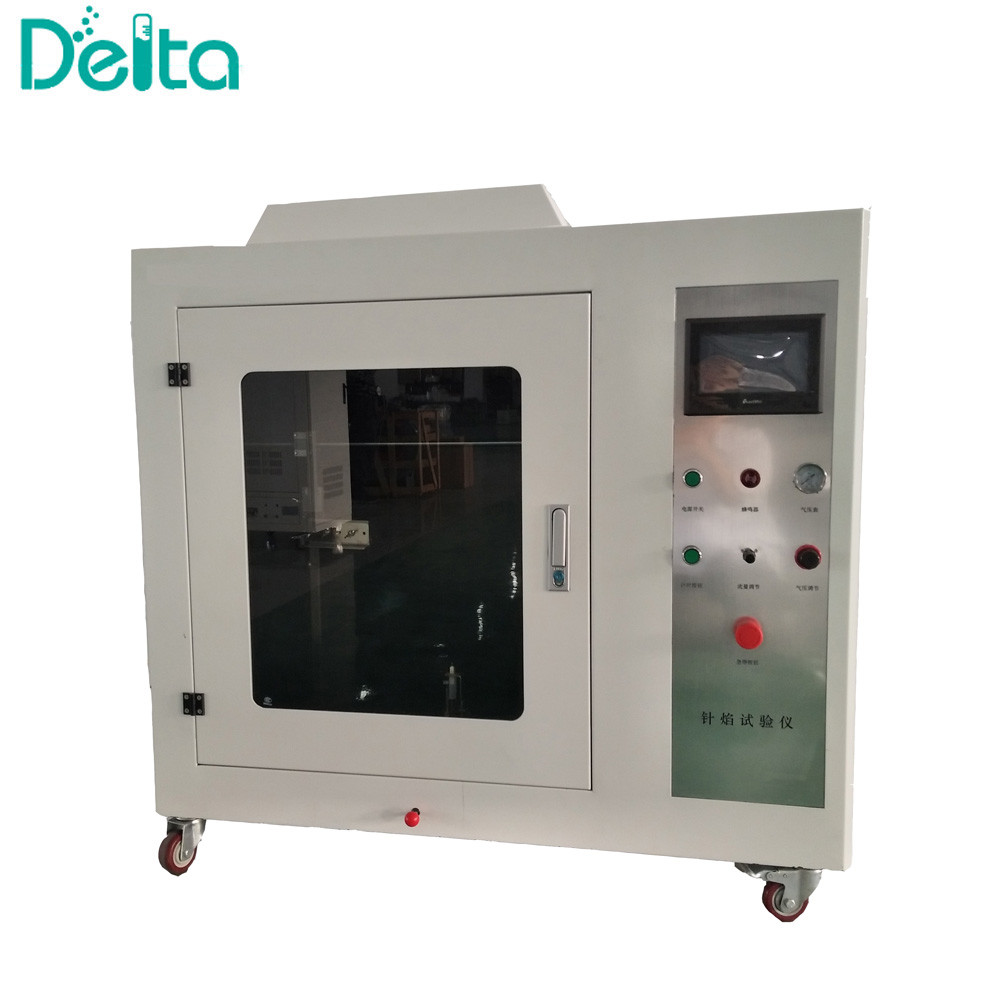

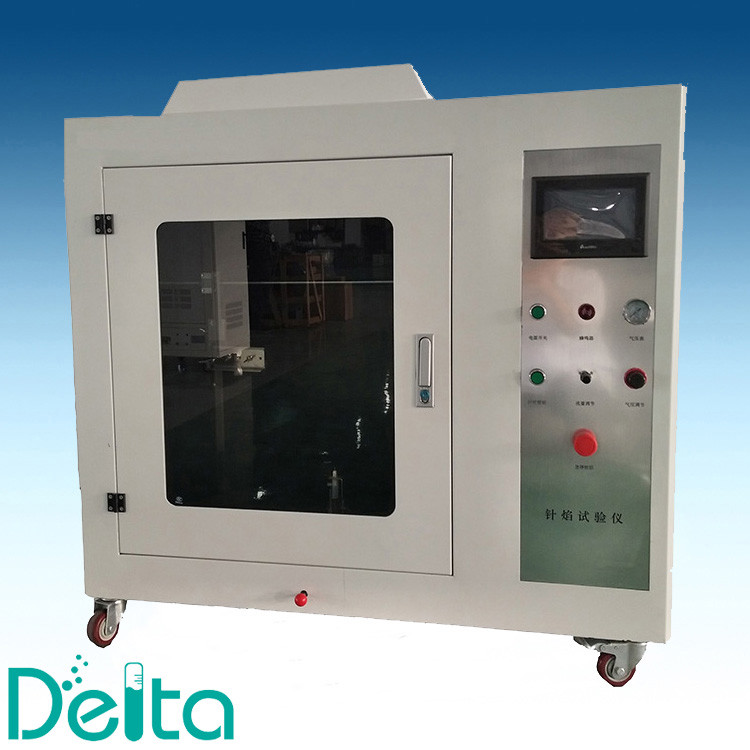

NFT Electrical Parts Burning Testing IEC60695 Needle Flame Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | NFT |
| Minimum Order Quantity | 1 set Needle Flame Tester |
| Price | USD1.0 |
| Packaging Details | NFT Needle Flame Tester packed in veneer case |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 sets Needle Flame Tester per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | NFT Electrical Parts Burning Testing IEC60695 Needle Flame Tester | Function | IEC60695 Needle Flame Tester For Electrical Parts Burning Testing |
|---|---|---|---|
| Application Field | Nft Hot Sale IEC60695 Needle Flame Tester,Insulating Material, Plastic | Reference Standards | IEC60695-2-2, IEC60695-11-5 |
| Temperature Range | 0 - 1000 Centigrade | Flame Height | 12mm ± 1mm |
| Burning Time | 0s ~ 999.9s Adjustable, Generally Set At 30s | Dimension | L1120 * W520 * H1250mm |
| Packing Mode | Veneer Case | Warranty Period | 1 Year |
| Service | Installation And Commissioning Service Is Available | Display | Digital Display |
| Language | English | OEM Service | Available |
Product Description
NFT Electrical Parts Burning Testing IEC60695 Needle Flame Tester
Introduction:
- NFT IEC60695 Needle Flame Tester uses a Φ0.9mm needle burner, use butane as gas source, burn the specimen at 45 ° angle. Then according to the specimen is ignited and burned time and burning length to evaluate the fire hazard of the small flames caused by the fault condition inside the equipment.
- NFT IEC60695 Needle Flame Tester is widely used in low-voltage electrical equipment, household appliances, electrical machines, motors, power tools, electronic equipment, electrical instruments, electrical connectors, accessories and other electrical and electronic equipment and parts, components research, production and quality control departments and insulating materials, plastic or other solid combustible materials industry and other small-flame ignition source simulation.
Reference Standards:
-
IEC60695-2-2;
-
IEC60695-11-5
Specifications:
| No. | Item Name | NFT Electrical Parts Burning Testing IEC60695 Needle Flame Tester |
| 0 | Needle burner | Stainless steel, inner diameter of ¢ 0.5 ± 0.1mm, an outer diameter of not more than ¢ 0.9mm, length 35mm more needles, no air access |
| 1 | The burner angle | vertical (when adjusting and measuring the flame height) or inclined 45 ° test |
| 2 | Combustion gases | 95% butane gas or propane gas |
| 3 | Ignited bedding layer | white pine plank (thickness 10mm), surface covering 12 ~ 30g / m2 standard tissue paper layer is applied at lower flame from 200mm ± 5mm |
| 4 | Temperature range | 0--1000 ℃ |
| 5 | Flame temp. requirement | from 100 ± 2 ℃ ~ 700 ℃ ± 3 ℃, should be completed within 23.5 ± 1.0s |
| 6 | The flame height | 12mm ± 1mm |
| 7 | Burning time | 0s ~ 999.9s adjustable, generally set at 30s |
| 8 | Holding burning time | 0s ~ 999.9s, automatic recording, manual pause |
| 9 | Test Space | ≥0.5m3, black background, (can be customized cubic 0.75 m3 or 1 m3 according to customer requirements) |
| 10 | Temperature sensor | K-type insulation-sheathed thermocouple (Φ0.5mm) |
| 11 | Dimensions | L1120 * W520 * H1250mm, exhaust Φ100mm |
| 12 | Power supply | 220V / AC, 50H |
