SBI EN 13501 EN 13823 Building Material Single Burning Item
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SBI |
| Minimum Order Quantity | 1 set Single Burning Item |
| Price | USD1.0 / set |
| Packaging Details | Single Burning Item is packed in plywood cases and container. |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 sets Single Burning Item / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | En 13823 Standard Single Burning Item Sbi Tester | Item Name | SBI EN 13501 EN 13823 Building Material Single Burning Item |
|---|---|---|---|
| Application | Test Reaction To Fire Behavior Of Building Product | Application Field | Building Material |
| Reference Standards | ISO 9239-1, ASTM E648-17 | Apparatus Dimension | 3000 Mm (W) X 4500 Mm (H) X 3000 Mm |
| Control Mode | Computer Control | Weight | 650kg |
| Power Supply | 220V, 10A, 50Hz | Delivery Lead Time | 2 Months |
| Trade Term | EXW, Fob, DDU, CNF, CIF, Etc. | Payment Term | 30% T/T As Deposit, The Balance Before Delivery |
| Conditon | Totally New | Shipping Method | By Sea |
| Packing | In Container | Language | English |
Product Description

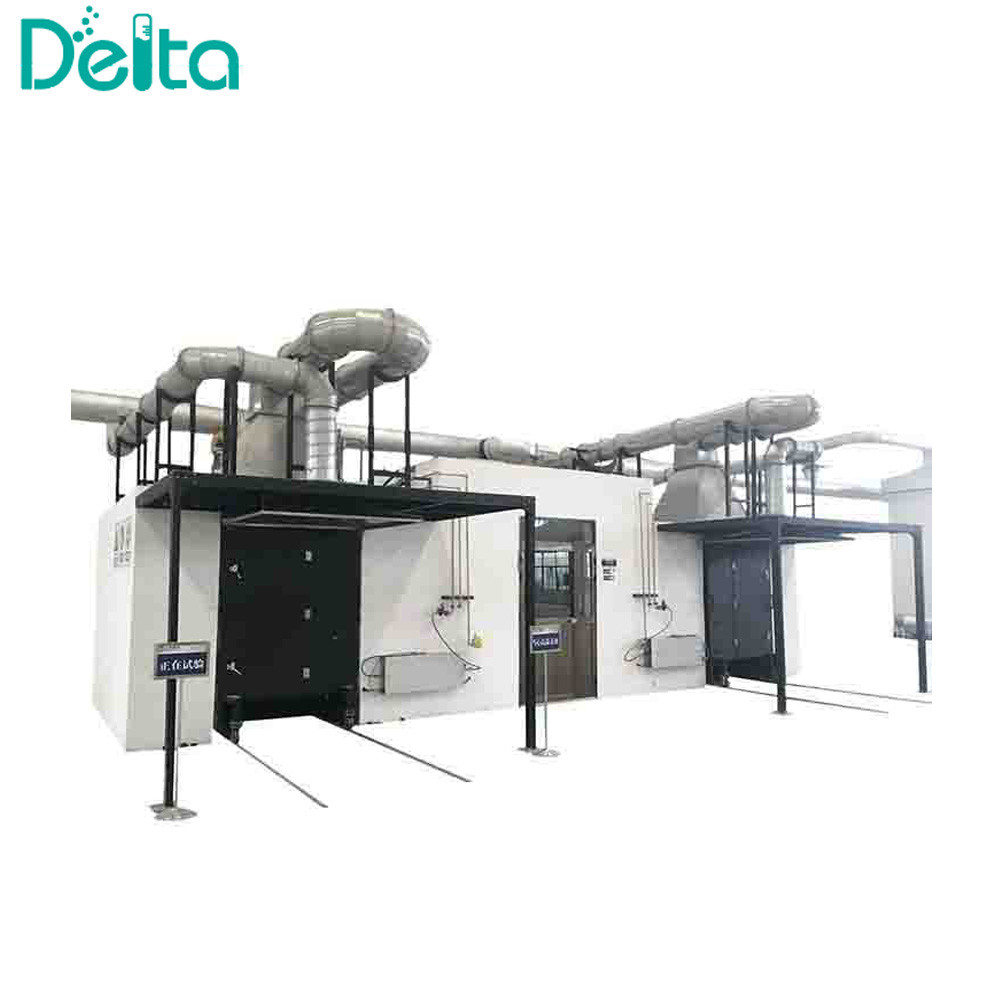

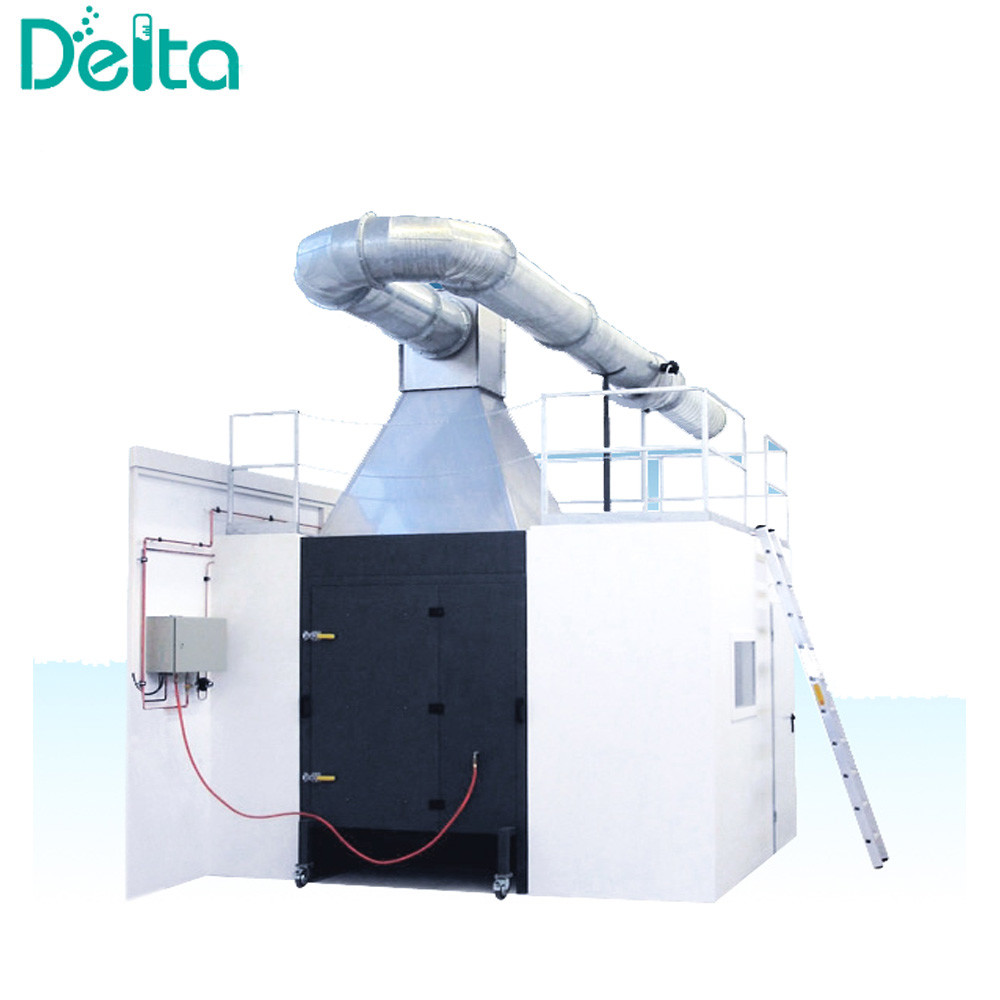

SBI EN 13501 EN 13823 Building Material Single Burning Item
Introduction:
- The Single Burning Item (SBI) is a method of test for determining the reaction to fire behavior of building products (excluding floorings) when exposed to the thermal attack by a single burning item (a sand-box burner supplied with propane).
- The specimen is mounted on a trolley that is positioned in a frame beneath an exhaust system. The reaction of the specimen to the burner is monitored instrumentally and visually. Heat and smoke release rates are measured instrumentally and physical characteristics are assessed by observation.
Standards:
- EN 13501;
- EN 13823;
Software Features:
Provide the following calibration and operation interface:
- O2/CO2 analyzer calibration: O2/CO2 output noise and drift calibration
- Calibration of optical systems: noise and drift calibration of smoke measurement systems
- Optical system calibration: filter calibration
- Air volume calibration: air volume control range calibration
- Ladder calibration and heptane calibration
Heat output ladder calibration meet the following requirements:
- The delay time of the O2/CO2 analyzer is not more than 30s;
- The response time of the O2/CO2 analyzer is not more than 12s;
- The response time of the burner switch is not more than 12s;
- The temperature response time shall not exceed 6s;
- The ratio Q gas 30s (T) /HRR30s (T), (T) should be continuous (100 + 5)%;
- The difference between the average of HRR step 2 and the average of HRR step 3 is not more than 0.5kW.
Heptane calibration results:
The calorific value of unit mass heptane should be THR/m (4456 + 222.8) MJ/kg;
Testing results:
- Average rate of heat release[RHRav(t)]
- Total Heat Release[THR(t)]
- 1000 * [RHRav(t)/(t-300)]
- Fire Growth Rate Index[FIGRA]
- Total Heat Release[THR600s]
- Occurrence of Lateral Flame Spread
- RSPav(t)
- Total Smoke Production[TSP(t)]
- 10000 * [RSPav(t)/(t-300)]
- Smoke Growth Rate Index[SMOGRA]
- Total Smoke Production[TSP600s]
Parameters:
| No. | Item Name | SBI EN 13501 EN 13823 Building Material Single Burning Item |
| 1 | Dimension | 3000 mm (W) x 4500 mm (H) x 3000 mm |
| 2 | Weight | 650kg |
