COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | COI |
| Minimum Order Quantity | 1 set Limiting Oxygen Test Apparatus |
| Price | USD1.0 / set |
| Packaging Details | Limiting Oxygen Test Apparatus is packed in one plywood case. |
| Delivery Time | Within 30 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets Limiting Oxygen Test Apparatus / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Durable Limited Oxygen Index Apparatus | Reference Standards | ASTM D 2863, ISO 4589-2, Nes 714 |
|---|---|---|---|
| Test Method | Paramagnetic Type | Function | Measure Limited Oxygen Index Of Material |
| Oxygen Sensor | Paramagnetic Type | Application Field | Building Material, Cable, Rail, Plastic, Etc. |
| Oxygen Range | 0 - 100% | Gas Supplies | Oxygen, Nitrogen And Propane |
| Dimension | 37cm * 30cm * 48cm | Weight | 8kg |
| Power Supply | 220V, 50Hz | Language | English |
| Operation Mode | Semi-auto | Condition | Totally New |
Product Description

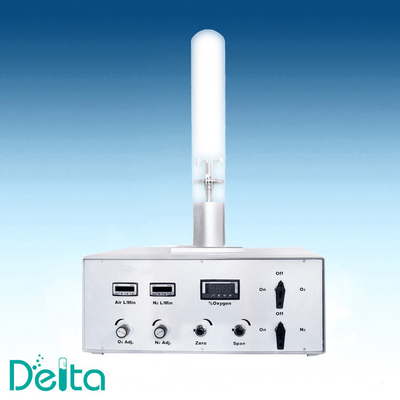

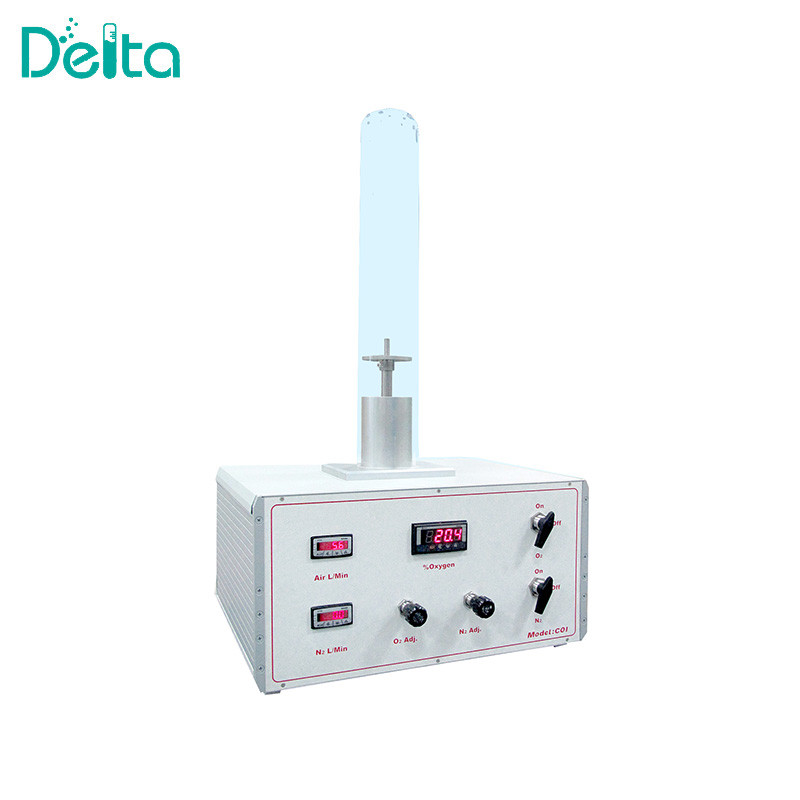

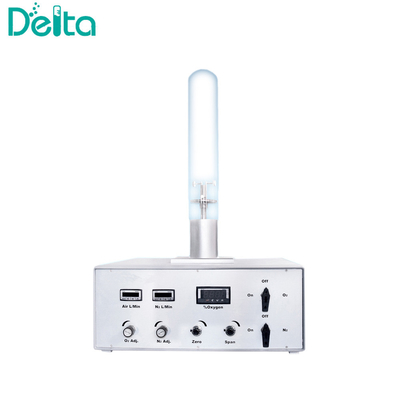

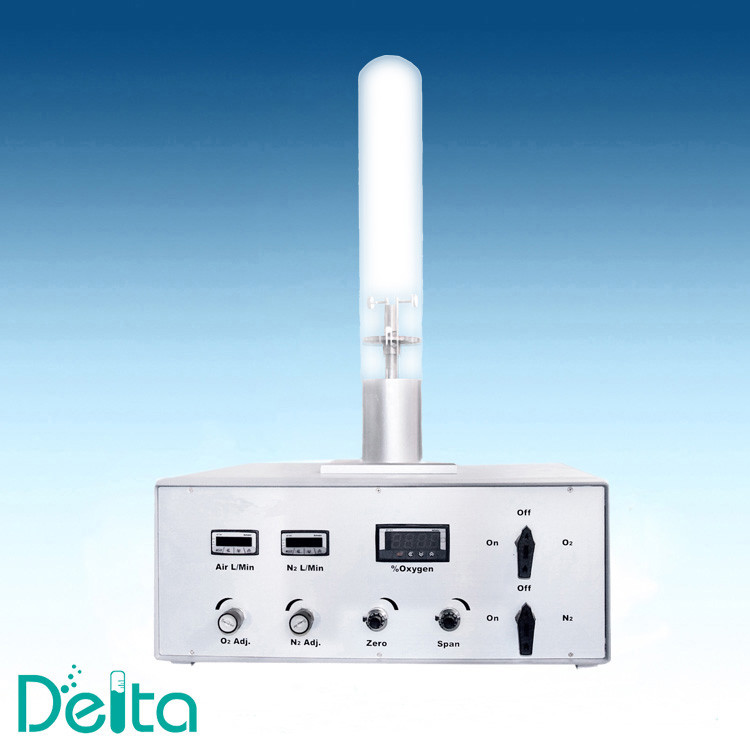

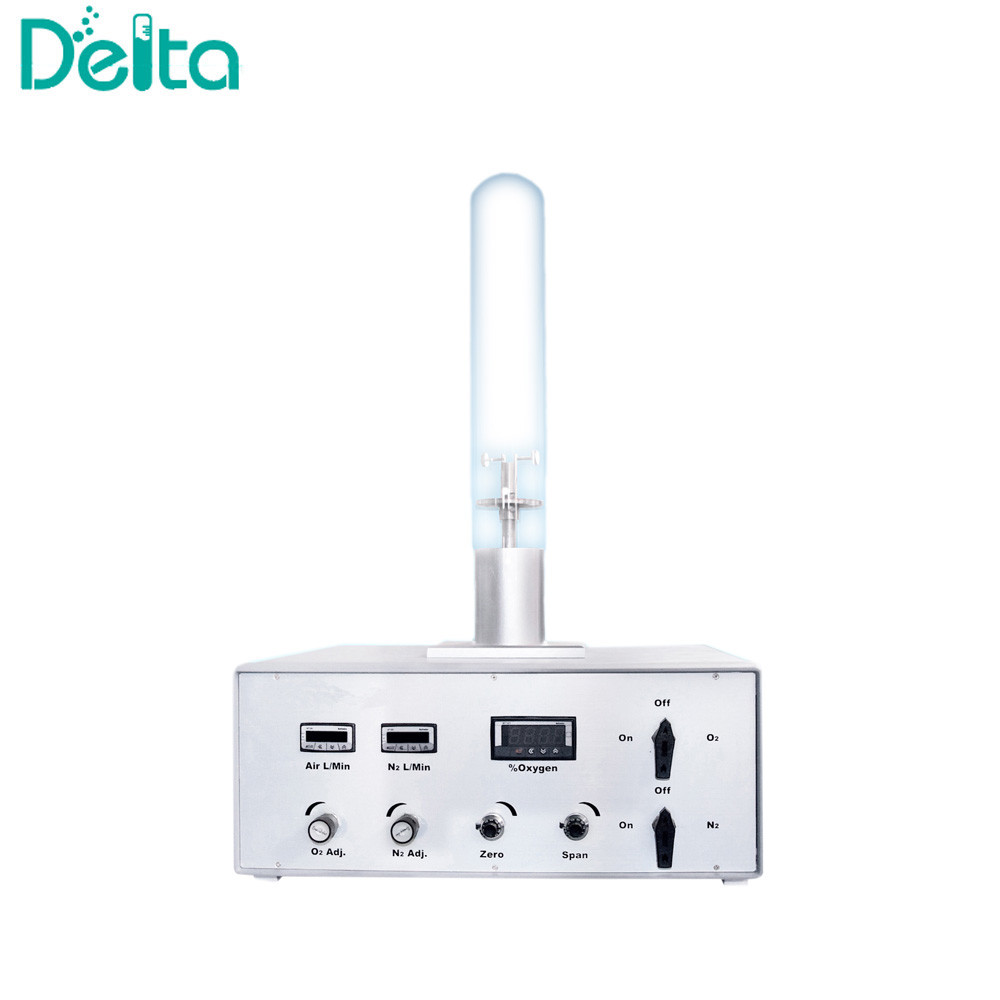

COI Paramagnetic ISO4589-2 Plastic Limiting Oxygen Test Apparatus
Introduction:
COI Paramagnetic Type Limited Oxygen Index Apparatus is a convenient device to measure minimum oxygen concentration during combustion of specimen.
COI Limited Oxygen Index Apparatus adapts Paramagnetic Type oxygen sensor which has a precise, long life, less error rate and high reliability.
Reference Standards:
-
ASTM: ASTM D2863: Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index).
-
ISO: ISO 4589-2: Determining the minimum volume fraction of oxygen, in admixture with nitrogen, that will support combustion of small vertical test specimens under specified test conditions. The results are defined as oxygen index (OI) values.
-
NES: NES 714.
Parameters:
|
No. |
Item Name |
COI Paramagnetic Type Durable Limited Oxygen Index Apparatus |
|
1 |
Size |
420 mm (W) x 350 mm (D) x 560 mm (H) |
|
2 |
Weight |
9kg |
|
3 |
Power Supply |
115 Volts AC 60Hz / 230 Volts AC 50Hz |
|
4 |
Gas Supplies |
Oxygen, Nitrogen and Propane |
|
5 |
Oxygen Sensor |
Range:0 to 100% Oxygen |
Features:
- Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.
- Digital display of nitrogen gas flow, total flow ofoxygen and nitrogen.
- Digital display of oxygen percentage in atmosphere during test (no calculations needed).
- High temperature resistant quartz glass tube, can withstand a higher test temperature.
- Gas ignition device, easily adjust the length of the flame.
- Sample holders for both rigid and flexible samples supplied.
- Shortened gas path for rapid response.
- Paramagnetic Oxygen Sensor: Range:0 to 100%
- Oxygen. Repeatability (typical): ±0.1% Oxygen.

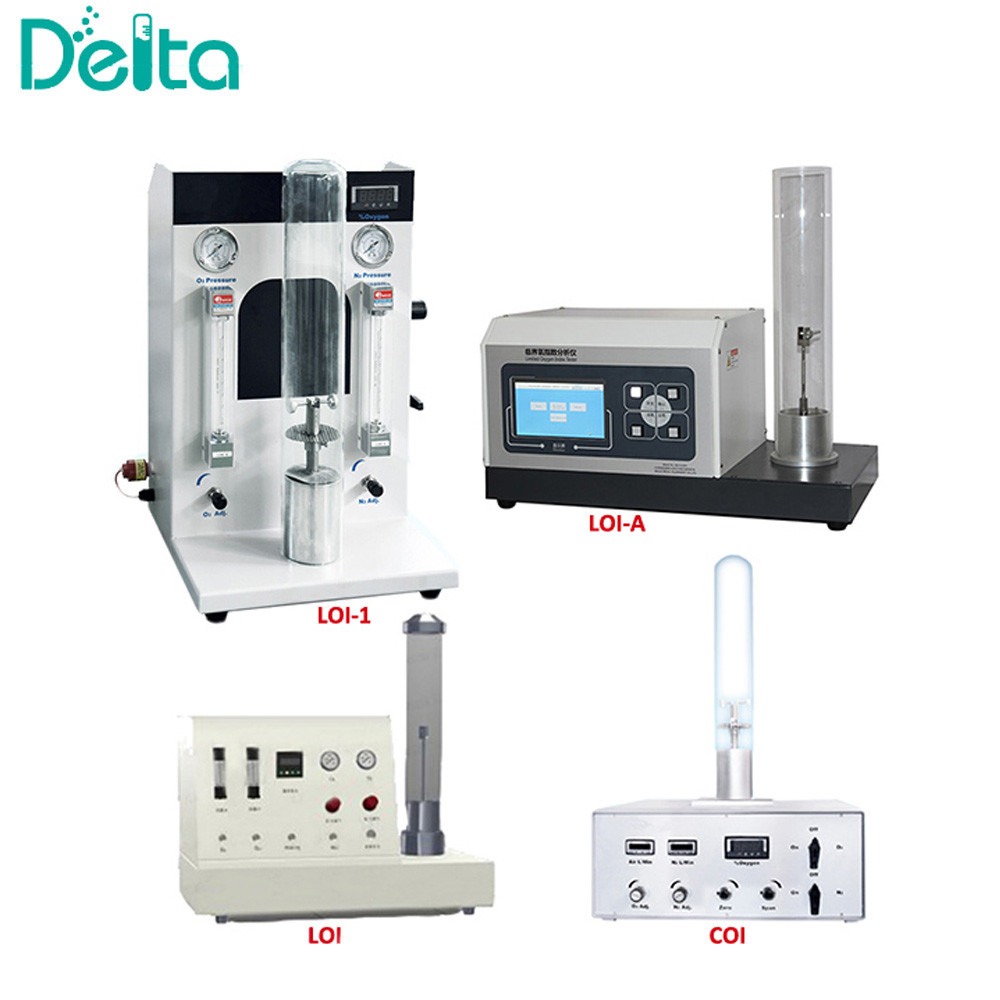

Limited Oxygen Index Tester Series:
-
OI Electro-chemistry Limited Oxygen Index Tester
-
LOI Electro-chemistry Limited Oxygen Index Tester
-
COI Paramagnetic Limited Oxygen Index Analyzer
-
LOI-A Automatic Limited Oxygen Index Analyzer
