MFR Melt Volume Flow Rate ASTM D1238 Melt Flow Rate Tester by Extrusion Plastometer
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | MFR |
| Minimum Order Quantity | 1 Set Melt Flow Rates Tester in one order |
| Price | Negotiable |
| Packaging Details | MFR ASTM D1238 Melt Flow Rates Tester packed in veneer case. |
| Delivery Time | 10-20 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO1133 Standard MVR And MFR Tester | Description | MFR Melt Volume Flow Rate ASTM D1238 Melt Flow Rate Tester By Extrusion Plastometer |
|---|---|---|---|
| Reference Standards | MFR Melt Volume Flow Rate ASTM D1238 Melt Flow Rate Tester By Extrusion Plastometer,ASTM D1238-98, ISO1133 | Application | MFR Melt Volume Flow Rate ASTM D1238 Melt Flow Rate Tester By Extrusion Plastometer,Determination Of The Melt Flow Rates By Extrusion Plastometer |
| Application Field | Plastic Material | Dimension | 51cm * 37cm * 60cm |
| Weight | 25kg | Test Method | Quality Act (MFR), And Melt Volume Flow Rate MVR |
| Temperature Range | 20 ~ 400 ºC | Index Range | 0.1-400.00g / 10min (MFR) |
| Power Supply | 220V, 50Hz | Warranty | 1 Year |
Product Description

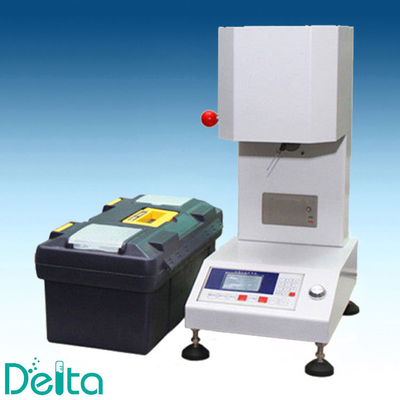

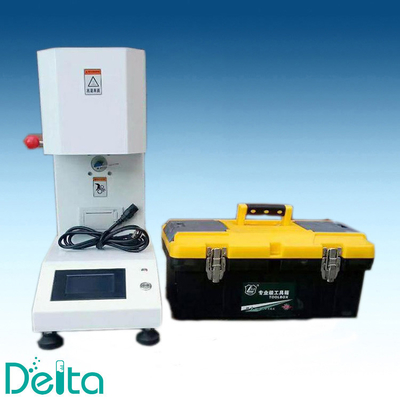

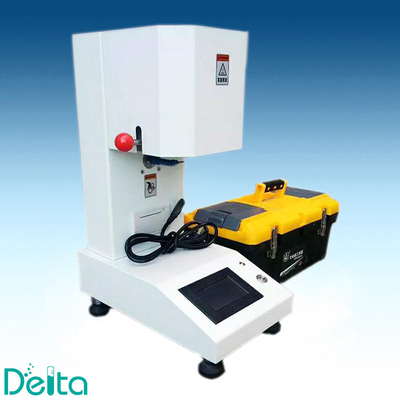

MFR ASTM D1238 Melt Flow Rates Tester
Introduction:
MFR ASTM D1238 Melt Flow Rate Tester is deisgned and manufactured according to ASTM D1238-98 and ISO1133;
MFR ASTM D1238 Melt Flow Rate Tester is suitable for testing fluorine plastic, nylon and other engineering plastics, it is also used to test polyethylene (PE), polypropylene (PP), polyacetal (POM), polyphenylene ethylene (PS) ABS resin, polycarbonate and other plastics.
Features:
PLC control, LCD display, following parameters will be displayed on screen:time, temperature, sampling times.
Quality Act (MFR) measurement, high precision, accurate data.
MFR ASTM D1238 Melt Flow Rate Tester is accurate, stable, reliable and easy to use;
Specifications:
| Item Name | MFR ASTM D1238 Melt Flow Rate Tester |
| Test Method | Quality Act (MFR) |
| Temperature range | 20 ~ 400 ºC; accuracy of ; 0.1 ºC |
| Temperature accuracy | ± 0.2 ºC |
| Resolution | 0.1 ºC |
| Index range | 0.1-400.00g / 10min (MFR) |
| Time accuracy | 1 S |
| Load | 0.325kg, 0.875kg, 0.96kg, 1.2kg, 1.64kg, 5kg |
| Material cutting modes | manual, time control |
| Scraper | Auto / Manual |
| Barrel inner diameter | 9.550mm ± 0.025mm |
| Barrel length | 160mm |
| Die | made of tungsten carbide, length: 8.000mm ± 0.025mm inner diameter: 2.095mm ± 0.005mm |
| Dimension | 51cm * 37cm * 60cm |
| Weight | 25kg |
| Power supply | AC220V±10%, 50Hz |
