MFR ISO1133 Melt Volume Flow Rate MVR and Melt Mas Flow Rate MFR Tester
| Place of Origin | China |
|---|---|
| Brand Name | LB |
| Certification | ISO9001 |
| Model Number | MFR |
| Minimum Order Quantity | 1 Set MVR and MFR Tester in one order |
| Price | Negotiable |
| Packaging Details | MFR ISO1133 Melt Volume Flow Rate MVR and Melt Mas Flow Rate MFR Tester packed in veneer case. |
| Delivery Time | 10-20 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO1133 Standard MVR And MFR Tester | Description | MFR ISO1133 Melt Volume Flow Rate MVR And Melt Mas Flow Rate MFR Tester |
|---|---|---|---|
| Reference Standards | ASTM D1238-98, ISO1133 | Application | Determination Of The Melt Mass-flow Rate (MFR) And The Melt Volume-flow Rate (MVR) Of Thermoplastics |
| Application Field | Plastic Material | Dimension | 51cm * 37cm * 60cm |
| Weight | 25kg | Test Method | Quality Act (MFR), And Melt Volume Flow Rate MVR |
| Temperature Range | 20 ~ 400 ºC | Index Range | 0.1-400.00g / 10min (MFR) |
| Power Supply | 220V, 50Hz | Warranty | 1 Year |
Product Description

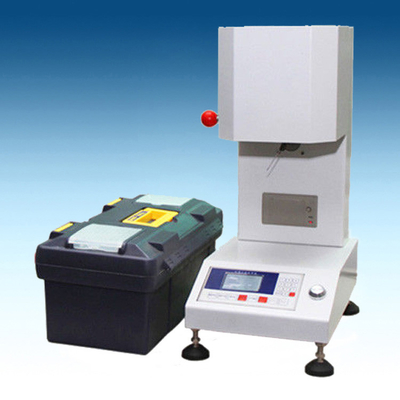

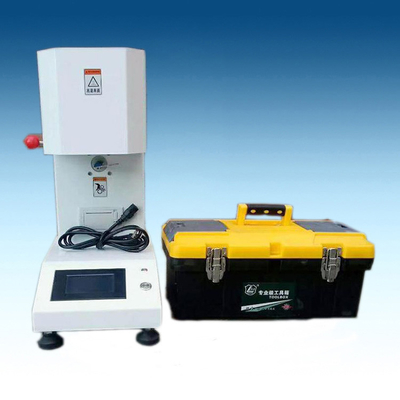

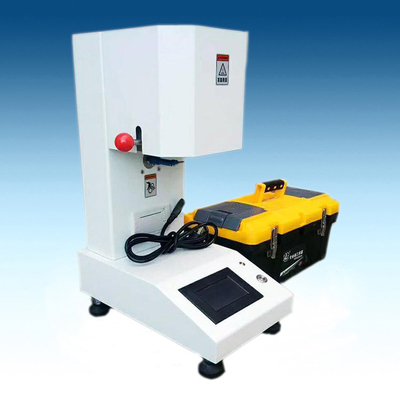

MFR ISO1133 Melt Volume Flow Rate and Melt Mass Flow Rates MFR Tester
Introduction:
MFR ISO1133 MVR and MFR Tester is deisgned and manufactured according to ASTM D1238-98 and ISO1133;
MFR ISO1133 MVR and MFR Tester is suitable for testing fluorine plastic, nylon and other engineering plastics, it is also used to test polyethylene (PE), polypropylene (PP), polyacetal (POM), polyphenylene ethylene (PS) ABS resin, polycarbonate and other plastics.
Features:
PLC control, LCD display, following parameters will be displayed on screen:time, temperature, sampling times.
Quality Act (MFR) measurement, high precision, accurate data.
MFR ISO1133 MVR and MFR Tester is accurate, stable, reliable and easy to use;
Specifications:
| Item Name | MMFR ISO1133 MVR and MFR Tester |
| Test Method | Quality Act (MFR) |
| Temperature range | 20 ~ 400 ºC; accuracy of ; 0.1 ºC |
| Temperature accuracy | ± 0.2 ºC |
| Resolution | 0.1 ºC |
| Index range | 0.1-400.00g / 10min (MFR) |
| Time accuracy | 1 S |
| Load | 0.325kg, 0.875kg, 0.96kg, 1.2kg, 1.64kg, 5kg |
| Material cutting modes | manual, time control |
| Scraper | Auto / Manual |
| Barrel inner diameter | 9.550mm ± 0.025mm |
| Barrel length | 160mm |
| Die | made of tungsten carbide, length: 8.000mm ± 0.025mm inner diameter: 2.095mm ± 0.005mm |
| Dimension | 51cm * 37cm * 60cm |
| Weight | 25kg |
| Power supply | AC220V±10%, 50Hz |
