MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester

  • MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester
  • MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester
  • MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester
Place of Origin China Mainland
Brand Name Delta
Certification ISO9001
Model Number MFR
Minimum Order Quantity 1 Set ASTM D1238 Melt Flow Rates Tester in one order
Price Negotiable
Packaging Details ASTM D1238 Melt Flow Rates Tester packed in veneer case.
Delivery Time 10-20 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets ASTM D1238 Melt Flow Rates Tester each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features ASTM D1238 Standard Melt Flow Rates Tester Description MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester
Reference Standards ASTM D1238-98, ISO1133 Application Measure The Rate Of Extrusion Of Molten Resins Through A Standard Die
Application Field Plastic Material Dimension 51cm * 37cm * 60cm
Weight 25kg Test Method Quality Act (MFR)
Temperature Range 20 ~ 400 ºC Index Range 0.1-400.00g / 10min (MFR)
Power Supply 220V, 50Hz Warranty 1 Year
Leave a Message
Product Description

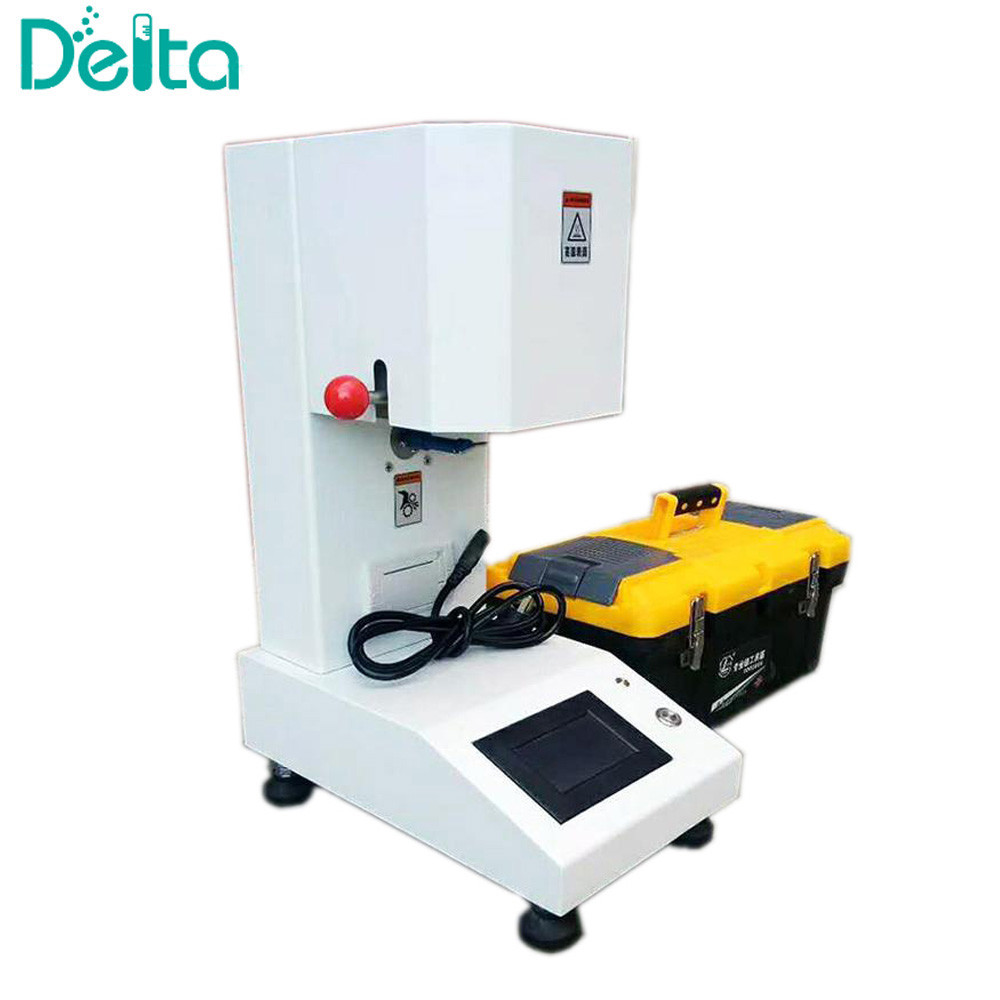

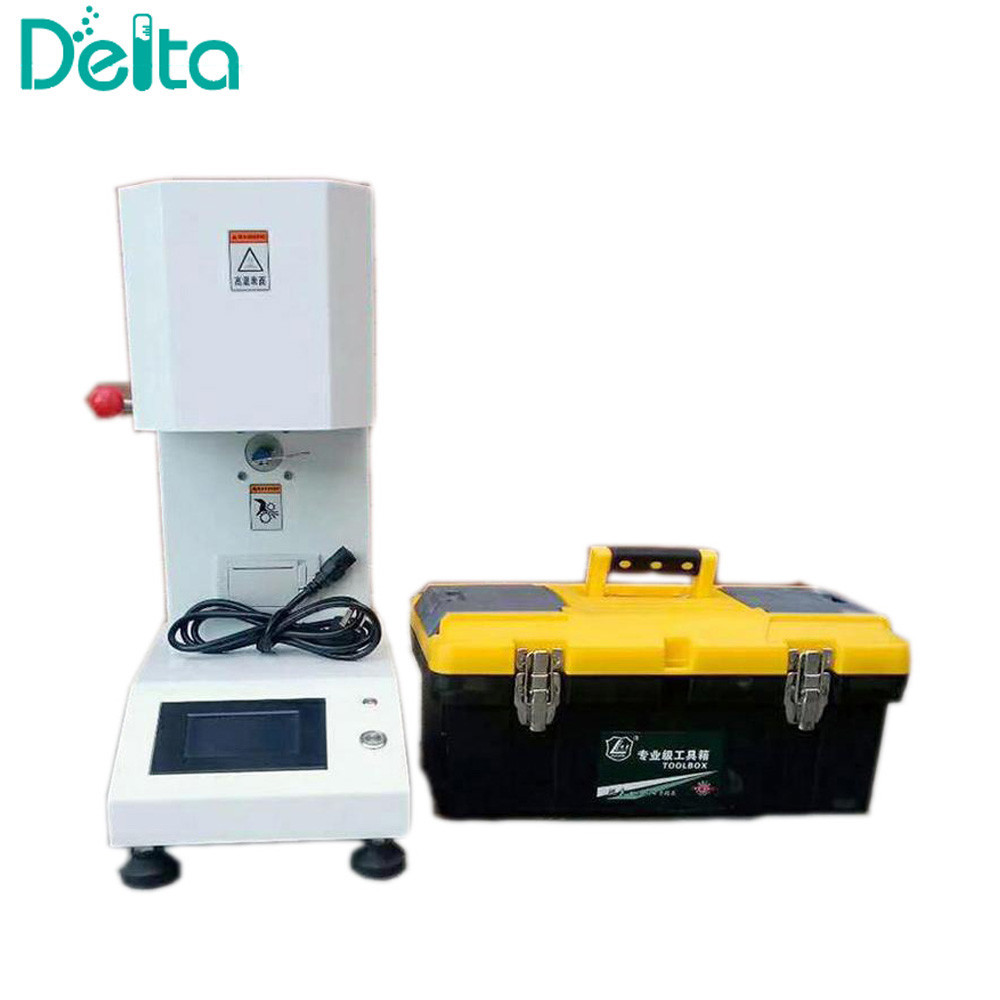

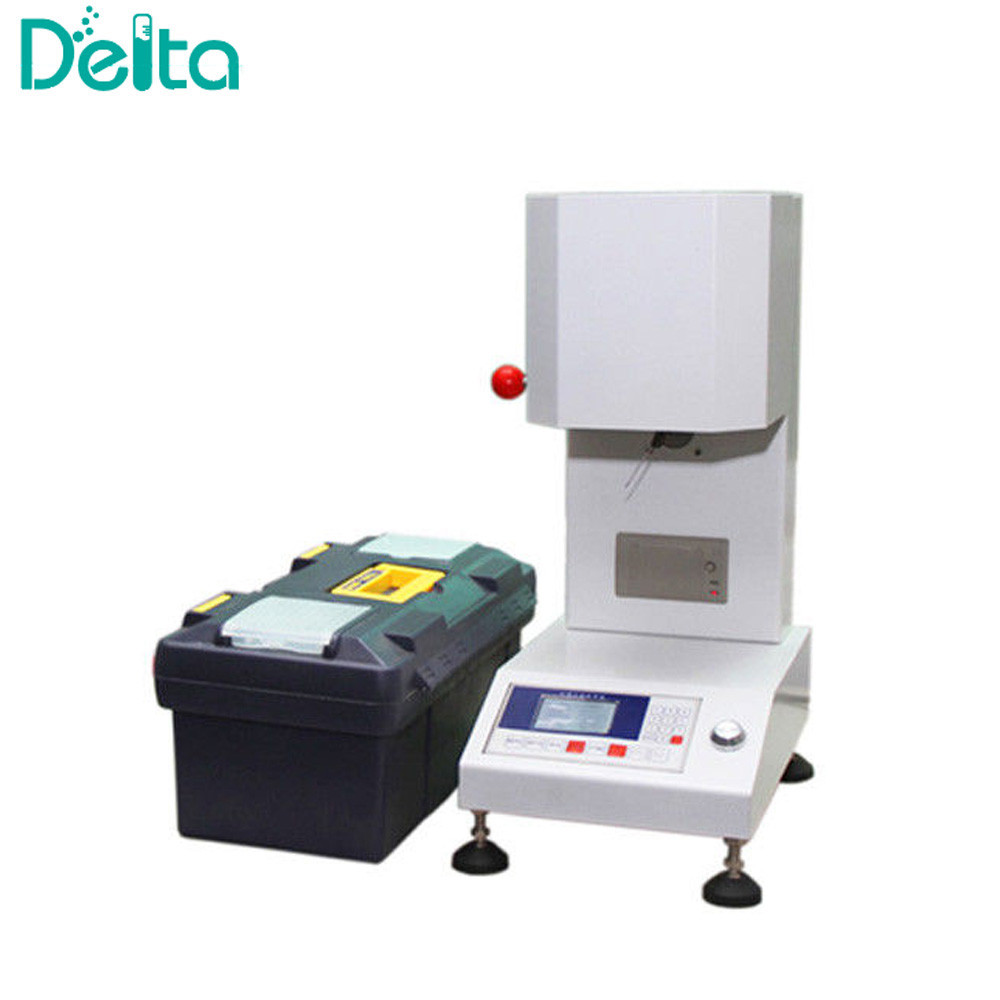

MFR Thermoplastics ASTM D1238 Melt Flow Rates Tester



Introduction:

  • MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester is deisgned and manufactured according to ASTM D1238-98 and ISO1133;
  • It is suitable for testing fluorine plastic, nylon and other engineering plastics, it is also used to test polyethylene (PE), polypropylene (PP), polyacetal (POM), polyphenylene ethylene (PS) ABS resin, polycarbonate and other plastics.



Features:

  • PLC control, LCD display, following parameters will be displayed on screen:time, temperature, sampling times.
  • Quality Act (MFR) measurement, high precision, accurate data.
  • It is accurate, stable, reliable and easy to use;



Specifications:



Item Name MFR Easy Operation Thermoplastics ASTM D1238 Melt Flow Rate Tester
Test Method Quality Act (MFR)
Temperature range 20 ~ 400 ºC; accuracy of ; 0.1 ºC
Temperature accuracy ± 0.2 ºC
Resolution 0.1 ºC
Index range 0.1-400.00g / 10min (MFR)
Time accuracy 1 S
Load 0.325kg, 0.875kg, 0.96kg, 1.2kg, 1.64kg, 5kg
Material cutting modes manual, time control
Scraper Auto / Manual
Barrel inner diameter 9.550mm ± 0.025mm
Barrel length 160mm
Die made of tungsten carbide, length: 8.000mm ± 0.025mm inner diameter: 2.095mm ± 0.005mm
Dimension 51cm * 37cm * 60cm
Weight 25kg
Power supply AC220V±10%, 50Hz
