HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | HFT |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | HFT ISO3795 Interior Materials Burning Behaviour Tester packed in veneer case. |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO3795 Standard Burning Behaviour Tester | Item Name | HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber |
|---|---|---|---|
| Description | ISO3795 Interior Material Burning Behaviour Tester | Reference Standards | Federal Motor Vehicle Interior Flammability Tester Fmvss 302,FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132 |
| Application | Hft Federal Motor Vehicle Interior Flammability Tester Fmvss 302,Measuring Burning Behaviour Of Automotive Interior Materials By ISO3795 | Application Field | Automotive Interior |
| Gas Supply | Propane | Dimension | 430 Mm (W) X 310 Mm (D) X 360 Mm (H) |
| Weight | 12kg | Power Supply | 220V, 50Hz |
| Warranty | 1 Year |
Product Description
HFT ISO3795 Automotive Interior Materials Flammability Testing Chamber
Introduction:
EC Directive 95/28/EC relates to the burning behavior of materials used in the interior construction of certain categories of motor vehicles, and is intended to ensure that they meet fire safety standards.
95/28/EC fire test to interior material of motor vehicle to determine the Characteristic of Burning: Horizontal Burning Behavior, Vertical Burning Behavior and Burning Dropping.
Hft Vehicle Interior Flammability Tester can be used for determining the horizontal burning rate of motor vehicle materials.
Features:
- HFT ISO3795 Interior Materials Burning Behaviour Tester is suitable to determination for flammability, after burning, flame resistance and burning speed in car organic materials.
- Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.
- Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
- Automated control of timing and gas supply.
Specifications:
| No. | Item Name | Hft ISO3795 Automotive Interior Materials Flammability Testing Chamber |
| 1 | Application field | Automotive Interior |
| 2 | Reference standards | FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132 |
| 2 | Dimension | 430 mm (W) x 310 mm (D) x 360 mm (H) |
| 3 | Weight | 12kg |
| 4 | Power supply | 230 volts Nominal 10 Amps |
| 5 | Ambient temperature | Operating 25±5℃ |
| 6 | Gas supply | Propane |

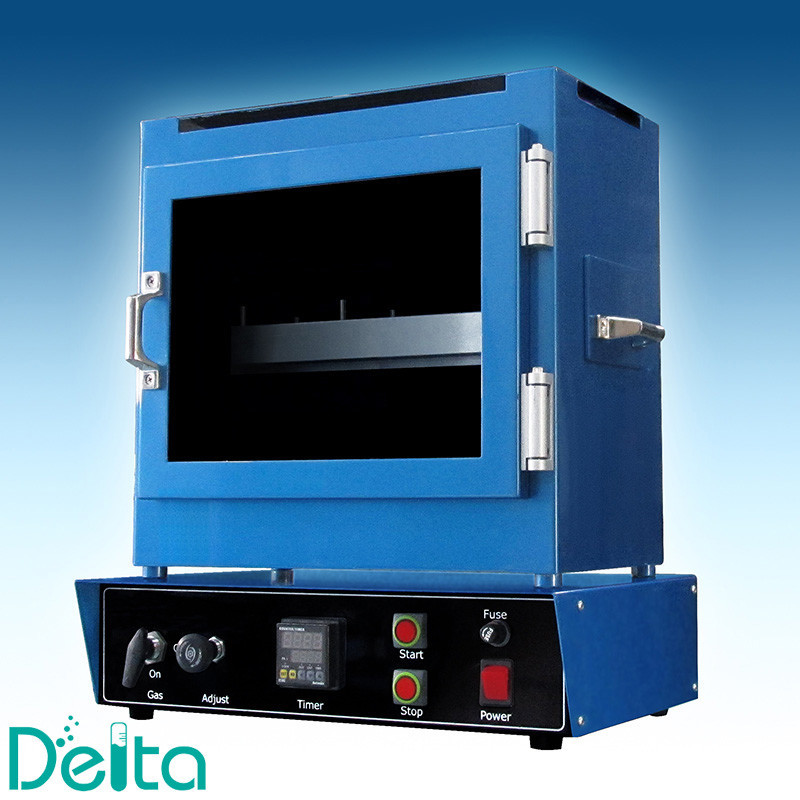

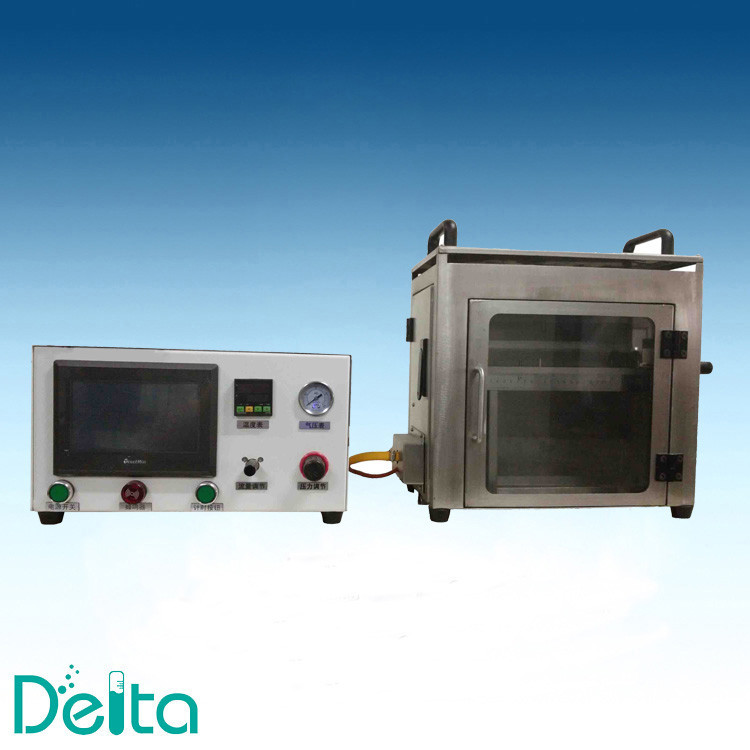

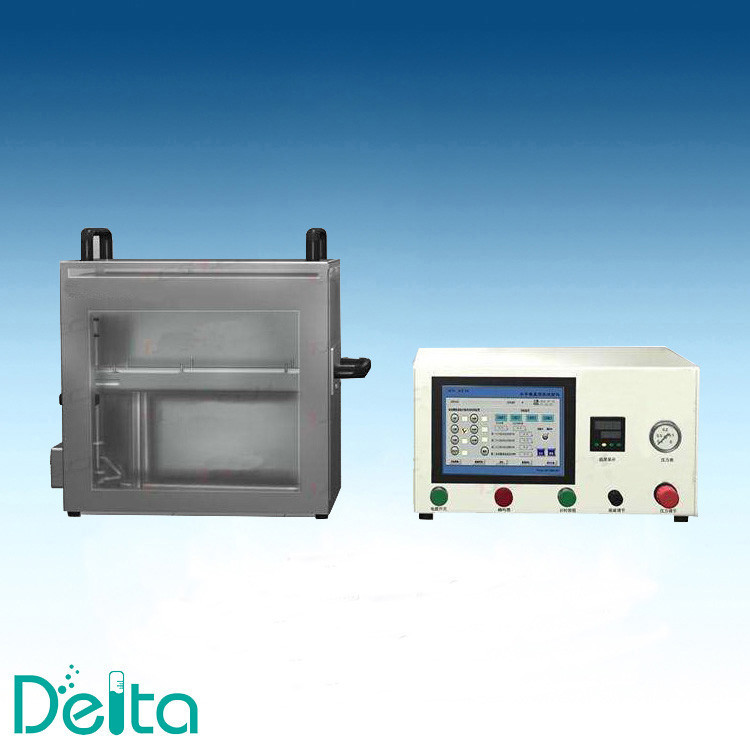

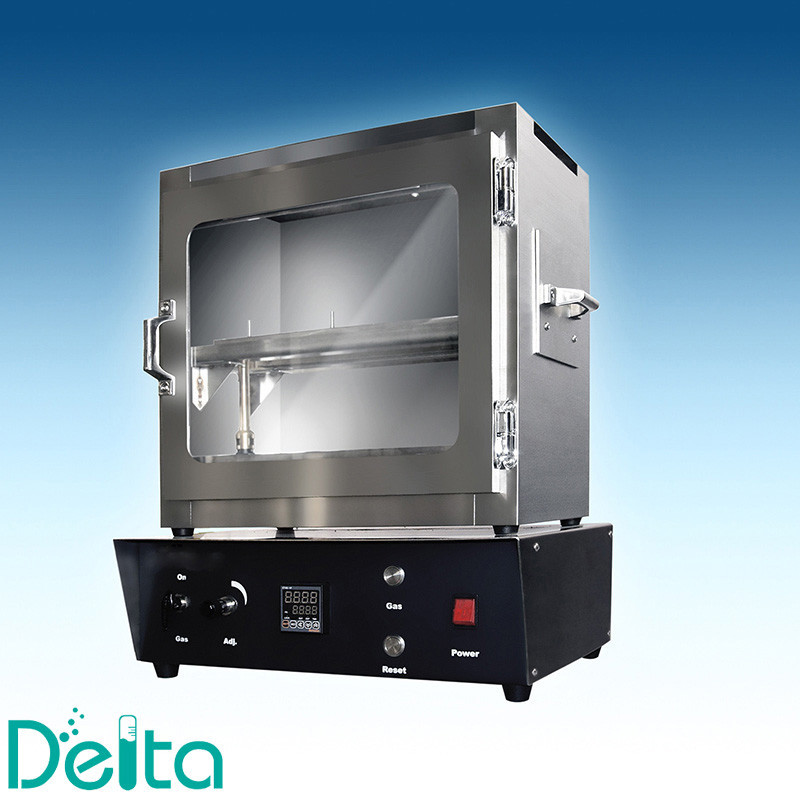

Hft ISO3795 Automotive Interior Materials Flammability Testing ChamberReal pictures:
