Vft ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus

  • Vft ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number VFT
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details Molten Metal Small Splashes Impact ISO9150 Tester packed in veneer case
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name Molten Metal Small Splashes Impact ISO9150 Tester Function Measure Flexible Materials Vertical Flame Spread
Description Fabrics Burning Behaviour Vertical Flame Tester Test Object Protective Clothing, Automotive Interior
Weight 36kg Dimension 410mm(W) X 900mm(H) X 380mm(D)
Payment Term 30% T/T As Deposit, The Balance Before Delivery Power Supply 230 Volts Nominal 10 AMPS
Leave a Message
Product Description

VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus



Introduction:



VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus is suitable for the measurement of limited flame spread properties of protective clothing.

The flame from the burner is applied for 10 s to the surface or the bottom of textile specimens which are vertically oriented.



Features:



VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus is designed and manufactured according to ISO 15025 standards.

The apparatus can be updated to meet the requirement of ISO6941, ISO 6940 etc by using different specimen holders.

VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus consists of mounting frame, gas burner, test specimen holder with supporting pins.

The angle of the burner can be pre-setted and adjusted automatically.

Burning time can be pre-setted and operate automatically.

Burning time and glowing time is recorded and can be read on LCD screen.



Product Parameters:



No. Item Name VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus
1 Application field Safety protection, Automotive Interior
2 Reference standards ISO 6941, ISO 15025
2 Dimension 410mm(W) X 900mm(H) X 380mm(D)
3 Weight 36kg
4 Power supply 230 volts Nominal 10 Amps
5 Ambient temperature Operating 25±5ºC
6 Gas supply Propane and compressed air

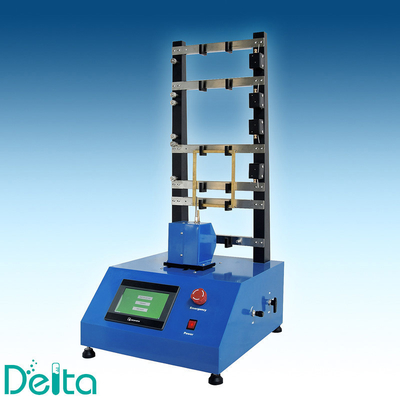

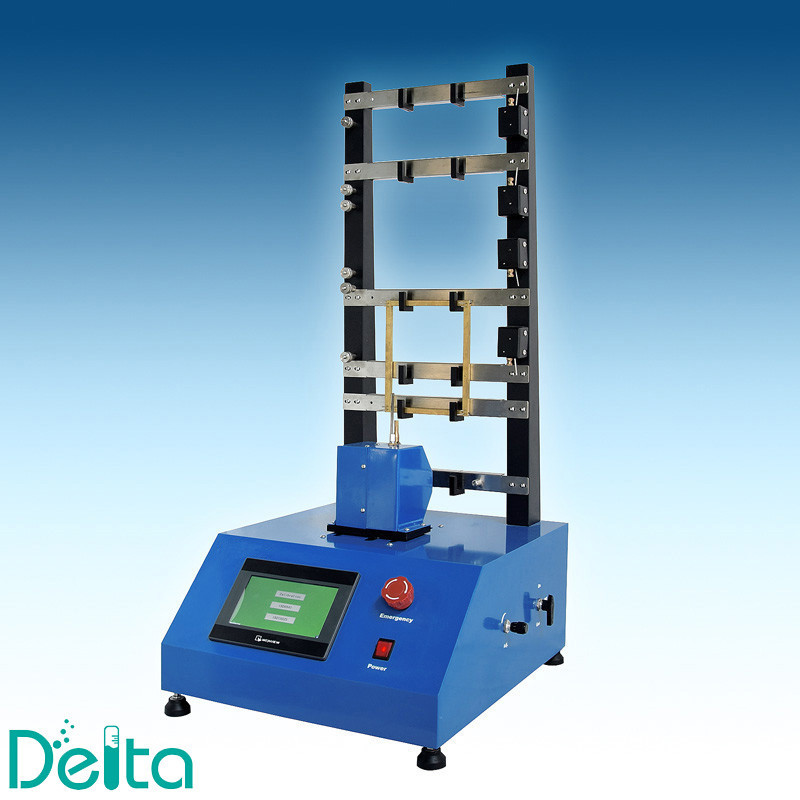

VFT ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus Picture:



Vft ISO 15025 Flexible Materials Vertical Flame Spread Test Apparatus 0
