VF-1 ASTM D6413 Textiles Test Vertical Flame Resistance Test Apparatus

  • VF-1 ASTM D6413 Textiles Test Vertical Flame Resistance Test Apparatus
Place of Origin China
Certification ISO9001
Model Number VF-1
Minimum Order Quantity 1 set Vertical Flame Resistance Test Apparatus
Price Negotiable
Packaging Details Vertical Flame Resistance Test Apparatus packed in veneer case.
Delivery Time 5-20 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100 sets Vertical Flame Resistance Test Apparatus each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features International Standard China Made Low Price Upholstered Furniture Flammability Tester Description VF-1 ASTM D6413 Textiles Test Vertical Flame Resistance Test Apparatus
Application For Textiles Test Vertical Flame Resistance Testing Application Field Textile, Children's Sleepwear, Upholstered Furniture, Etc.
Reference Standards CFR 1615/1616, ASTM D6413, CALIF TB117 Dimension 350mm(W) X 350mm(D) X 700(H)mm
Weight 8kg Gas Supply Methane
Power Supply 220V, 50Hz Warranty 1 Year
Leave a Message
Product Description

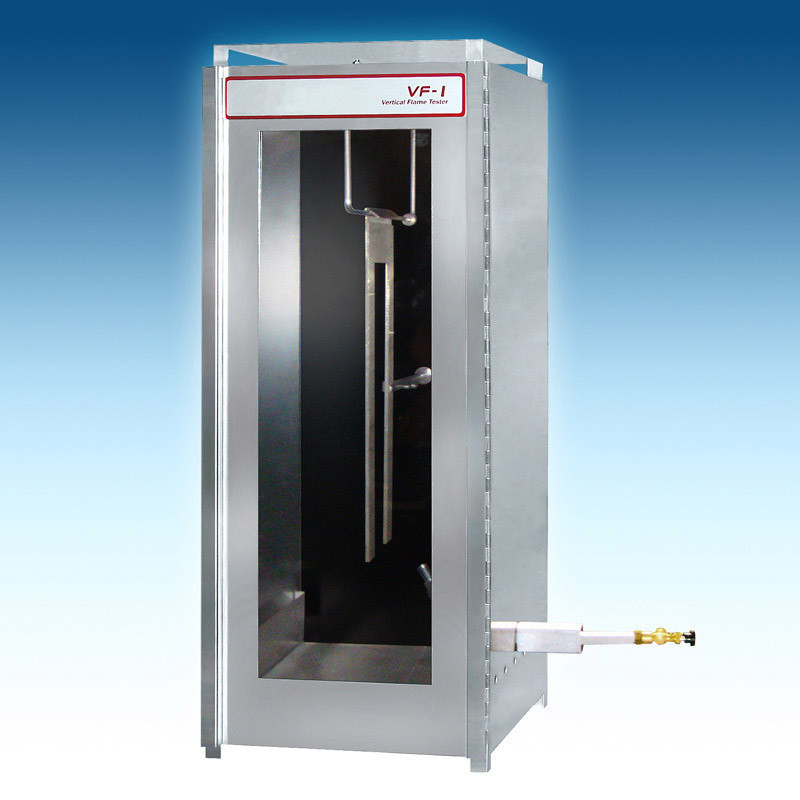

VF-1 ASTM D6413 Textile Vertical Flame Resistance Test Apparatus





Introduction:

VF-1 ASTM D6413 Textile Vertical Flame Resistance Test Apparatus is for measuring the vertical flame spread for children's sleepwear, fabrics, other textile materials or resilient filling materials used in upholstered furniture. Meet CFR 1615/1616, ASTM D6413 and CALIF TB117.​



Features:

  • Stainless steel test cabinet with glass observation panel.
  • Back wall painted black for easy test viewing.
  • Specimen holders, burner and associated hardware are dependent on the test standard and must be specified.
  • Separate enclosure for manual gas controls is located away from the flame chamber for operator convenience.Bunsen Burner assembly is available per request.



Specifications:

No. Item Name VF-1 ASTM D6413 Textile Vertical Flame Resistance Test Apparatus
1 Application field Upholstered Furniture
2 Reference standards CFR 1615/1616, ASTM D6413, CALIF TB117
2 Dimension 350mm(W) X 350mm(D) X 700(H)mm
3 Weight 8kg
4 Power supply 230 volts Nominal 10 Amps
5 Ambient temperature Operating 25±5℃
6 Gas supply Methane


VF-1 ASTM D6413 Textiles Test Vertical Flame Resistance Test Apparatus 0
