ISO3795 Automotive Interior Materials Burning Behaviour Horizontal Flammability Chamber

  • ISO3795 Automotive Interior Materials Burning Behaviour Horizontal Flammability Chamber
  • ISO3795 Automotive Interior Materials Burning Behaviour Horizontal Flammability Chamber
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number HFT
Minimum Order Quantity 1 set Horizontal Flammability Chamber in one order
Price USD1.0
Packaging Details Horizontal Flammability Chamber packed in veneer case.
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 10 sets Horizontal Flammability Chamber per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features ISO3795 Standard China Made High Quality Horizontal Flammability Chamber Item Name ISO3795 Automotive Interior Materials Burning Behaviour Horizontal Flammability Chamber
Function For Automotive Interior Materials Burning Behaviour Testing Application Field Automotive Interior
Reference Standards ISO 3795, ASTM D5132, FMVSS 302 Dimension 430 Mm (W) X 310 Mm (D) X 360 Mm (H)
Weight 12kg Packing Mode Veneer Case
Warranty Period 1 Year Service Installation And Commissioning Service Is Available
Highlight

ISO3795 flammability test chamber

,

automotive interior flammability tester

,

horizontal burning behavior chamber
Leave a Message
Product Description

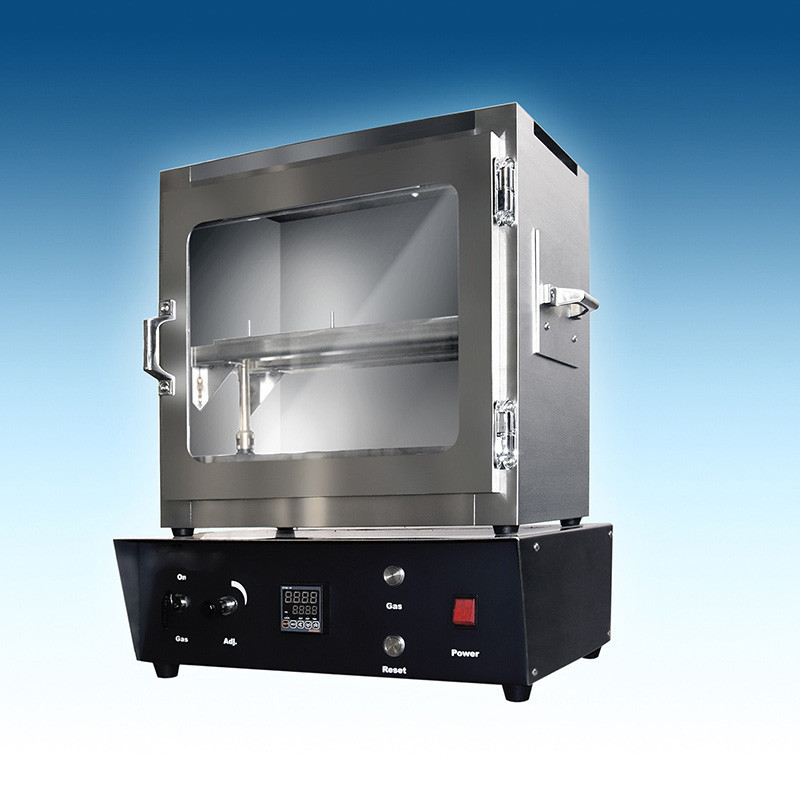

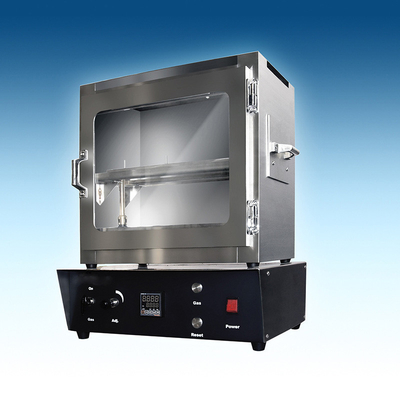

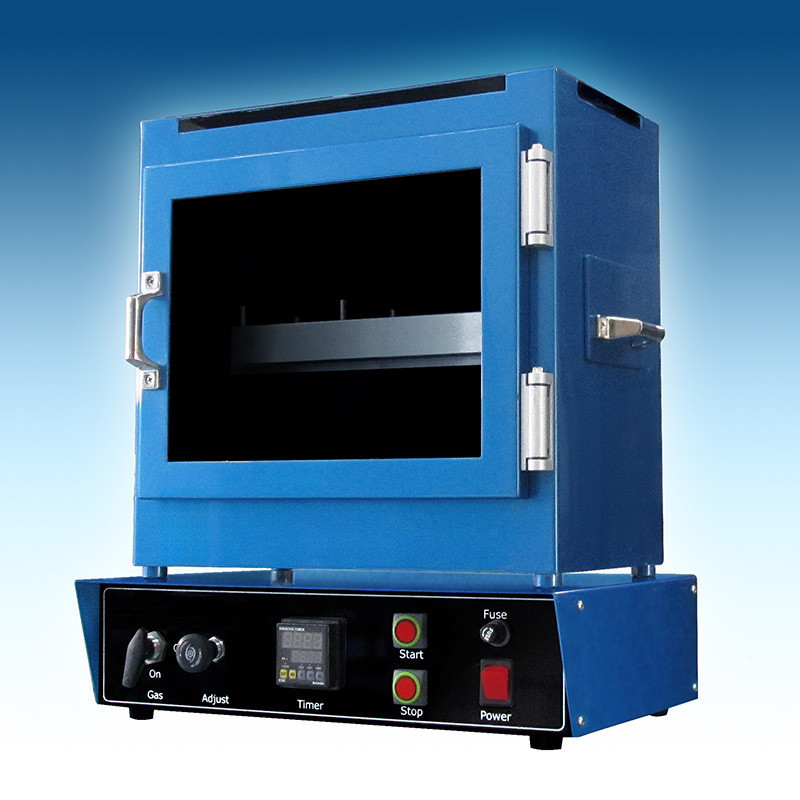

HFT Automotive Interior Horizontal Flammability Chamber



Introduction:

  • EC Directive 95/28/EC relates to the burning behavior of materials used in the interior construction of certain categories of motor vehicles, and is intended to ensure that they meet fire safety standards.
  • 95/28/EC fire test to interior material of motor vehicle to determine the Characteristic of Burning: Horizontal Burning Behavior, Vertical Burning Behavior and Burning Dropping.
  • HFT Automotive Interior Horizontal Flammability Chamber can be used for determining the horizontal burning rate of motor vehicle materials.



Features:

  • HFT Automotive Interior Horizontal Flammability Chamber is suitable to determination for flammability, after burning, flame resistance and burning speed in car organic materials.
  • Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.
  • Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
  • Automated control of timing and gas supply.



Specifications:

No. Item Name HFT Automotive Interior Horizontal Flammability Apparatus
1 Application field Automotive Interior
2 Reference standards FMVSS: FMV SS302; ISO: ISO 3795; ASTM D5132
2 Dimension 430 mm (W) x 310 mm (D) x 360 mm (H)
3 Weight 12kg
4 Power supply 230 volts Nominal 10 Amps
5 Ambient temperature Operating 25±5℃
6 Gas supply Propane


ISO3795 Automotive Interior Materials Burning Behaviour Horizontal Flammability Chamber 0
