Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | HTI |
| Minimum Order Quantity | 1 set ISO9151 testing equipment in one order. |
| Price | Negotiable |
| Packaging Details | Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard packed in veneer case. |
| Delivery Time | 10-20 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | EN367, EN ISO9151 Standard, China Made High Quality Low Price | Description | Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard |
|---|---|---|---|
| Application | Determine The Heat Transmission Through Materials Or Material Assemblies Used In Protective Clothing | Application Field | Safety Protection |
| Reference Standards | EN ISO9151, EN367 | Control Method | Computer And Software |
| Consist | Burner, The Cover Sheet And The Specimen Holder With Copper Calorimeter | Dimension | 500mm（W）X 500mm（H）X 500mm（D） |
| Weight | 25kg | Warranty | 1 Year |
| Highlight | Protective clothing heat resistance tester,ISO9151 fire testing equipment,Heat transmission testing machine |
||
Product Description

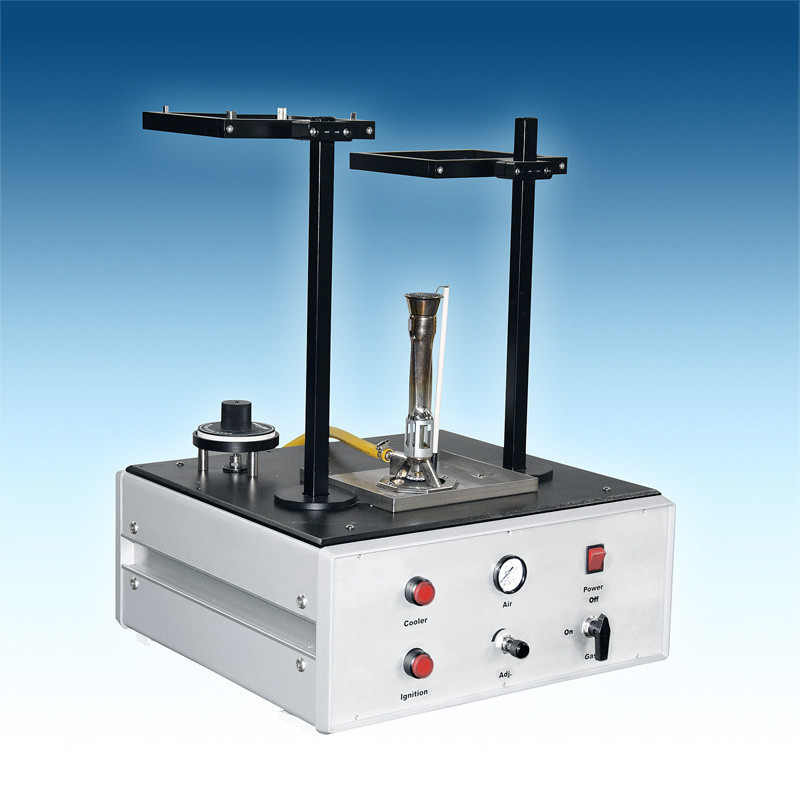

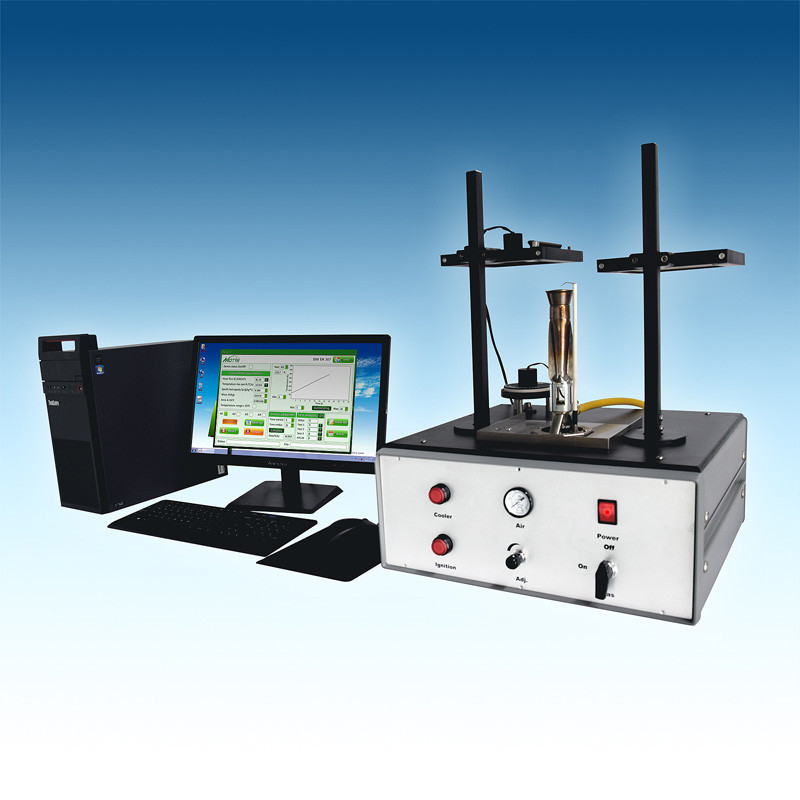

Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard
Introduction:
- A new term heat transfer index (HTI) has been introduced to avoid confusion with the thermal protective index (TPI) or other terms used in previous versions of this test.
- HTI calculated from the mean time in seconds to achieve a temperature rise of 24±0.2℃ when testing by this method using a copper disc and a starting temperature of 25±5℃.
- Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard is used to determine the heat transmission of flame exposure to protective clothing against heat and flames. A classification of materials can be made by comparing the determined heat transfer indices, which serve as a reference for the relative heat transfer under the specified test conditions.
Features:
- Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard is designed and manufactured according to EN 367 and ISO9151 standards.
- Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard consists of the burner, the cover sheet and the specimen holder with copper calorimeter.
- The cover sheet and the specimen holder are controlled via pneumatic transmission which is automatically controlled by software.
- A horizontally oriented test specimen subjected to an incident heat flux of 80KW/㎡from the flame of a Meker burner beneath it.
- The heat passing through the specimen is measured by means of a small copper calorimeter on top of and contact with the specimen.
- The time to record a temperature rise of 12 or 24℃ in the calorimeter is recorded in seconds.
- The calorimeter cooling device shorten the test time.
- The mean result for the three test specimens is calculated as the HTI.
- The calibration of heat flow density of 80 kW/㎡is performed automatically by software.
Specifications:
| No. | Item Name | Protective Clothing Heat Transmission Testing Equipment ISO9151 Standard |
| 1 | Application field | Safety protection |
| 2 | Dimension | 500mm(W)X 500mm(H)X 500mm(D) |
| 3 | Weight | 25kg |
| 4 | Power supply | 230 volts Nominal 10 Amps |
| 5 | Ambient temperature | Operating 25±5℃ |
| 6 | Gas supply | Propane and air compressed air |
