NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus for Melting Materials

  • NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus for Melting Materials
  • NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus for Melting Materials
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number NF P92-505
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details NF P92-505 Fire Test Dripping Tester to Building Material packed in veneer case
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features International Standard Dripping Test Apparatus Item Name NF P92-505 Fire Test Dripping Tester To Building Material
Dimension 520mm(W) * 650mm(H) * 350mm(D) Gross Weight 28kg
Application Reaction To Fire Complementary Test Test Standards Nfp 92-503,95/28/Ec,ECE R118 Annex 7
Description Building Material Dripping Tester Oil Cylinder Position Dripping Test Apparatus
Leave a Message
Product Description

NF505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus

Introduction:


The Dripping Tester, in accordance with NF P92-505/ECE R118, is used to determine the melting behaviour of materials under a 500W radiant heat source.

Working Principle:
During the NF P92-505 test, a specimen is placed horizontal and exposed to an electric radiator above. A receptacle is positioned under the specimen to collect the resultant drops. Some cotton wool is put in the receptacle in order to verify if any drop is flaming.

Application Field:
Building Materials;
Rail;
Automotive interior;

Features:

Dripping Tester consists of:
• France original epiradiator-type heat radiation source, power rated at 500W, which radiant surface is made of a translucent vitreous fused silica disk of 100 mm diameter.
• A movable handle device allows to slightly turn the epiradiator above the specimen or remove it.
• Specimen support stand, with height adjustment function.
• A receptacle is positioned 300mm under the specimen holder to collect the drops.
• A power control unit for epiradiator radiant rate control.
• Calorimeter in accordance with NF P92-505, for epiradiator calibration.
• Water-cooled heat flux meter in accordance with ECE R118 Annex 7, for epiradiator calibration.



Parameters:



No. Item Name NF505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus
1 Dimension 520mm(W) * 650mm(H) * 350mm(D)
2 Weight 29kg
3 Power supply 110 to 230 V 10 Amps
4 Ambient temperature Operating 10°C to 35°C

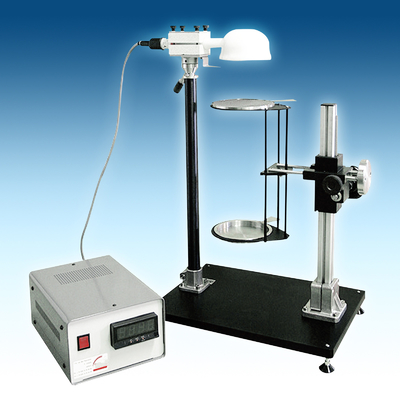

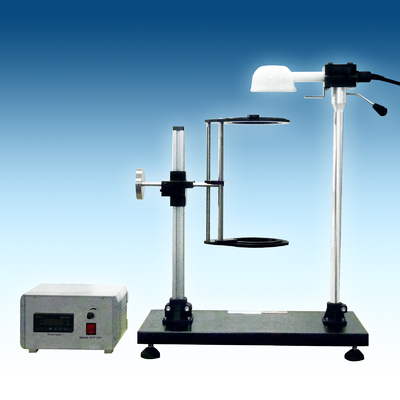

NF505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus Tester Picture:



NF P92-505 Flame Test Equipment Thermal Radiation Dripping Test Apparatus for Melting Materials 0
