CCT Solid Materials Heat Testing Oxygen Consumption Calorimeter

CCT Solid Materials Heat Testing Oxygen Consumption Calorimeter

Introduction:

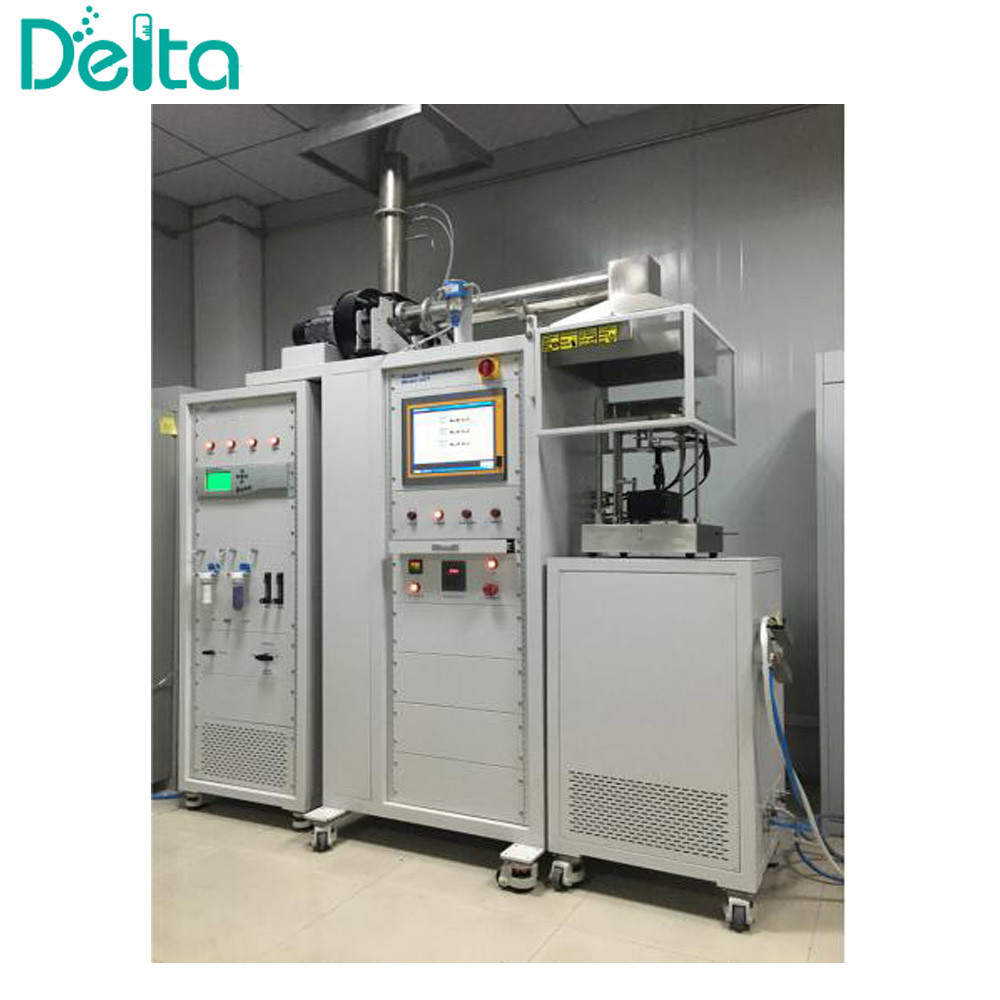

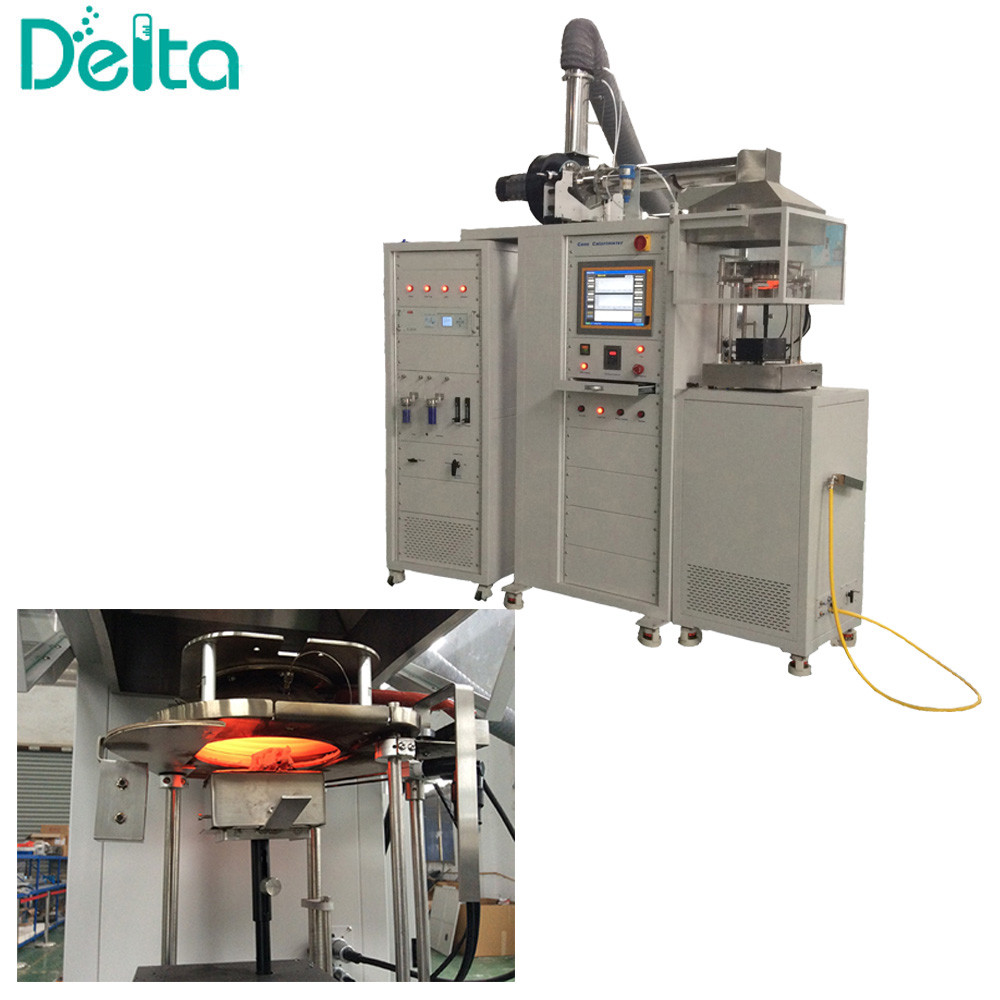

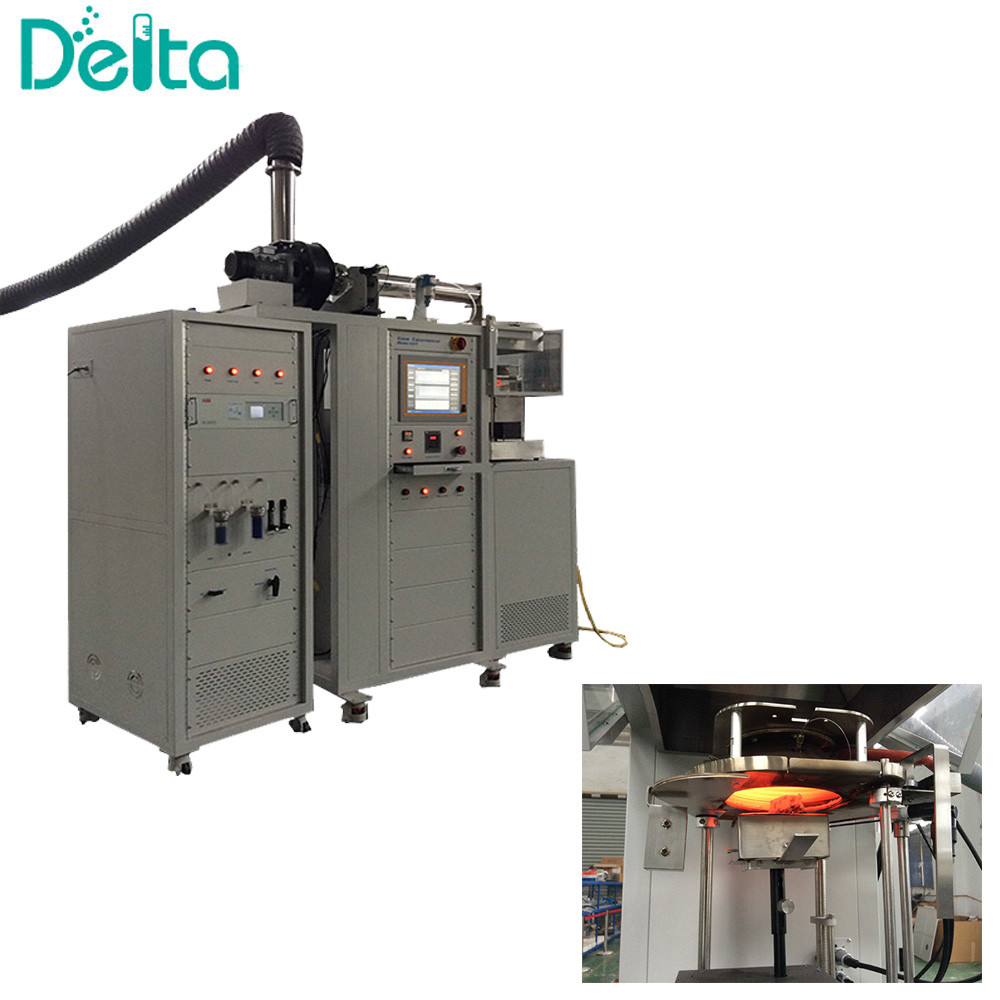

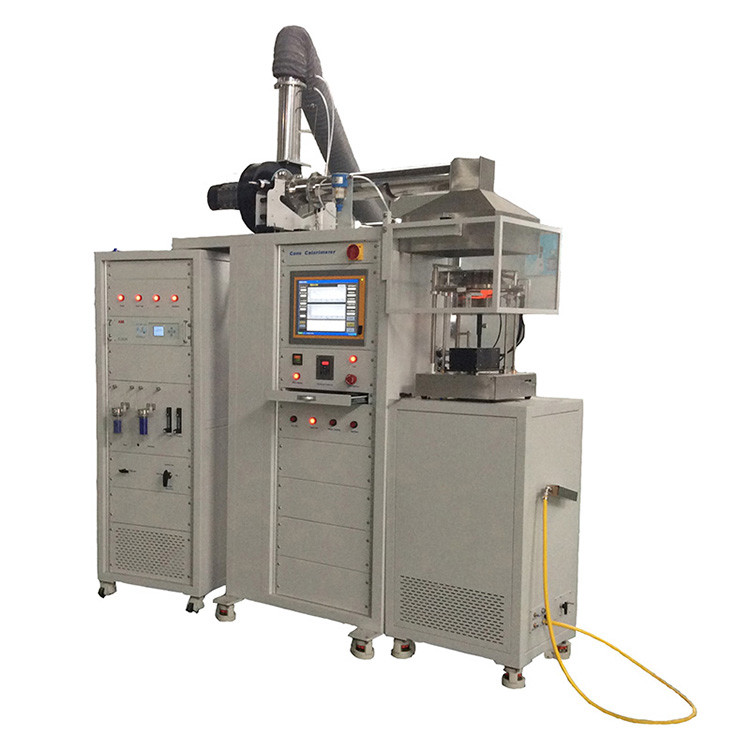

The CCT Oxygen Consumption Calorimeter is designed and manufactured according to international standards and mainly for building products and electric cable testing.
The analysis cabinet of our CCT Cone Calorimeter can be moved, it can be used for cone calorimeter tests, and it can also be used in large heat release rate test systems such as Single Burning Item(SBI), cable burning test systems, etc.

Application Field:

Building products;
Railway rolling-stock applications;
Maritime applications;
Electric cables;
Etc;

Measured properties:

Features:

• ABB Gas feed unit, Model SCC-S, including 1 gas path, condensate monitor, pump and flow controller with needle valve Peltier cooler and condensate pump. SCC-S can remove water automatically.
• ABB EL3020-Uras26+ Magnos206, CO 0-1%, CO2 0-10%, automatic calibration of CO & CO2, does not require the use of mixture of CO&CO2 gas. O2 0-25%, Only once a month is used to calibrate the zero point with the nitrogen,
• Smoke Obscuration - measured with a laser system, using photodiodes, and a 0.5 mW Helium Neon laser, with main and reference (compensating) photo detectors. Supplied with alignment cradle and 0.3, 0.8 neutral density filters for calibration.
• Medtherm Heat Flux Meter - for setting the irradiance level at the surface of the specimens, the range from 0-100KW/m2.
• Provide the Self circulation cooling water to cool heat flux meter, without External tap water.
• Calibration Burner - to calibrate the rate of heat release measured by the apparatus using methane of 99.5% purity.
• Methane MFC, to control the flow rate of Methane automatically.
• OMRON PLC to control all movement such as Split Shutter, Spark Igniter etc.
• DAQ(Data Acquisition) Program controllable with the touch screen panel PC
• Provide 10units of PMMA samples for comparison testing.

Parameters:
