Rapid Speed Coal Calorific Value Testing Automatic Coal Calorimeter
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CVT |
| Minimum Order Quantity | 1 set Coal Calorimeter in one order |
| Price | Negotiable |
| Packaging Details | Coal Calorimeter is packed in veneer case. |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Large Touch Screen, ISO1716 Standard, Automatic, Rapid Test Speed | Description | Rapid Speed Coal Calorific Value Testing Automatic Coal Calorimeter |
|---|---|---|---|
| Usage | For Coal Calorific Value Testing | Applicable Test Specimend | Coal, Petroleum Oil, Building Material, Etc. |
| Reference Standard | ISO1716 | Bomb Volume | 300ml |
| Inner Cylinder Volume | 2000ml | Test Time | <15min |
Product Description

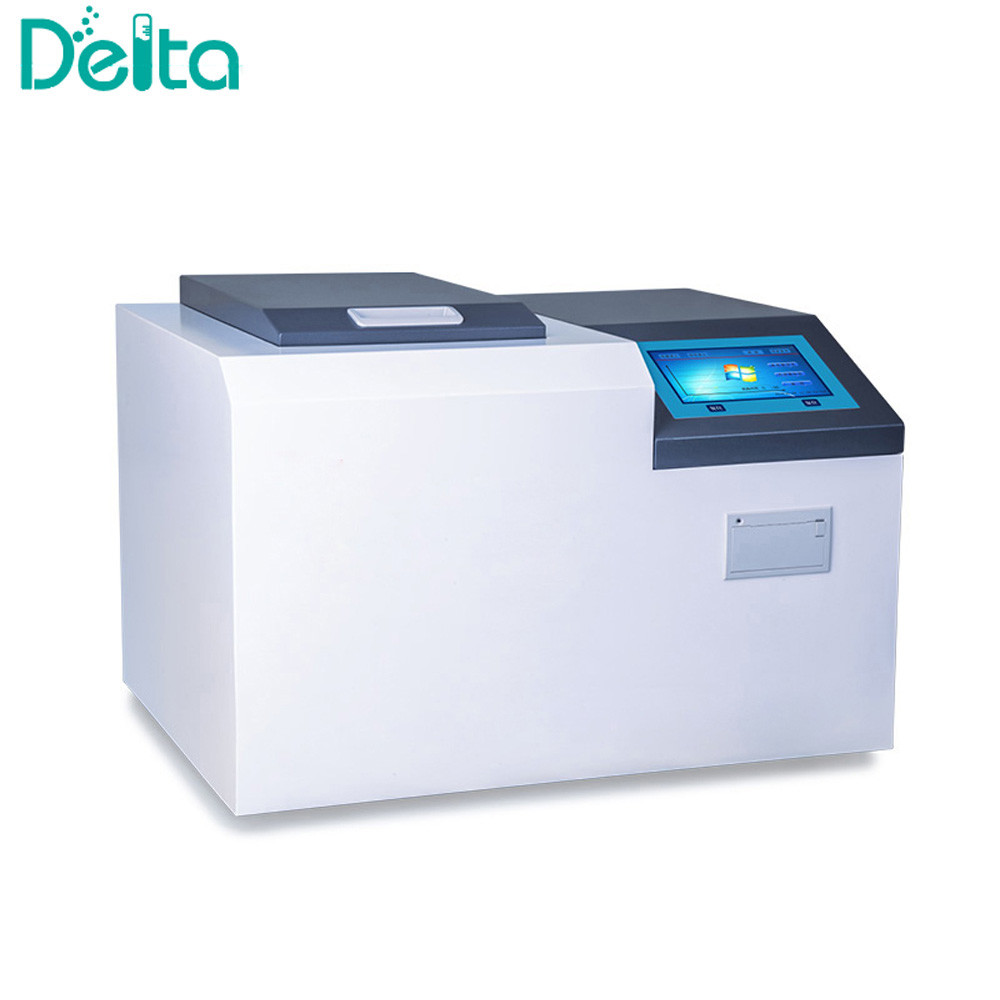

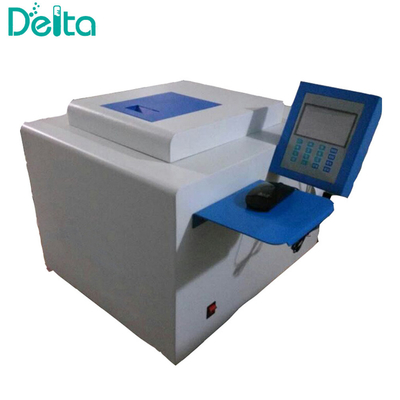

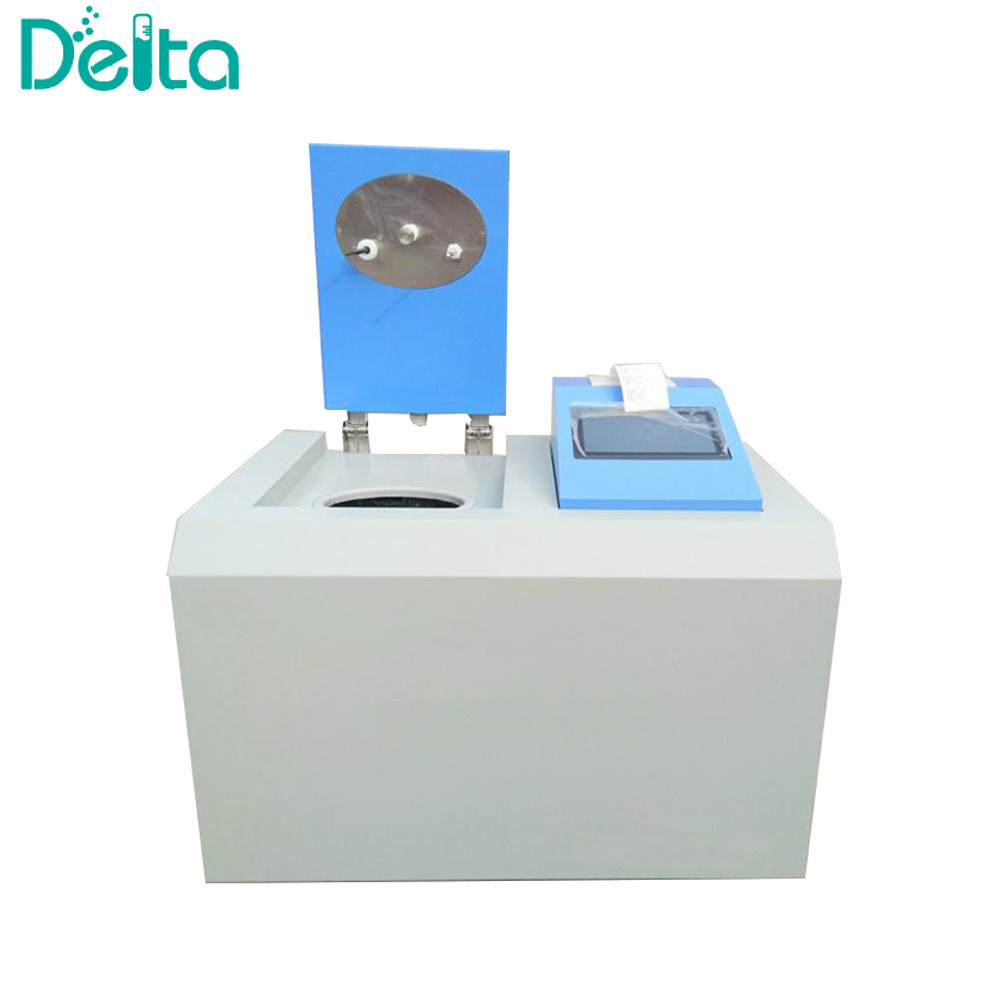

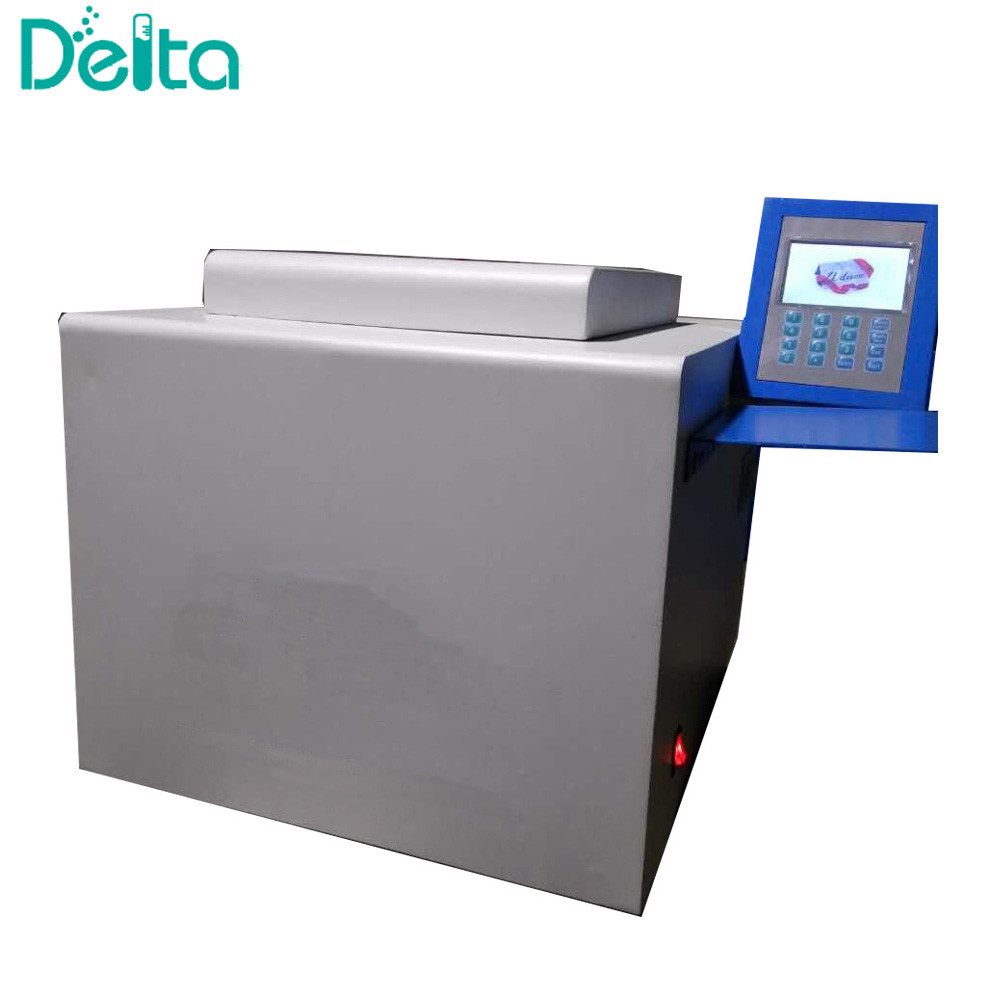

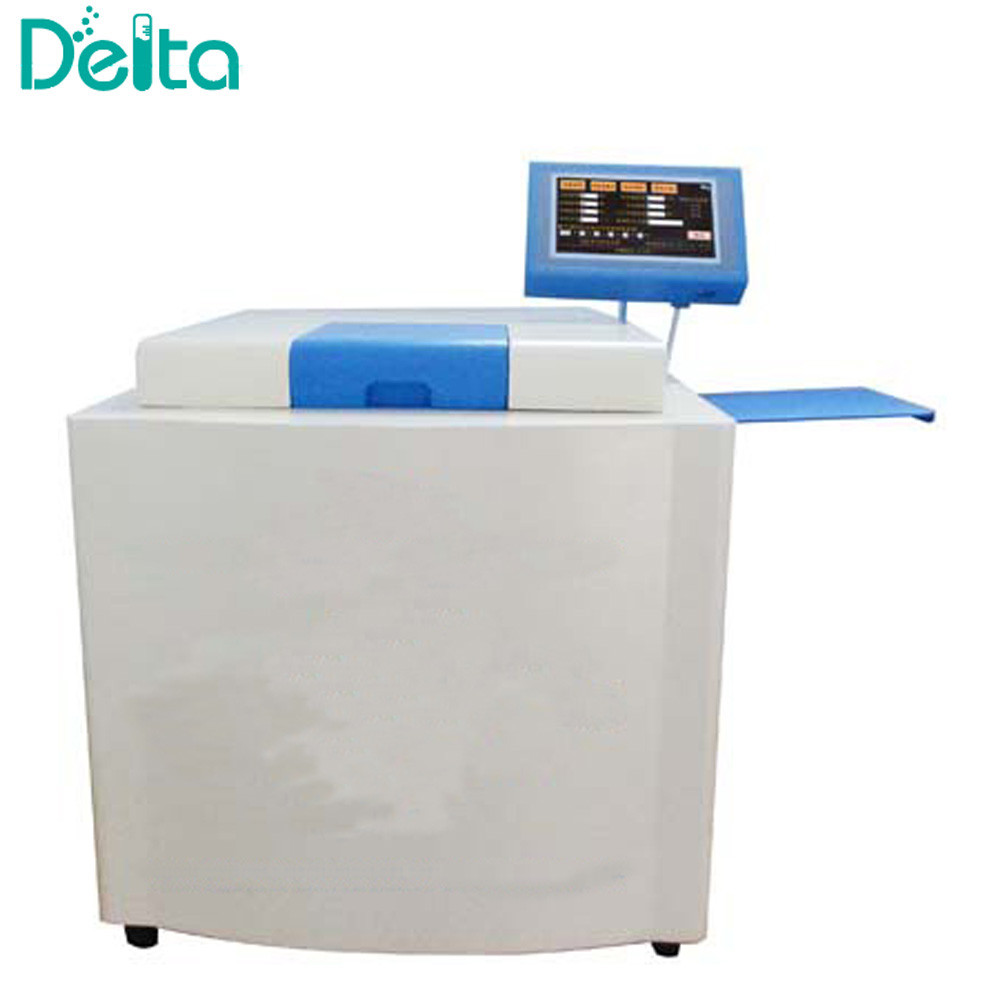

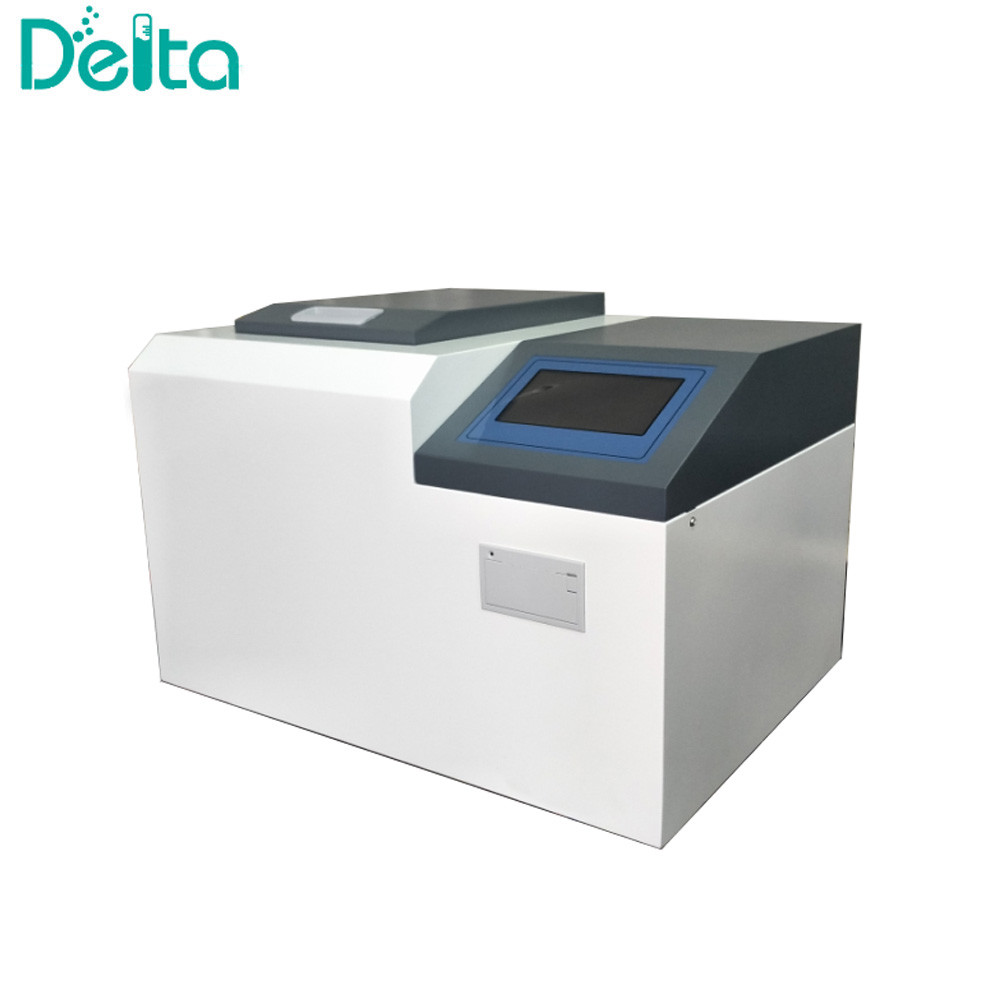

CVT Coal Calorific Value Testing Automatic Coal Calorimeter
Introduction:
-
Gross heat of combustion of materials is an important parameters to evaluate building materials heat release and fire base data;
-
CVT Coal Calorific Value Testing Coal Calorimeter is the most common device for measuring the heat of combustion or calorific value of material by putting the specimen into the oxygen cell.
-
Our CVT is designed and manufactured as per GB/T14402-2007 and ISO1716 standards, which is suitable for calorific value of building materials testing.
-
It is stable, high accurate and easy for operation.
Parameters:
| Item Name | CVT Rapid Coal Calorific Value Testing Automatic Coal Calorimeter |
| Heat capacity | 10000J/K |
| Temperature range | (4.5-50)℃ |
| Bomb volume | 300±50ml |
| Inner cylinder volume | 2000ml |
| Stirring speed | 375r/min |
| Stirring power | 3W |
| Stirring method | Motor directly inserted into inner cylinder for mixing |
| Oxygen bomb sealing | no leakage under 3.0-3.5MPa |
| Oxygen bomb withstand pressure | 21MPa |
| Test time | <15min |
| Timer accuracy | 0.5s |
| Repeatability | ≤60(J/K) |
| Power supply | AC220V±10%, 50Hz |
Features:
- Adopt American advanced embedded technology, 7-inch large-screen color touch screen operation, and integral installation method to ensure the firmness of the touch screen. CRT Material makes the touch screen more durable.
- Direct operation, without external computer, which is convenient for use.
- Automatic water injection, no need to adjust the water temperature, just install the aerobic bomb into the barrel, and the instrument can automatically do all tests.
- With fault diagnosis function and built-in reminder will remind whether the ignition is successful.
- Using special foam insulation technology, it is not affected by external temperature during the experiment.
- Heat capacity repeatability≤0.2%, precision ＜0.1%, temperature resolution 0.0001K.
- Reasonable structure, reliable performance, low failure rate, high precision, easy installation and maintenance.
