ISO1716 Combustion Calorimeter for Building Products Reaction to Fire Test
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | CVT-I |
| Minimum Order Quantity | 1 set ISO1716 Combustion Calorimeter |
| Price | Negotiable |
| Packaging Details | ISO1716 Combustion Calorimeter packed in veneer case. |
| Delivery Time | 3-7 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100 sets ISO1716 Combustion Calorimeter each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO1716 Standard, Stable, High Accurate And Low Price ISO1716 Combustion Calorimeter | Description | ISO1716 Combustion Calorimeter For Building Products Reaction To Fire Test |
|---|---|---|---|
| Functions | Mesure Heat Cumbustion, Calorific Value Of Building Material By ISO1716 Method, Building Products Reaction To Fire Test | Application Field | Building Material, Rail, IMO, Etc. |
| Reference Standard | ISO1716 | Bomb Volume | 300ml |
| Inner Cylinder Volume | 2000ml | Test Time | <15min |
| Test Method | Touch Screen | ||
| Highlight | ISO1716 combustion calorimeter,building materials fire test equipment,reaction to fire testing calorimeter |
||
Product Description

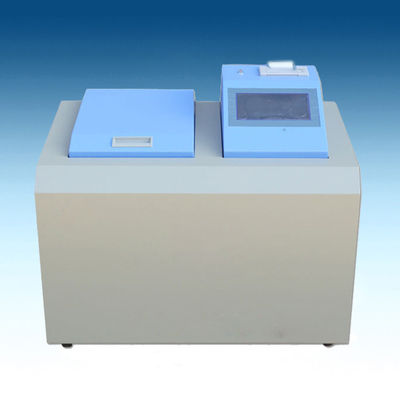

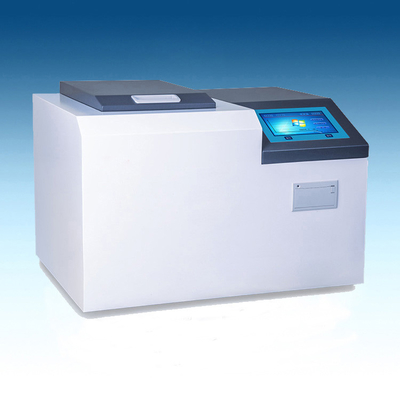

CVT Building Products ISO1716 Combustion Calorimeter
Introduction:
- Gross heat of combustion of materials is an important parameters to evaluate building materials heat release and fire base data;
-
CVT Building Products ISO1716 Combustion Calorimeter is the most common device for measuring the heat of combustion or calorific value of material by putting the specimen into the oxygen cell.
- Our CVT Building Products ISO1716 Combustion Calorimeter is designed and manufactured as per GB/T14402-2007 and ISO1716 standards, which is suitable for calorific value of building materials testing.
- CVT Building Products ISO1716 Combustion Calorimeter is stable, high accurate and easy for operation.
Parameters:
| Item Name | CVT Building Products ISO1716 Combustion Calorimeter |
| Heat capacity | 10000J/K |
| Temperature range | (4.5-50)℃ |
| Bomb volume | 300±50ml |
| Inner cylinder volume | 2000ml |
| Stirring speed | 375r/min |
| Stirring power | 3W |
| Stirring method | Motor directly inserted into inner cylinder for mixing |
| Oxygen bomb sealing | no leakage under 3.0-3.5MPa |
| Oxygen bomb withstand pressure | 21MPa |
| Test time | <15min |
| Timer accuracy | 0.5s |
| Repeatability | ≤60(J/K) |
| Power supply | AC220V±10%, 50Hz |
Features:
- Adopt American advanced embedded technology, 7-inch large-screen color touch screen operation, and integral installation method to ensure the firmness of the touch screen. CRT Material makes the touch screen more durable.
- Direct operation, without external computer, which is convenient for use.
- Automatic water injection, no need to adjust the water temperature, just install the aerobic bomb into the barrel, and the instrument can automatically do all tests.
- With fault diagnosis function and built-in reminder will remind whether the ignition is successful.
- Using special foam insulation technology, it is not affected by external temperature during the experiment.
- Heat capacity repeatability≤0.2%, precision ＜0.1%, temperature resolution 0.0001K.
- Reasonable structure, reliable performance, low failure rate, high precision, easy installation and maintenance.
