XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber

  • XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber
  • XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber
  • XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number XP-2
Minimum Order Quantity 1 set ASTM D2843 Smoke Density Test Chamber
Price USD1.0
Packaging Details ASTM D2843 Smoke Density Test Chamber packed in veneer case.
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 10 sets ASTM D2843 Smoke Density Test Chamber per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features ASTM D2843 Standard, High Quality Low Price Smoke Density Test Chamber Item Name XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber
Function For Building Material Smoke Density Testing Application Field Building Material
Reference Standards ASTM D2843 Dimension 800 Mm (W) X 500 Mm (D) X 1000 Mm (H)
Weight 35kg Packing Mode Veneer Case
Warranty Period 1 Year Service Installation And Commissioning Service Is Available
Leave a Message
Product Description

XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber



Introduction:

  • XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber is designed and manufactured in accordance with ASTM D2843 standard , it is mainly for building products testing.

  • By detecting the loss of light transmission in test chamber, XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber can measure smoke density of burning and decomposition of building material during test.



Features:

  • The test chamber is Teflon coating, to resist the corrosion of smoke released during burning.

  • Light source is incandescent lamp, the photoelectric sensor is silicon photodiode, which has cosine calibration function.

  • Color filter is equipped to filter out ultraviolet light and infrared light.

  • Gas pressure of main burner is 256KPA, it is subjected to flame impact on test specimen.

  • Gas pressure of auxiliary burner is 138KPA, it can continue burn the molten droplets.

  • The computer and test software are equipped.





Parameters:

No.

Item Name

XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber

1

Dimension

800 mm (W) x 500 mm (D) x 1000 mm (H)

2

Weight

35kg (computer is not included)

3

Power supply

220V, 10A, 50Hz,

4

Ambient temperature

10 ~ 35 Centigrade

5

Installation place

Fume hood

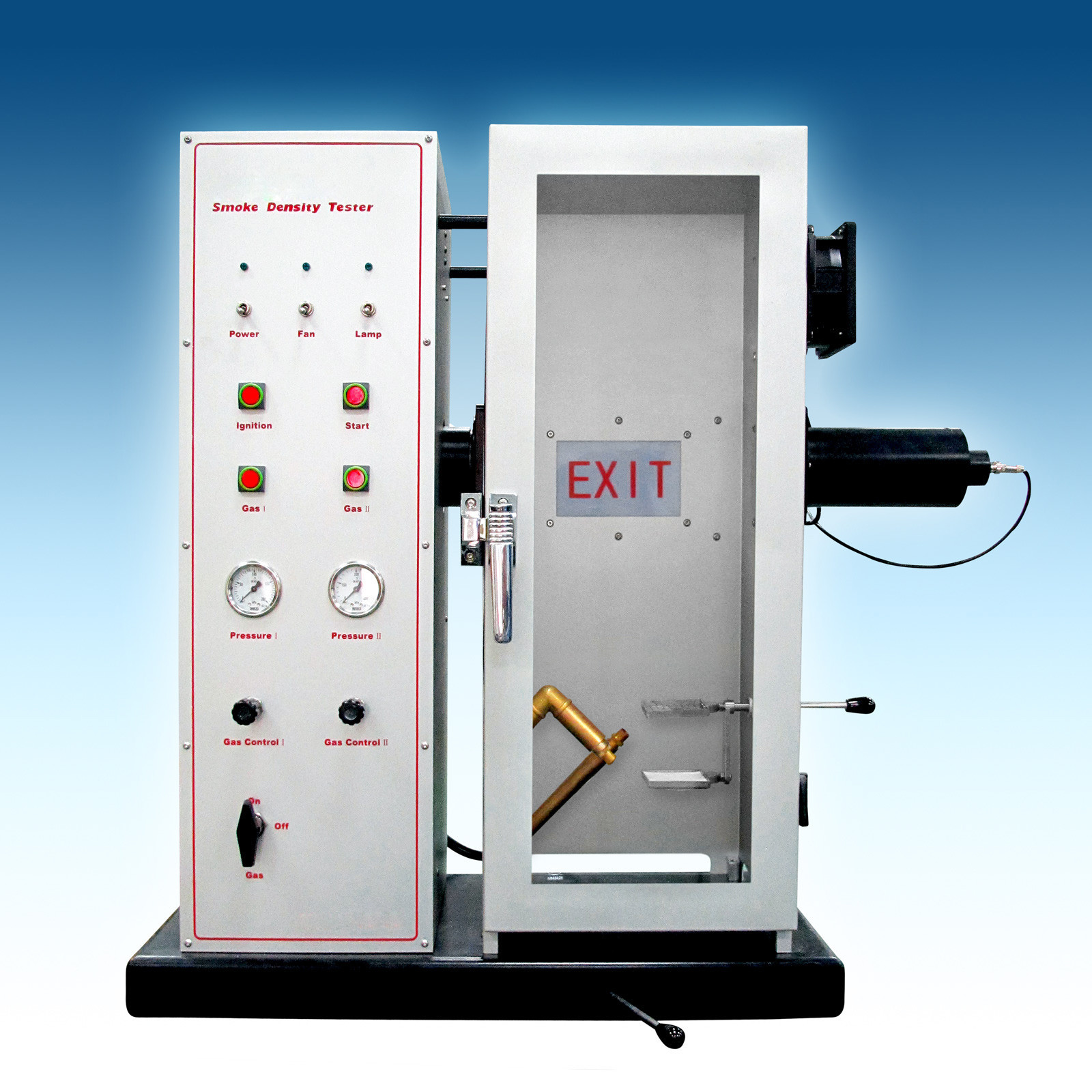

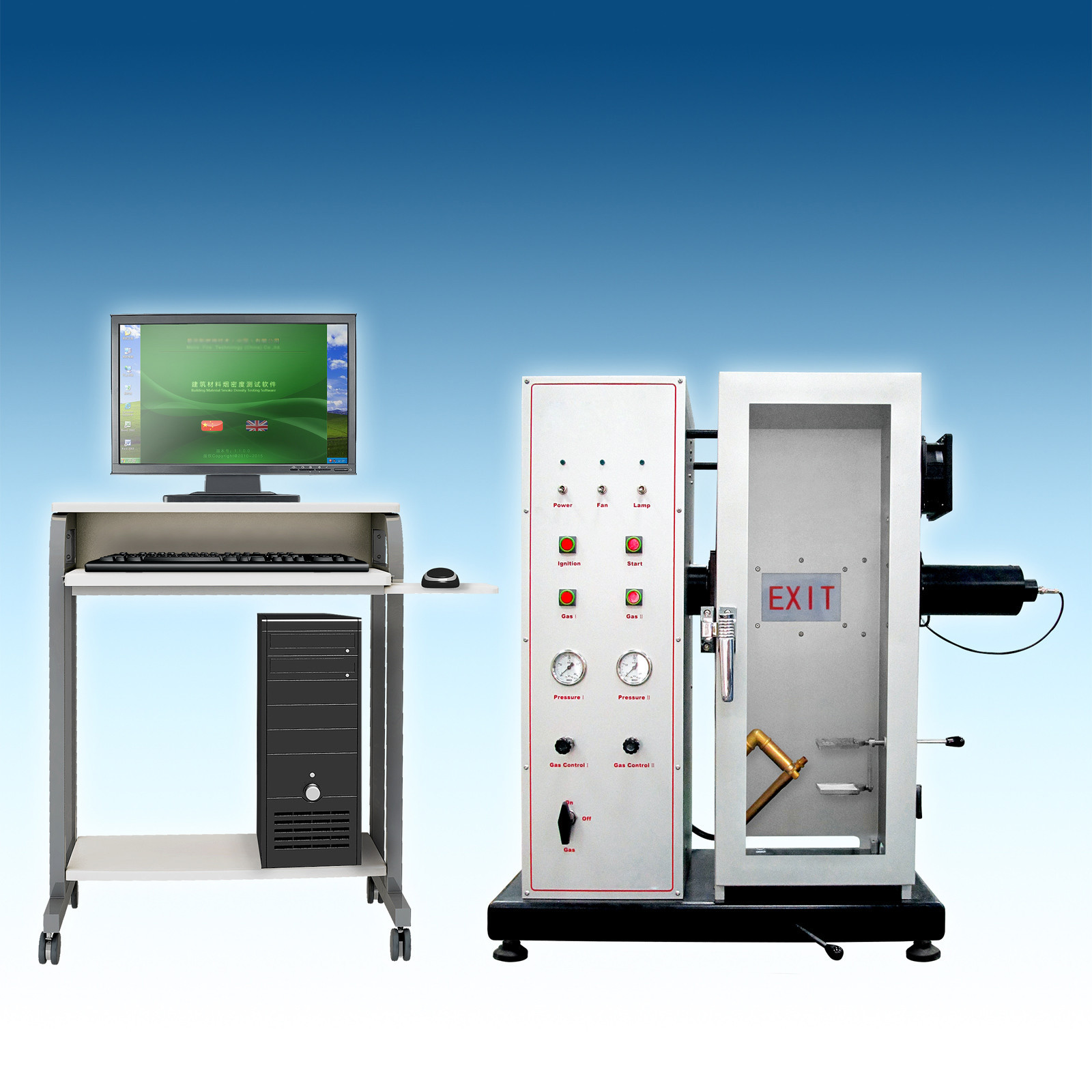

XP-2 Smoke Density Test Chamber Real Picture:

XP-2 Plastic Building Material ASTM D2843 Smoke Density Test Chamber 0
