Nonflammability Tester for Noninflammable Material as per ISO 1182
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Nonflammability Tester For Noninflammable Material As Per ISO 1182 | Function | For Building Material Noninflammable Testing, Non-combustibility Tester For Noninflammable Material As Per ISO 1182 |
|---|---|---|---|
| Application Field | Building Material, Rail | Reference Standards | ISO1182, KS F 2271 |
| Control Method | Computer Control | Dimension | 530 Mm (W) × 270 Mm (D) × 280 Mm (H) |
| Weight | 65kg | Packing Mode | Veneer Case |
| Warranty Period | 1 Year | Service | Installation And Commissioning Service Is Available |
Product Description
NCF Nonflammability Tester as per ISO1182
Introduction:
-
NCF Nonflammability Tester is designed and manufactured in accordance with EN ISO1182 standard , it is mainly for building products testing.
-
NCF Nonflammability Tester is mainly used in the non-combustibility test for building materials, and is suitable for classification of combustion performance of Class A fireproof materials.
-
NCF Nonflammability Tester is also comply to BS 476-4 & 11 and IMO FTP Part 1 standards. So it can also test UK building materials, railway materials and non-metallic products of vessel.
-
NCF Nonflammability Tester is suitable for both composite products and materials of the components testing.
Features:
-
NCF Nonflammability Tester measures in-combustibility and combustibility of uniform building material and non-uniform building material of actual element.
-
The evaluations (results) are rising temperature in the furnace, basic mass loss and ignition of specimen.
-
Single Zone Furnace operable at up to 900 oC with the Kanthal Ribbon Heater.
-
750±5oC temperature automatically control by PID and Power controller.
-
Provided with stabilized voltage supply for more quick temperature stabilization.
-
Equipped with 3 thermocouples, for temperature in furnace, specimen center, and specimen surface respectively.
-
360 degree rotatable and height adjustable thermocouple scanning device.
-
Inner furnace thermocouple device to calibrate the temperature of furnace.
-
Testing results include Mass Loss(g) and Rate(%) ,Ignition Time(s) and Sustained Flaming(s) ,Initial & Maximum Furnace Temperature(oC) ,Final Furnace Temperature(oC) ,Maximum Specimen Center Temperature(oC) ,Final Specimen Center Temperature(oC) ,Furnace Temperature Rise(oC) ,Specimen Center & Surface Temperature Rise(oC).
Parameters:
|

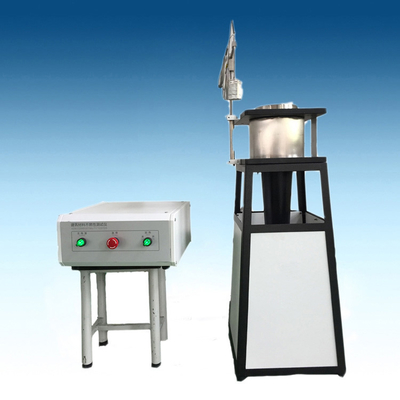

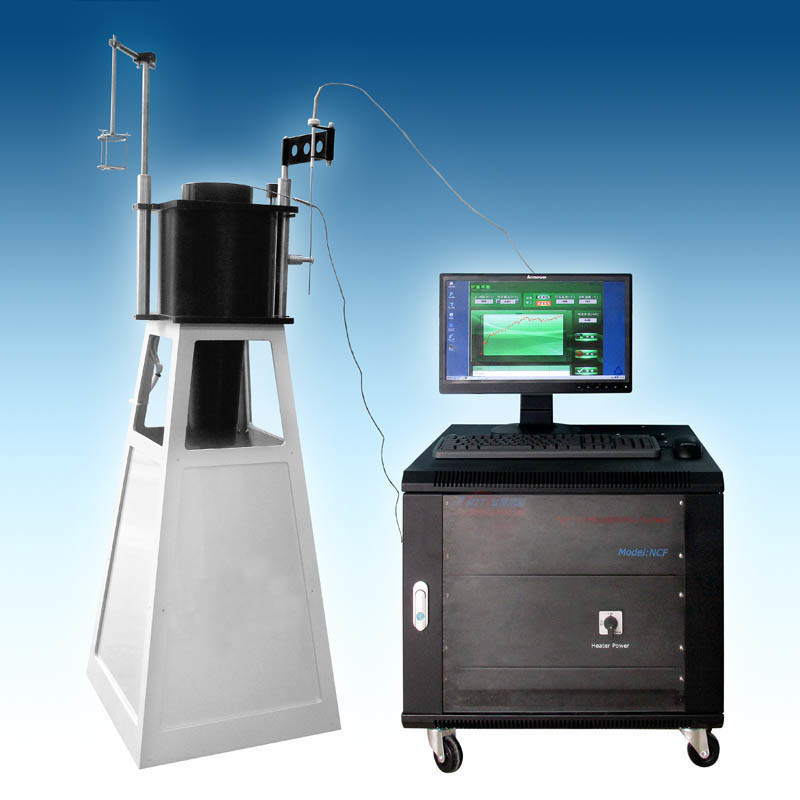

NCF Nonflammability Tester Real Picture:
