SIT DIN Standard Flammability Test Apparatus Combustible Materials Edge Ignition
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | SIT |
| Minimum Order Quantity | 1 set Flammability Test Apparatus |
| Price | USD1.0 |
| Packaging Details | Flammability Test Apparatus packed in veneer case |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | SIT DIN Standard Flammability Test Apparatus Combustible Materials Edge Ignition | Function | For Combustible Material Flammability Testing |
|---|---|---|---|
| Application Field | Building Material, Rail, Automotive Interior | Reference Standards | ISO11925-2, DIN 4102-1, IEC 61730-2:2016 |
| Dimension | 850 Mm*450 Mm*800 Mm | Weight | 24kg |
| Packing Mode | Veneer Case | Warranty Period | 1 Year |
| Service | Installation And Commissioning Service Is Available |
Product Description
SIT Combustible Material Flammability Test Apparatus
Introduction:
-
SIT Combustible Material Flammability Test Apparatus is designed and manufactured in accordance with DIN 53438 & ISO 11925-2 standard.
-
SIT Combustible Material Flammability Test Apparatus uses the German Kleinbrenner principle to determine the combustion properties of building materials under direct impact from a small vertical flame. It is applicable to building material categories of B, C, D, E, Bfl, Cfl, Dfl and Efl testing.
-
SIT Combustible Material Flammability Test Apparatus also meets DIN 4102-Part 1-Class B2 test requirements.
Standards:
-
DIN: DIN 53438
-
ISO: ISO 11925-2
-
EN: EN 13501
-
IEC: IEC 61730-2:2016
Application Field:
-
Building Materials;
-
Rail;
-
Automotive Interior;
Features:
-
The combustion chamber is made from corrosion resistant stainless steel, to maximize operating life.
-
It has large front and side doors for easy access. These are glazed with toughened glass for full view of the specimen during a test.
-
An extensively adjustable burner assembly, mounted on runners, to enable the small premixed flame to be tilted at an angle of 45degree to the specimen and offered to it in one fluid movement.
-
Specimen holder capable of housing the specimens up to and including 60 mm thick.
-
A fully adjustable specimen support frame facilitating lateral movement of the specimen holder so that the flame can be applied either at the specimen centre position, or at laterally spaced points.
Parameters:
|

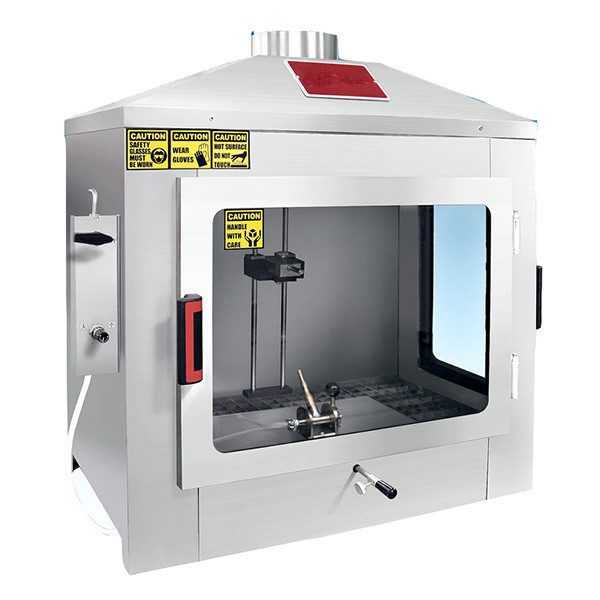

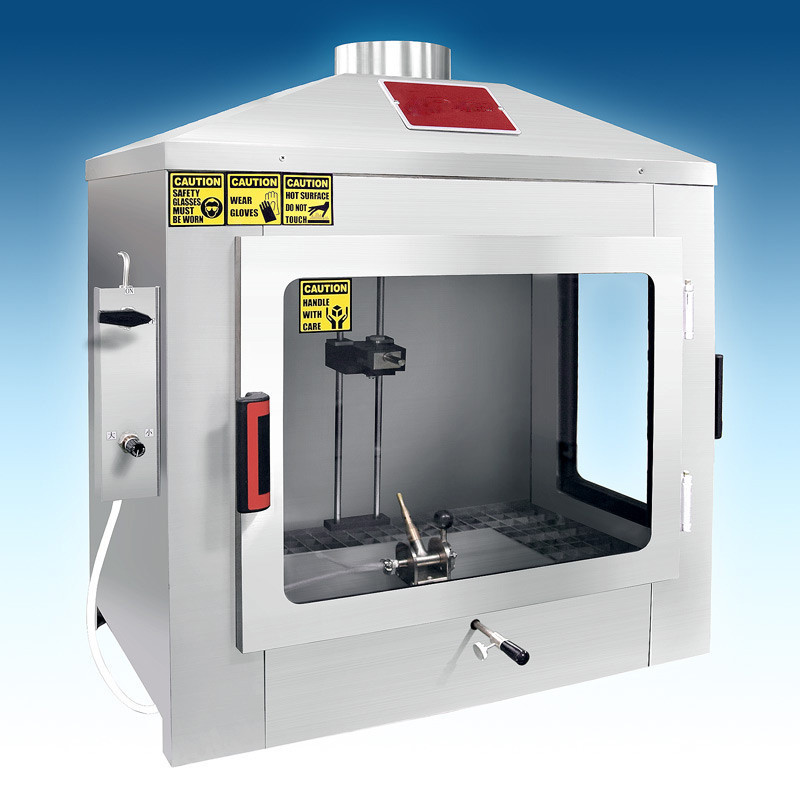

SIT Flammability Test Apparatus Real Picture:
