xp-2 astm d662 smoke density test apparatus for building material testing
| Place of Origin | China |
|---|---|
| Brand Name | LAB TECH |
| Certification | ISO9001 |
| Model Number | XP-2 |
| Minimum Order Quantity | 1 set astm d662 smoke density test apparatus |
| Price | USD1.0 |
| Packaging Details | astm d662 smoke density test apparatus packed in veneer case |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | XP-2 Astm D662 Smoke Density Test Apparatus | Function | For Building Material Smoke Density Testing |
|---|---|---|---|
| Application Field | Building Material | Reference Standards | ASTM D2843, ASTM D662 |
| Dimension | 800 Mm (W) X 500 Mm (D) X 1000 Mm (H) | Weight | 35kg |
| Packing Mode | Veneer Case | Warranty Period | 1 Year |
| Service | Installation And Commissioning Service Is Available |
Product Description
ASTM D2843 Smoke Density Test Apparatus for Building Material Testing
----Model XP-2
Introduction:
-
XP-2 ASTM D2843 Smoke Density Test Apparatus is designed and manufactured in accordance with ASTM D2843 standard , it is mainly for building products testing.
-
By detecting the loss of light transmission in test chamber, it can measure smoke density of burning and decomposition of building material during test.
Features:
-
The test chamber is Teflon coating, to resist the corrosion of smoke released during burning.
-
Light source is incandescent lamp, the photoelectric sensor is silicon photodiode, which has cosine calibration function.
-
Color filter is equipped to filter out ultraviolet light and infrared light.
-
Gas pressure of main burner is 256KPA, it is subjected to flame impact on test specimen.
-
Gas pressure of auxiliary burner is 138KPA, it can continue burn the molten droplets.
-
The computer and test software are equipped.
Functions of Software:
- XP-2 ASTM D2843 Smoke Density Test Apparatus can display the transmittance value of each 15s optical path, and can also draw the transmittance test curve. After test, the software can display the SDR smoke density value, that is, the smoke integral value;
- Through the test software, it can synthesize test reports of three sets of test samples to draw a SDR smoke density development curve.
- You can use the software to compare the three test results to judge whether the test results are ok.
- Connecting with a printer, the test results can be printed.
Parameters:
| No. | Item Name | XP-2 ASTM D2843 Smoke Density Test Apparatus |
| 1 | Dimension | 800 mm (W) x 500 mm (D) x 1000 mm (H) |
| 2 | Weight | 35kg (computer is not included) |
| 3 | Power supply | 220V, 10A, 50Hz, |
| 4 | Ambient temperature | 10 ~ 35 Centigrade |
| 5 | Installation place | Fume hood |

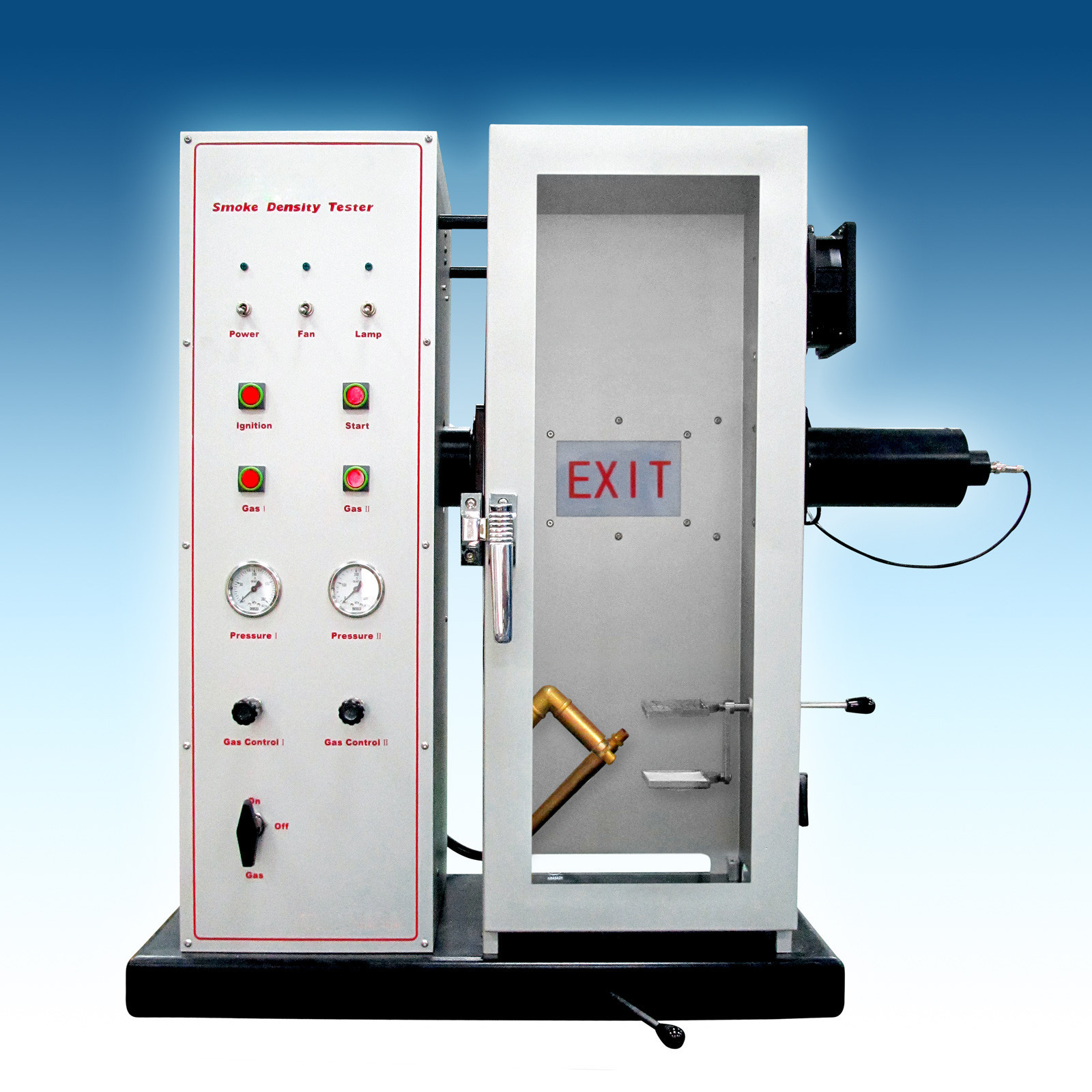

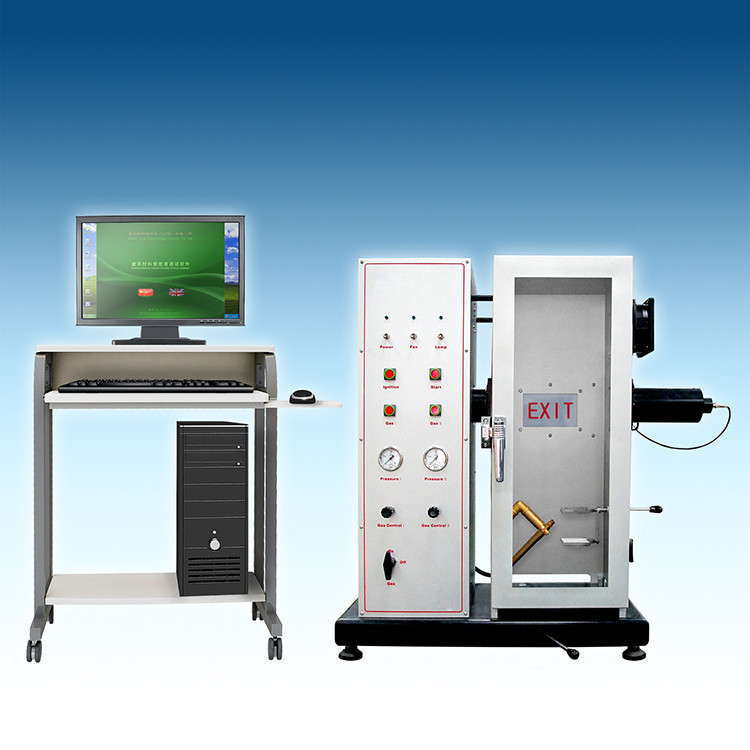

XP-2 Smoke Density Test Apparatus Real Picture:
