COI Paramagnetic Method Limited Oxygen Index Tester

  • COI Paramagnetic Method Limited Oxygen Index Tester
  • COI Paramagnetic Method Limited Oxygen Index Tester
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number COI
Minimum Order Quantity 1 set COI Limited Oxygen Index Tester
Price USD1.0
Packaging Details COI Limited Oxygen Index Tester packed in veneer case
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name COI Limited Oxygen Index Tester Function For Limited Oxygen Index Testing
Application Field Building Material, IMO, Rail, Etc. Reference Standards ASTM D2863, ISO4589-2
Dimension 370 Mm (W) X 300 Mm (D) X 480 Mm (H) Weight 8kg
Packing Mode Veneer Case Warranty Period 1 Year
Service Installation And Commissioning Service Is Available
Leave a Message
Product Description

Paramagnetic Method Limited Oxygen Index Tester  --  Model COI



Introduction:

  • COI Oxygen Index tester measures minimum oxygen concentration as necessary when specimen combustion.
  • Oxygen sensor of this equipment is Paramagnetic Type, which is precise, long lifetime, reliable and has less error rate.
  • COI Oxygen Index tester meets the contents of standards like ASTM, ISO 4589-2, NES and so on.





Standards:

  • ASTM: ASTM D2863

  • ISO: ISO 4589-2

  • NES: NES 714





Application Field:

  • Building Materials;

  • Wire&cable;

  • Upholstered furniture;

  • Others;



Features:

  • Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.

  • Digital display of nitrogen gas flow, total flow ofoxygen and nitrogen.

  • Digital display of oxygen percentage in atmosphere during test (no calculations needed).

  • High temperature resistant quartz glass tube, can withstand a higher test temperature.

  • Gas ignition device, easily adjust the length of the flame.

  • Sample holders for both rigid and flexible samples supplied.

  • Shortened gas path for rapid response.

  • Paramagnetic Oxygen Sensor: Range:0 to 100% Oxygen

  • Repeatability (typical): ±0.1% Oxygen

  • Linearity (typical): ±0.1% Oxygen



Parameters:

No. Item Name COI Paramagnetic Oxygen Index Tester
1 Dimension 420 mm (W) x 350 mm (D) x 560 mm (H)
2 Weight 9kg
3 Power supply 115 Volts AC 60Hz / 230 Volts AC 50Hz
4 Ambient temperature Operating 10°C to 35°C
5 Gas supply Oxygen, Nitrogen and Propane

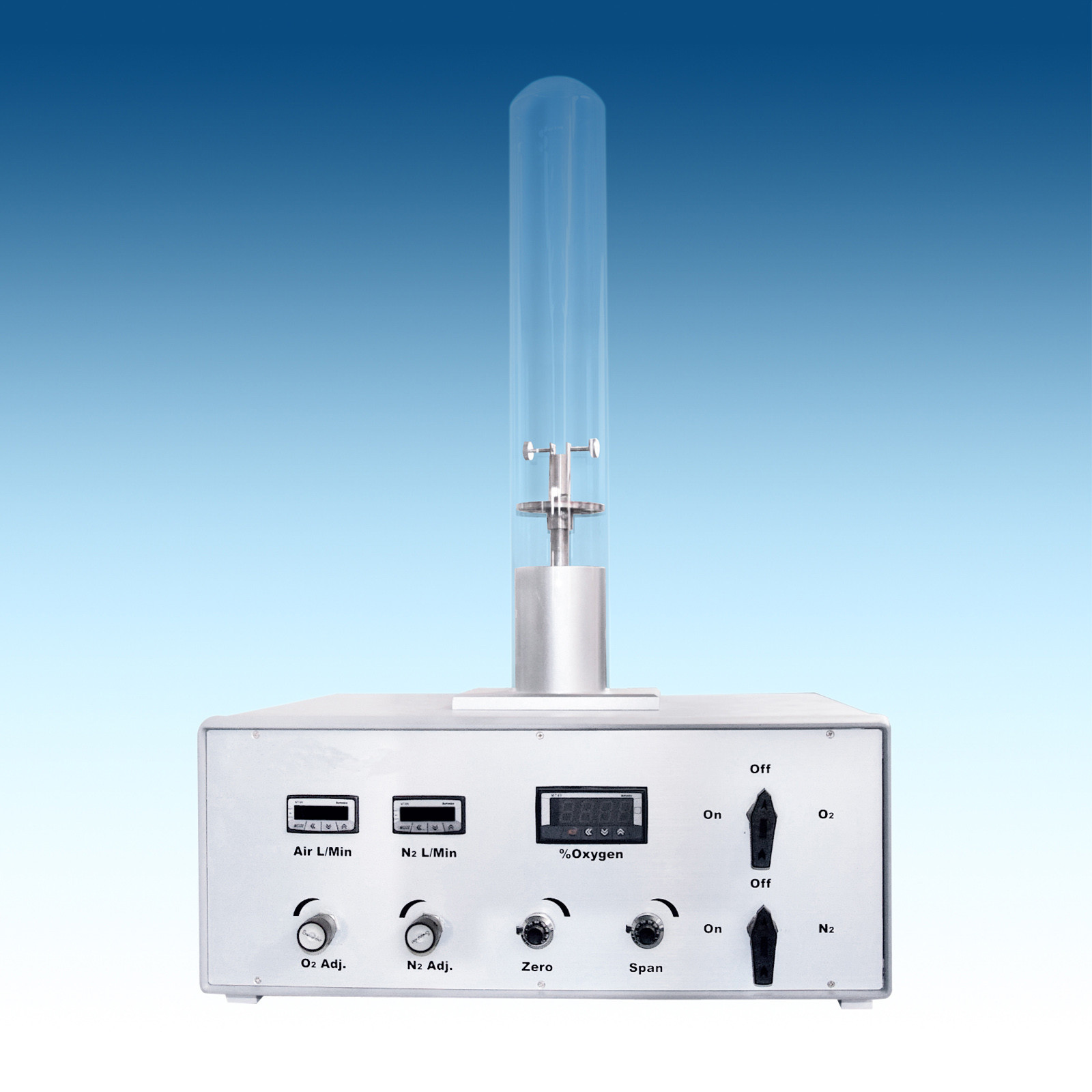

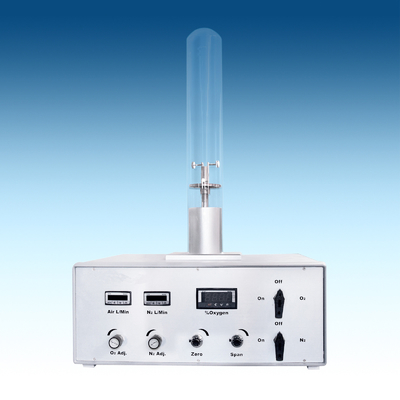

COI Oxygen Index Tester Real Picture:

COI Paramagnetic Method Limited Oxygen Index Tester 0
