3mc IEC60134 Cable Burning Smoke Density Test Apparatus
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | 3MC |
| Minimum Order Quantity | 1 set Cable Smoke Density Testing Equipment |
| Price | USD1.0 |
| Packaging Details | Cable Smoke Density Testing Equipment packed in veneer case |
| Delivery Time | 45 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | IEC60134 Standard China Made High Quality Cable Smoke Density Testing Equipment | Item Name | 3mc IEC60134 Cable Burning Smoke Density Test Apparatus |
|---|---|---|---|
| Function | For Electrical Cable Smoke Density Testing | Application Field | IMO, Rail, Wire, Cable |
| Reference Standards | IEC61034 | Chamber Internal Size | 3,000mm(W) × 3,000mm(D) × 3,000mm(H) |
| Weight | 240kg | Packing Mode | Veneer Case |
| Warranty Period | 1 Year | Service | Installation And Commissioning Service Is Available |
Product Description
3mc IEC60134 Cable Burning Smoke Density Test Apparatus
Introduction:
-
The 3MC Cable Burning Smoke Density Test Apparatus is used for measuring the emission when the cable or optical cable is placed horizontally under the definite fire condition.
-
3MC Cable Burning Smoke Density Test Apparatus comprises a cubic enclosure and a photo-metric system(the outer test chamber is not supplied by us, customers should build the room by themselves.)
-
The specified standard fire source (ethanol 90±1%, methanol 4±1% and distilled water 6±1%) 1L±0.01L is burned.
Standards:
-
IEC61034-1&2: Measurement of Smoke density of cables burning under defined condition;
-
BS6853 Code of practice for fire precautions in design and construction of passenger carrying trains;
Application Field:
-
Rail;
-
Wire & Cable;
Features:
-
Chamber internal size is 3,000mm(W) × 3,000mm(D) × 3,000mm(H).
-
3MC Cable Burning Smoke Density Test Apparatus configured with a door with test glass windows and in both faces of the opposite side there is a sealed transparent window (minimum 100mmX100mm).
-
Support system to allow separate fitting of Light Source and Photocell in the outer wall.
-
The light source is Dedo light Classic Series Tungsten with 100W.
-
The Dedolight Tungsten power supply is 12V DC.
-
Velocity of light : 2000 lm~3000 lm, and color temperature : 2800K~3200K.
-
The Receptor Photocell is silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE).
-
Supplied with customised extraction facilities and all instrumentation, fans, stands and sample mounting frames.
-
Software shows testing results including the inner chamber temperature, light transmission etc.
Parameters:
| No. | Item Name | 3MC Cable Burning Smoke Density Test Apparatus |
| 1 | Dimension | 3150 mm (W) x 3150 mm (D) x 3150 mm (H) |
| 2 | Weight | 240kg |
| 3 | Power supply | 110V AC 60Hz / 230V AC 50Hz |
| 4 | Ambient temperature | Operating 10oC to 35oC |

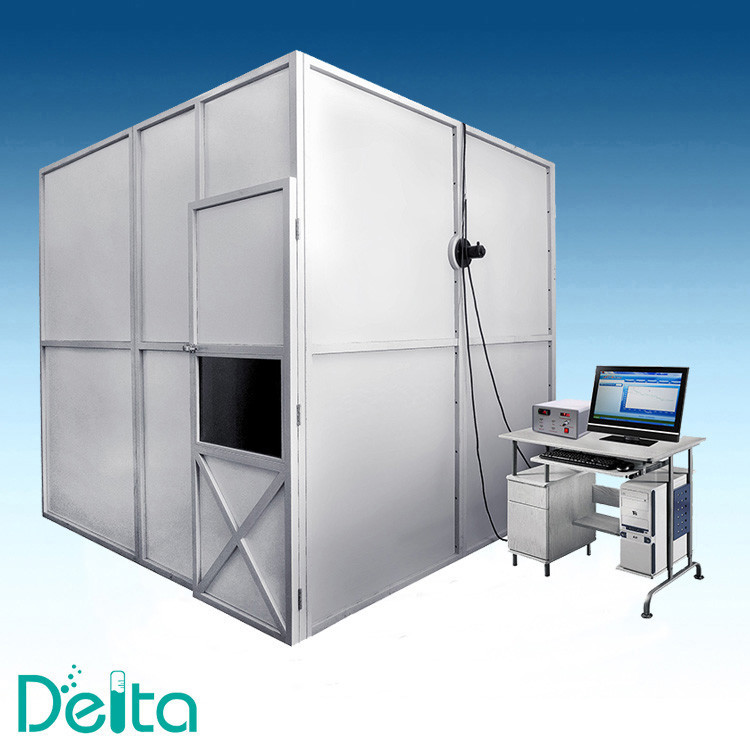

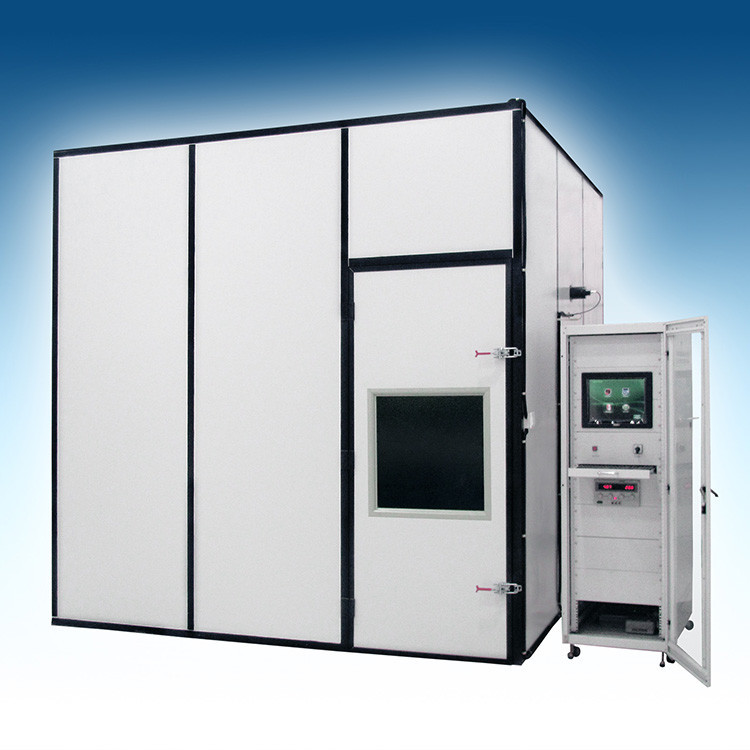

3MC Cable Burning Smoke Density Test Apparatus Real Picture:
