IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester

  • IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number SCV
Minimum Order Quantity 1 set Single Cable Vertical Flame Tester
Price USD1.0
Packaging Details IEC60332 UL1581 Vertical Wire Flame Tester packed in veneer case
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester Function For Electrical Cable Fire Reaction Testing
Application Field Wire, Cable Reference Standards IEC60332-1-2
Size 560 Mm (W) X 380 Mm (D) X 1400 Mm (H) Weight 36kg
Packing Mode Veneer Case Warranty Period 1 Year
Service Installation And Commissioning Service Is Available
Leave a Message
Product Description

IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester

Introduction:

  • Single Cable Vertical Flame Tester is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application.

  • It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).



Features:

  • Stainless steel box, the height of 1300mm, width of 300mm, depth of 450mm.
  • Two stainless steel rods, can bind single wire cable or optical cable sample.
  • 1KW mixed standard burner, can provide the standard test fire source.
  • Regulating gas and air flow rate of the rotor flow meters.
  • Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.
  • Electric spark ignition device.
  • Flame height measuring tool.
  • Up to four time modes can be selected according to different sample diameters.

  • Calibration kit for the testing flame.



Parameters:

No. Item Name IEC60332 UL1581 Vertical Wire Flame Tester​
1 Dimension 560 mm (W) x 380 mm (D) x 1400 mm (H)
2 Weight 36kg
3 Power supply 110V AC 60Hz / 230V AC 50Hz
4 Ambient temperature Operating 10oC to 35oC
5 Gas supply Air and propane

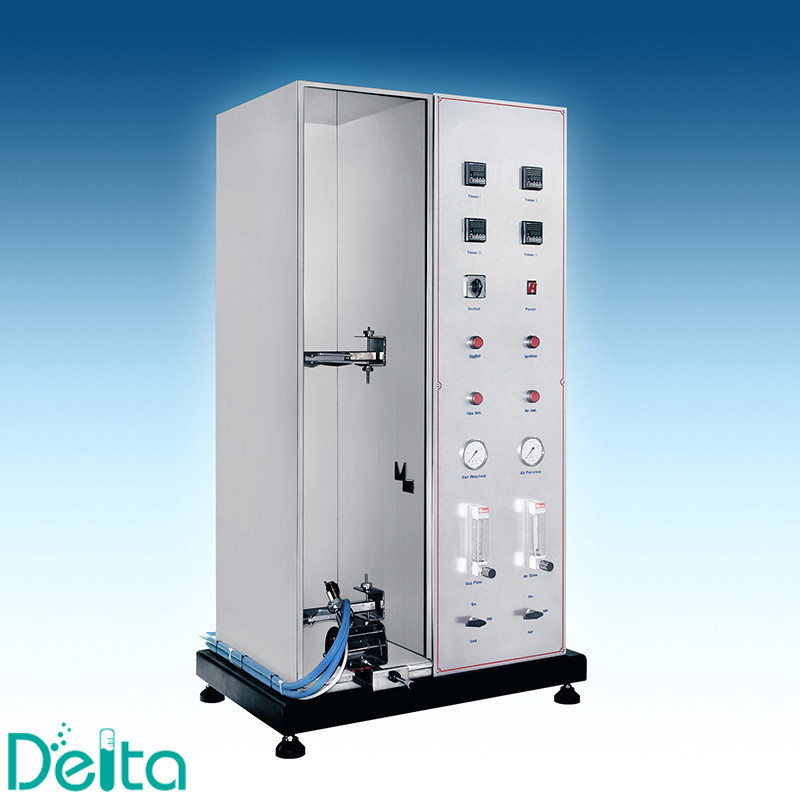

IEC60332 UL1581 Vertical Wire Flame Tester  Real Picture:

IEC60332 Single Cable Fire Behaviour Testing UL1581 Vertical Wire Flame Tester 0
