UL94-X Horizontal and Vertical Flame Test Chamber IEC60695-11
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | UL94 |
| Minimum Order Quantity | 1 set Vertical Flame Test Chamber |
| Price | Negotiable |
| Packaging Details | Vertical Flame Test Chamber packed with standard plywood case |
| Delivery Time | In 30 days |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | UL94-X Horizontal And Vertical Flame Test Chamber IEC60695-11 | Application | Test Materials For Parts In Devices And Appliances |
|---|---|---|---|
| Referemce Standard | UL94, IEC 60695-11-10, ISO 9772, ISO 9773 | Color | White Or As Requested |
| OEM Service | Available | Power Supply | 220V, 50Hz Or As Requested |
| Size | 950 Mm (W) X 850 Mm (D) X 1350 Mm(D) | Weight | 58kg |
| Warranty | One Year |
Product Description

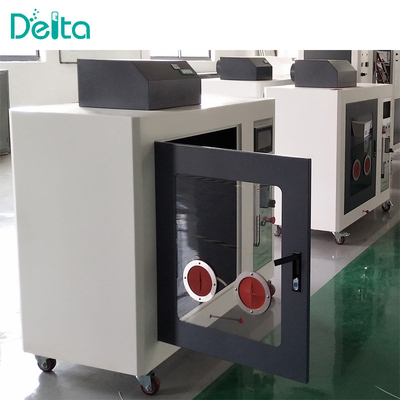

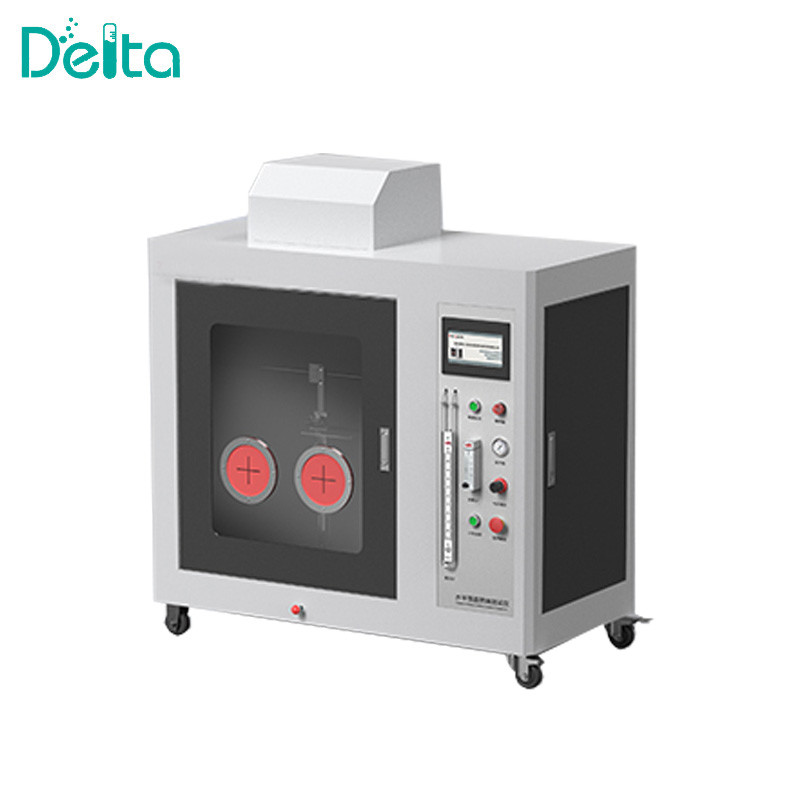

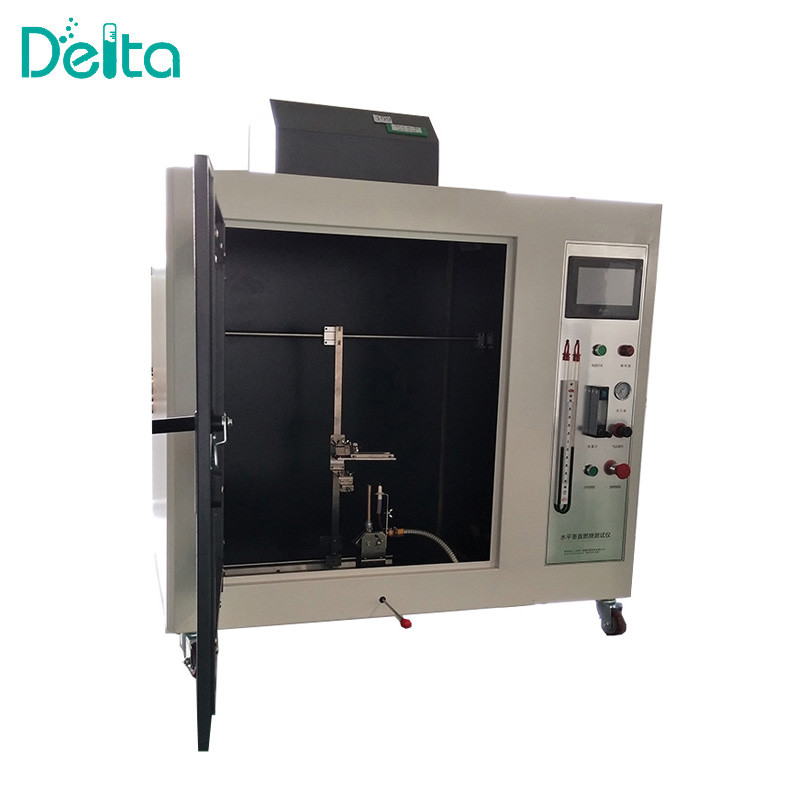

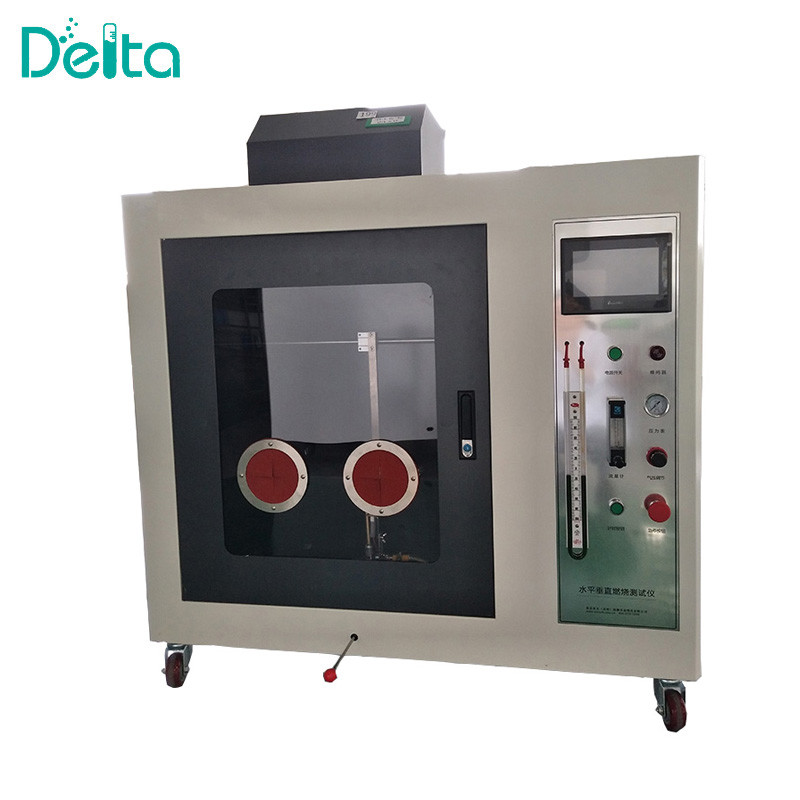

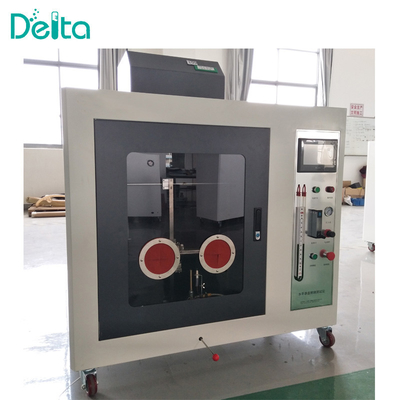

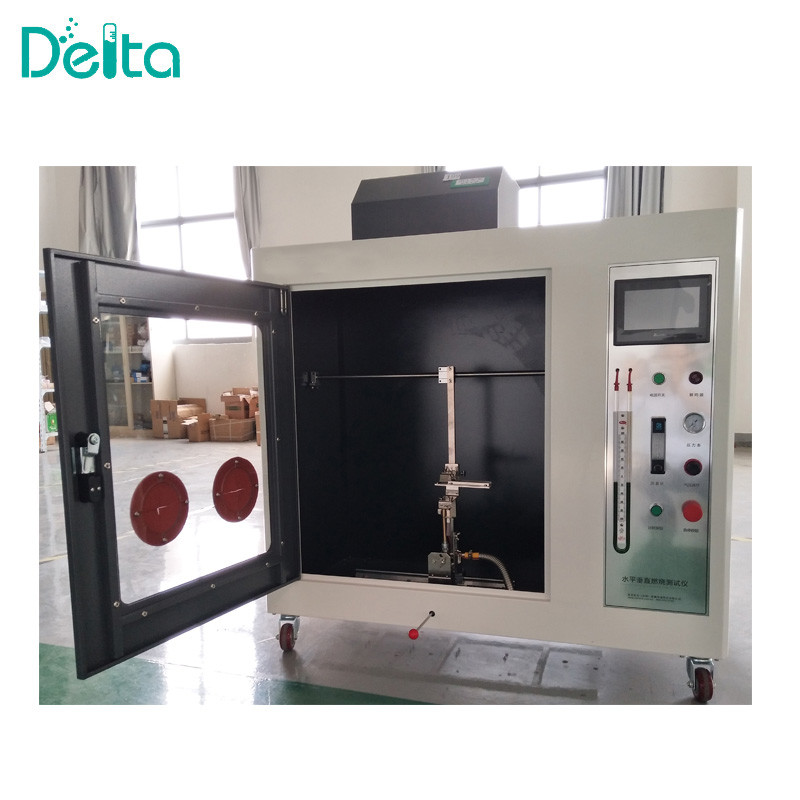

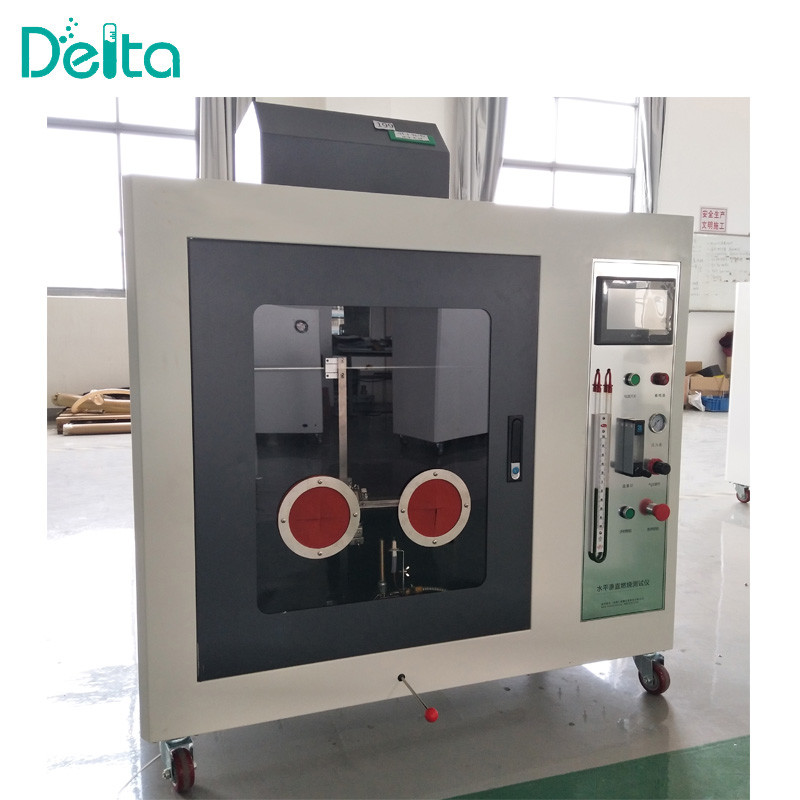

UL94-X IEC60695-11 Horizontal and Vertical Flame Test Chamber
Introduction:
-
UL94-X Horizontal and Vertical Flame Test Chamber is widely applied throughout the industry, especially in electrical manufacturing, where it is widely used to test electrical products.
-
The test measures the burning rate of samples positioned either horizontally or vertically.
-
Flammability, combustion speed, flame spread, and the intensity of combustion can be acquired during the test automatically and precisely;
-
UL94-X Horizontal and Vertical Flame Test Chamber conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
Features:
- A bench mounted draft free combustion chamber having a large inside volume of 0.75m3
- Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
- Fully adjustable horizontal and vertical specimen supports.
- A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator, pressure gauge, U type water column tube.
- Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
- Auto Specimen Moving System and one testing timer convenient for the consumer to use.
- Burner calibration kit, conforming to ASTM D 5207.
Parameters:
| No. | Item Name | UL94-X Horizontal and Vertical Flame Test Chamber |
| 1 | Size | 950 mm (W) x 850 mm (D) x 1350 mm(D) |
| 2 | Weight | 58kg |
| 3 | Power supply | AC 220V, 50/60Hz, 5A |
| 4 | Ambient temperature | 10 ~ 35 Centigrade |
| 5 | Gas supply | Propane Gas or Methane Gas |
