Economic Type Electrochemistry Method Oxygen Index Tester

  • Economic Type Electrochemistry Method Oxygen Index Tester
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number OI
Minimum Order Quantity 1 set LOI Oxygen Index Tester
Price USD1.0
Packaging Details LOI Oxygen Index Tester packed in veneer case
Delivery Time 45 days
Payment Terms T/T, Western Union
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Name LOI Oxygen Index Tester Function For Limited Oxygen Index Testing
Application Field Building Material, IMO, Rail, Etc. Reference Standards ASTM D2863, ISO4589-2
Dimension 370 Mm (W) X 300 Mm (D) X 480 Mm (H) Weight 8kg
Packing Mode Veneer Case Warranty Period 1 Year
Service Installation And Commissioning Service Is Available
Leave a Message
Product Description

Economic Type Electrochemistry Method Oxygen Index Tester  --  Model LOI



Introduction:

  • OI Oxygen Index tester measures minimum oxygen concentration as necessary when specimen combustion. Oxygen sensor of this equipment is electro-chemistry type, which is precise and has less error rate. But it has short life and will be replaced each ten months.

  • It meets the contents of standards like ASTM, ISO, NES and so on.



Standards:

  • ASTM: ASTM D2863

  • ISO: ISO 4589-2

  • NES: NES 714



Application Field:

  • Building Materials;

  • Wire&cable;

  • Upholstered furniture;

  • Others;



Features:

  • Electrochemistry Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.

  • Display of nitrogen and oxygen gas flow by flow meters.

  • Digital display of oxygen percentage in atmosphere during test (no calculations needed).

  • High temperature resistant quartz glass tube, can withstand a higher test temperature.

  • Gas ignition device, easily adjust the length of the flame.

  • Sample holders for both rigid and flexible samples supplied.

  • More quicker response time.

  • Repeatability (typical): ± 0.1% Oxygen.

  • Linearity (typical): ± 0.1% Oxygen

  • Oxygen Sensor: Range:0 to 100% Oxygen

  • Lifetime of Oxygen sensor: Ten months, you can buy it from us, the cost is USD: 60/unit;



Parameters:

No.

Item Name

OI Oxygen Index Tester

1

Dimension

370 mm (W) x 300 mm (D) x 480 mm (H)

2

Weight

8kg

3

Power supply

115 Volts AC 60Hz / 230 Volts AC 50Hz

4

Ambient temperature

Operating 10°C to 35°C

5

Gas supply

Oxygen, Nitrogen and Propane

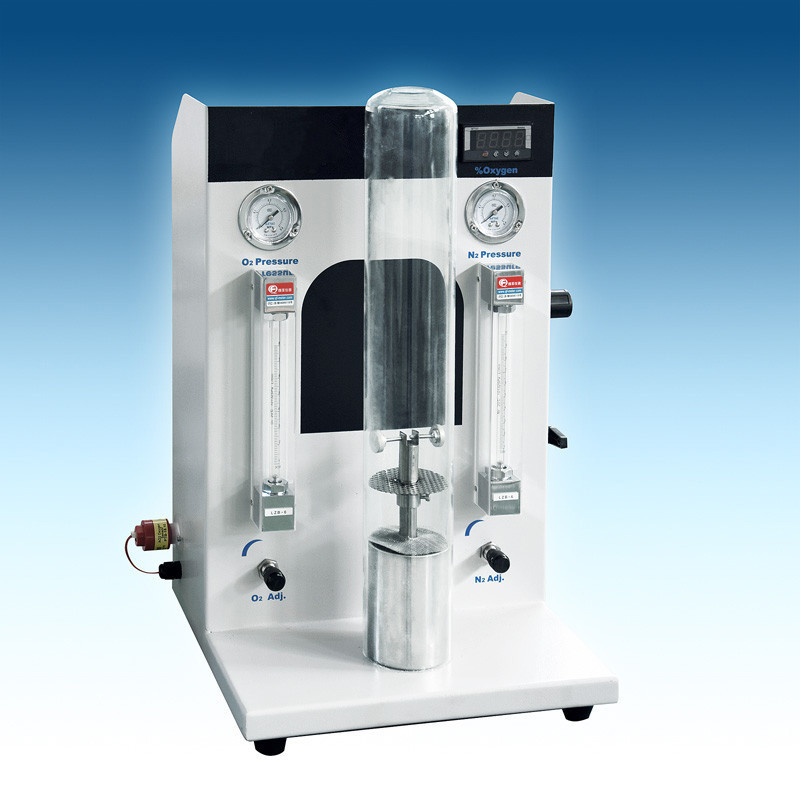

OI Oxygen Index Tester Real Picture:

Economic Type Electrochemistry Method Oxygen Index Tester 0
