Vlf Cable Test Diagnostic System for Testing Midium Voltage Cables
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | VLF |
| Minimum Order Quantity | 1 set VLF AC Hipot Tester |
| Price | USD1.0 |
| Packaging Details | Vlf Cable Test Diagnostic System for Testing Midium Voltage Cables Packed in Veneer Case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | Very Low Frequency AC Hipot Tester 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Vlf Cable Test Diagnostic System For Testing Midium Voltage Cables | Functions | For Cable Withstand Voltage Testing |
|---|---|---|---|
| Voltage Output | 30kV, 40kV, 50kV, 60kV, 70kV, 80kV | Description | Cable Test Diagnostic System For Testing Cables |
| Rated Current | 30mA | Frequency | 0.1Hz, 0.05Hz, 0.02Hz |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Vlf Cable Test Diagnostic System for Testing Midium Voltage Cables
Introduction:
VLF Cable Test Diagnostic System for Testing Midium Voltage Cables is designed and manufactured for electrical equipment very low frequency withstand voltage test.
Very low frequency withstand voltage test is essentially an alternative of power frequency withstand voltage test. It is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.
VLF Cable Test Diagnostic System for Testing Midium Voltage Cables can be applied for 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformer and other electrical equipment.
Features:
-
Max voltage output: refer to following table;
-
Output frequency: 0.1Hz, 0.05Hz, 0.02Hz;
-
Measurement accuracy: 2.5%;
-
Positive and negative voltage peak errors < 2.5%RDG+0.3%FS;
-
Voltage wave form distortion: <3%;
-
Insulation resistance measurement error: <2.5%;
-
Leakage current measurement error: <2.5%;
-
Power supply:AC220V ± 10%, 50Hz/60Hz;
-
Environment temperature: 0~50°C;
-
Humidity:≤85%RH;
Parameters:
| Model | Rated Voltage/current | Load Carrying Capacity | Power fuse wire | Product Structure&Weight |
| VLF-30 | 30kV/20mA (Peak) | 0.1Hz,≤0.5µF~1.1µF | 5A | Controller:4kg Booster: 25kg |
| 0.05Hz,≤0.5µF~2.2µF | ||||
| 0.02Hz,≤0.5µF~5.5µF | ||||
| VLF-40 | 40kV/30mA | 0.1Hz ≤ 1.1uF | 6A | Controller: 4kg Booster: 35kg |
| 0.05Hz ≤ 2.2uF | ||||
| 0.02Hz ≤ 5.5uF | ||||
| VLF-50 | 50kV/30mA (Peak) | 0.1Hz,≤0.5µF~1.1µF | 7A | Controller:4kg Booster: 50kg |
| 0.05Hz,≤0.5µF~2.2µF | ||||
| 0.02Hz,≤0.5µF~5.5µF | ||||
| VLF-60 | 60kV/30mA (Peak) | 0.1Hz,≤0.5µF | 9A | Controller:4kg Booster Grade 1(30kV):25kg Booster Grade 2(30kV):25kg |
| 0.05Hz,≤0.5µF~1µF | ||||
| 0.02Hz,≤0.5µF~2.5µF | ||||
| VLF-80 | 80kV/30mA (Peak) | 0.1Hz,≤0.5µF | 12A | Controller:4kg Booster Grade 1(30kV):25kg Booster Grade 2(50kV):50kg |
| 0.05Hz,≤0.5µF~1µF | ||||
| 0.02Hz,≤0.5µF~2.5µF |

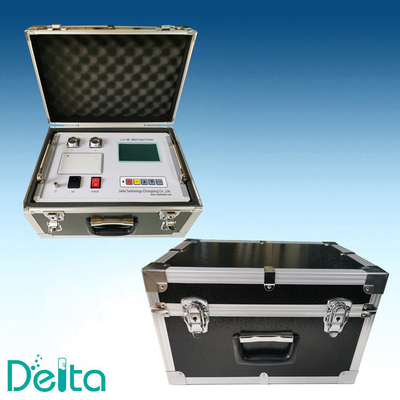

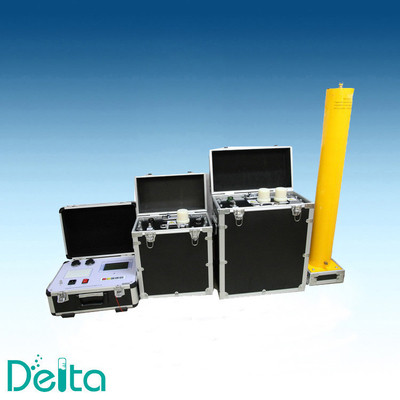

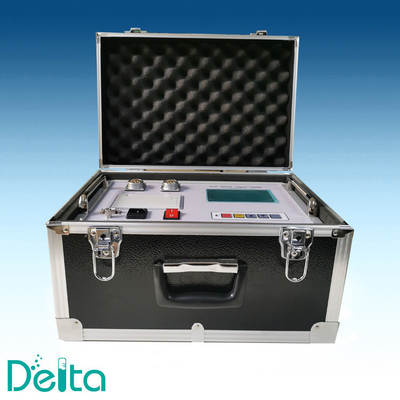

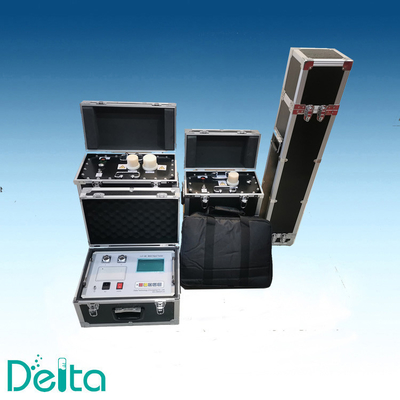

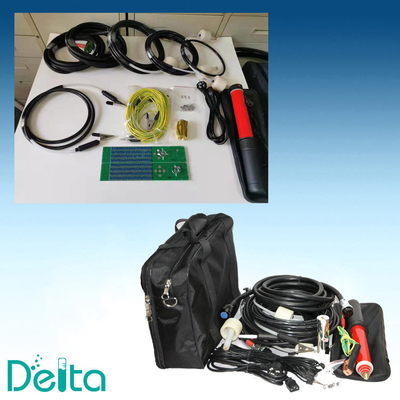

Very low frequency withstand voltage testReal Picture:
