VLF 0.01Hz High Voltage Testing 80kv Very Low Frequency AC Hipot Tester
| Place of Origin | China Mainland |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | VLF |
| Minimum Order Quantity | 1 set |
| Price | USD1.0 / set |
| Packaging Details | It is packed in plywood case |
| Delivery Time | In 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 Sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 0.01Hz 80kv Very Low Frequency AC Hipot Tester | Description | 80kv Very Low Frequency AC Hipot Tester |
|---|---|---|---|
| Functions | For High Voltage Cable Withstand Voltage Testing | Application Field | Electrical Industry, Cable Testing Service |
| Test Objects | 10kv, 35kv, 300MW Power Transformer, Cable, Etc. | Advantages | Smaller, Lighter And Portable |
| Max. Voltage Output | 30kv, 50kv, 60kv, 80kv | Rated Current | 20mA / 30mA |
| Measurement Accuracy | 2.5% | Output Frequency | 0.1Hz, 0.05Hz, 0.02Hz |

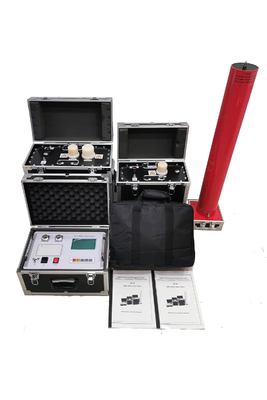

| Full Set Includes | Controller, Booster(S), Capacitor, Cables | Power Supply | AC 220V, 50Hz/60Hz |
| Delivery Lead Time | 7 Days After The Order Is Confirmed | Shipping Method | Suggest To Ship By Air Or Express |
| Trade Terms | EXW, Fob, DDU, CIF, Etc. |
Product Description

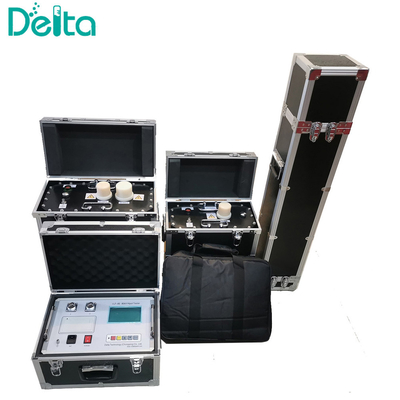

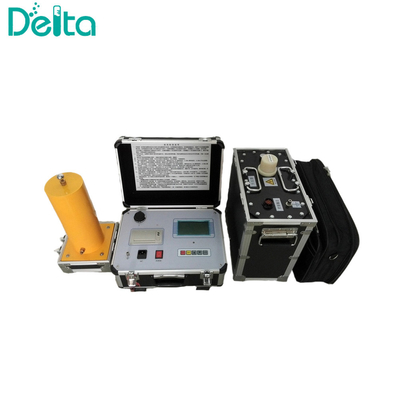

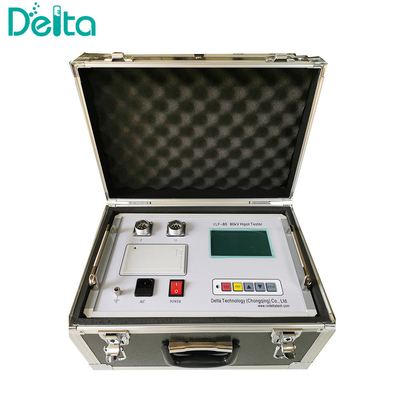

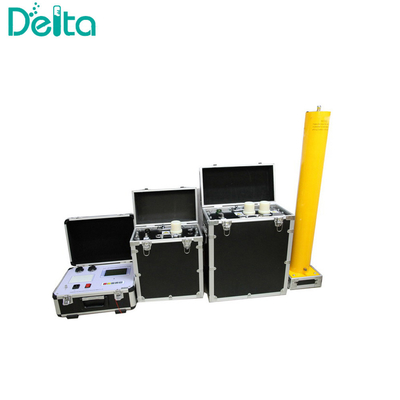

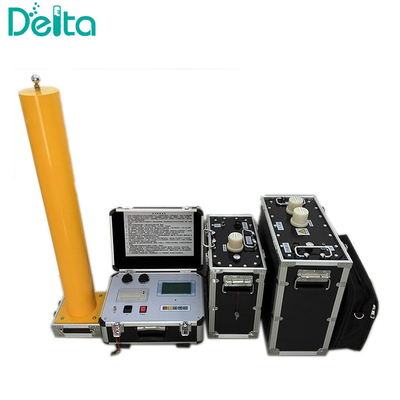

VLF-80 0.01Hz High Voltage Testing 80kv Very Low Frequency AC Hipot Tester
Introduction:
- VLF High Voltage Testing 0.01Hz 80kV Very Low Frequency AC Hipot Tester is designed and manufactured for electrical equipment very low frequency withstand voltage test.
- Very low frequency withstand voltage test is essentially an alternative of power frequency withstand voltage test. It is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.
- VLF High Voltage Testing 0.01Hz 80kV Very Low Frequency AC Hipot Tester can be applied for 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformer and other electrical equipment.
Parameters:
- Max voltage output: refer to table 1;
- Output frequency: 0.1Hz, 0.05Hz, 0.02Hz;
- Measurement accuracy: 2.5%;
- Positive and negative voltage peak errors < 2.5%RDG+0.3%FS;
- Voltage wave form distortion: <3%;
- Insulation resistance measurement error: <2.5%;
- Leakage current measurement error: <2.5%;
- Power supply:AC220V ± 10%, 50Hz/60Hz;
- Environment temperature: 0~50°C; Humidity:≤85%RH;
| Model | Rated Voltage/current | Load Carrying Capacity | Power fuse wire | Weight |
| VLF-30 | 30kV/20mA (Peak) |
0.1Hz, 0.5µF~1.1µF | 10A | Controller:6kg Booster: 35kg |
| 0.05Hz, 0.5µF~2.2µF | ||||
| 0.02Hz, 0.5µF~5.5µF | ||||
| VLF-40 | 40kV/30mA | 0.1Hz ≤ 1.1uF | 20A | Controller: 6kg Booster: 50kg |
| 0.05Hz ≤ 2.2uF | ||||
| 0.02Hz ≤ 5.5uF | ||||
| VLF-50 | 50kV/30mA (Peak) |
0.1Hz, 0.5µF~1.1µF | 20A | Controller:6kg Booster: 50kg |
| 0.05Hz, 0.5µF~2.2µF | ||||
| 0.02Hz, 0.5µF~5.5µF | ||||
| VLF-60 | 60kV/30mA (Peak) |
0.1Hz, ≤0.5µF | 9A | Controller:4kg Booster 1(30kV):25kg Booster 2(30kV):25kg |
| 0.05Hz, 0.5µF~1µF | ||||
| 0.02Hz, 0.5µF~2.5µF | ||||
| VLF-80 | 80kV/30mA (Peak) |
0.1Hz, ≤0.5µF | 12A |
Controller:4kg |
Features:
- It with over voltage and over current protection;
- Data of current, voltage and wave form can be directly sampled at high voltage side, so the data is real and accurate;
- With color man-machine interface touch control plus controls modular software operating system, precise and intuitive;
- Multi-purpose, can simultaneously measure tested objects capacitance, insulation resistance, leakage current, and AC withstand voltage test;
