XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | XZ |
| Minimum Order Quantity | 1 set Hipot Testing Equipment |
| Price | USD1.0 / set Hipot Testing Equipment |
| Packaging Details | XZ Hipot Testing Equipment is packed in the plywood case. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resonate Voltage Waveform | Sine Wave | Output Frequency | 30~300Hz |
|---|---|---|---|
| Quality Factor | 30~80 | Rated Output Voltage | 27kv /54kv /108kv |
| Application | Supply High Voltage For Testing | Output Voltage Power Supply | Single Phase 380/220V, 50Hz |
| Working Mode | Full Power Continuous Working Time, 60min | Protection | Over Current, Over Voltage, Arc Protection, |
| Description | XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment | Power Supply | AC 220V, 50Hz/60Hz |
| Delivery Lead Time | 20 Days After The Order Is Confirmed | Shipping Method | Suggest To Ship By Air Or Courier |
| Trade Terms | EXW, Fob, DDU, CIF, Etc. | Language | English |
| OEM Service | Yes |
Product Description
XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment
Introduction:
- It uses an excitation transformer to motivate a series resonant loop, to adjust the output frequency of the director, make the loop inductance L, and measure equipment C in series resonant, the voltage of the resonance is the same as tested equipment.
- XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment is widely used in Electric Power, Metallurgy, Oil, Chemical Industry, etc., and applicable to connecting and preventing tests for capacitive equipment with high-capacity, high-voltage.
- Its main function is to change 380V or 200V (the amplitude and frequency are fixed) frequency sine wave AC power into sine wave (amplitude and frequency are adjustable), and supply power for the whole system.
- The function of the excitation transformer is to boost the output voltage of the power source to the proper measured voltage. High voltage reactor L is an important component of the resonant loop, it with measured equipment CX in serial resonant when the power frequency=1/(2π )
- XZ 35kV Switchgear Busbar Hipot Testing Equipment, GIS Hipot Testing Equipment applies to AC voltage withstand tests of 10KV, 35KV, 110KV, 220KV, 500KV polythene cable, 60KV, 220KV, 500KV GIS, large transformers, generators, transformer induced voltage withstand test, and ground resistance measurement.
Features:

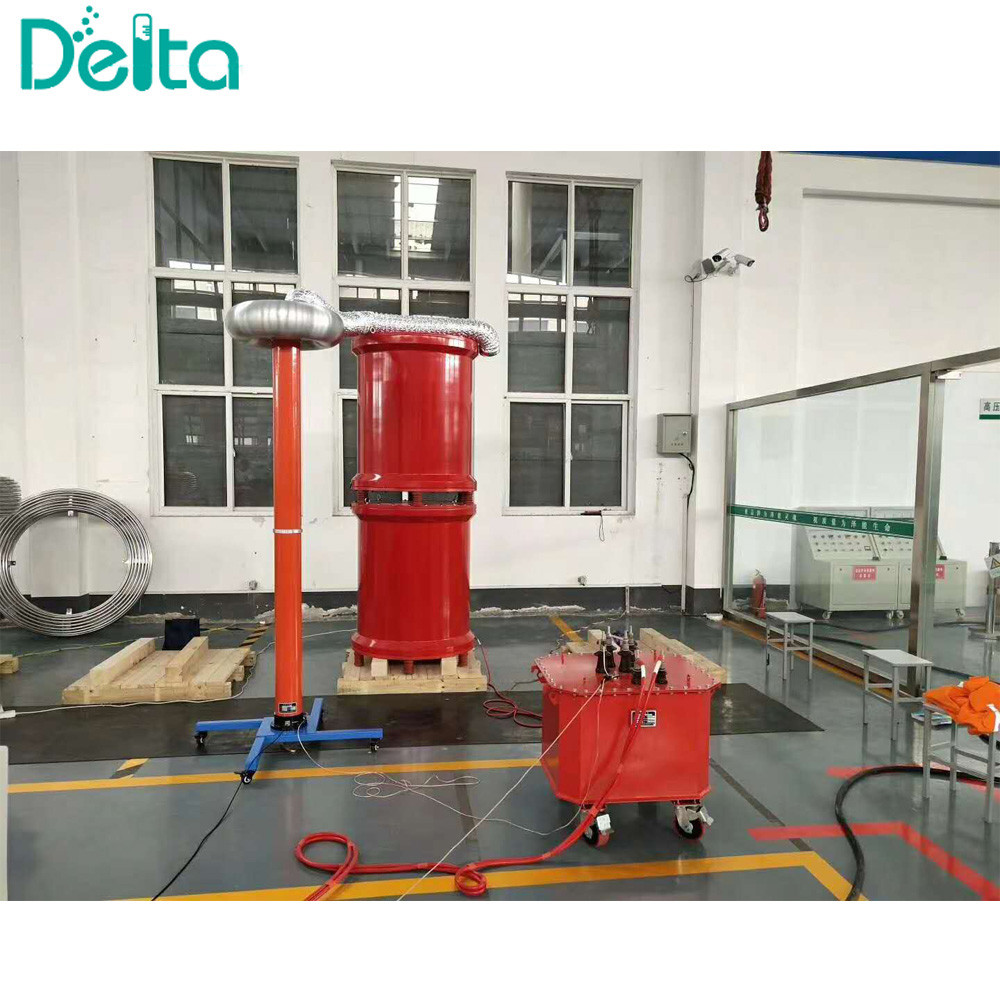

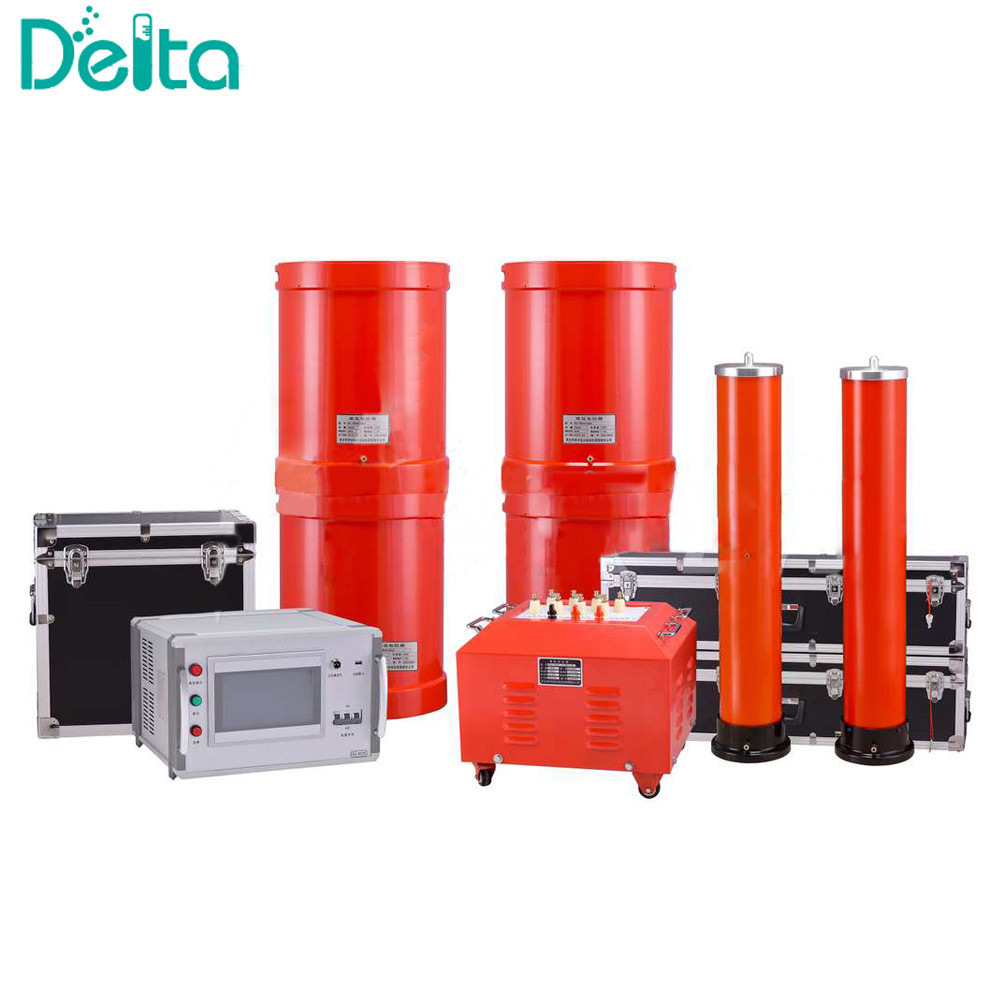

- XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment is composed by:
- one control cabinet

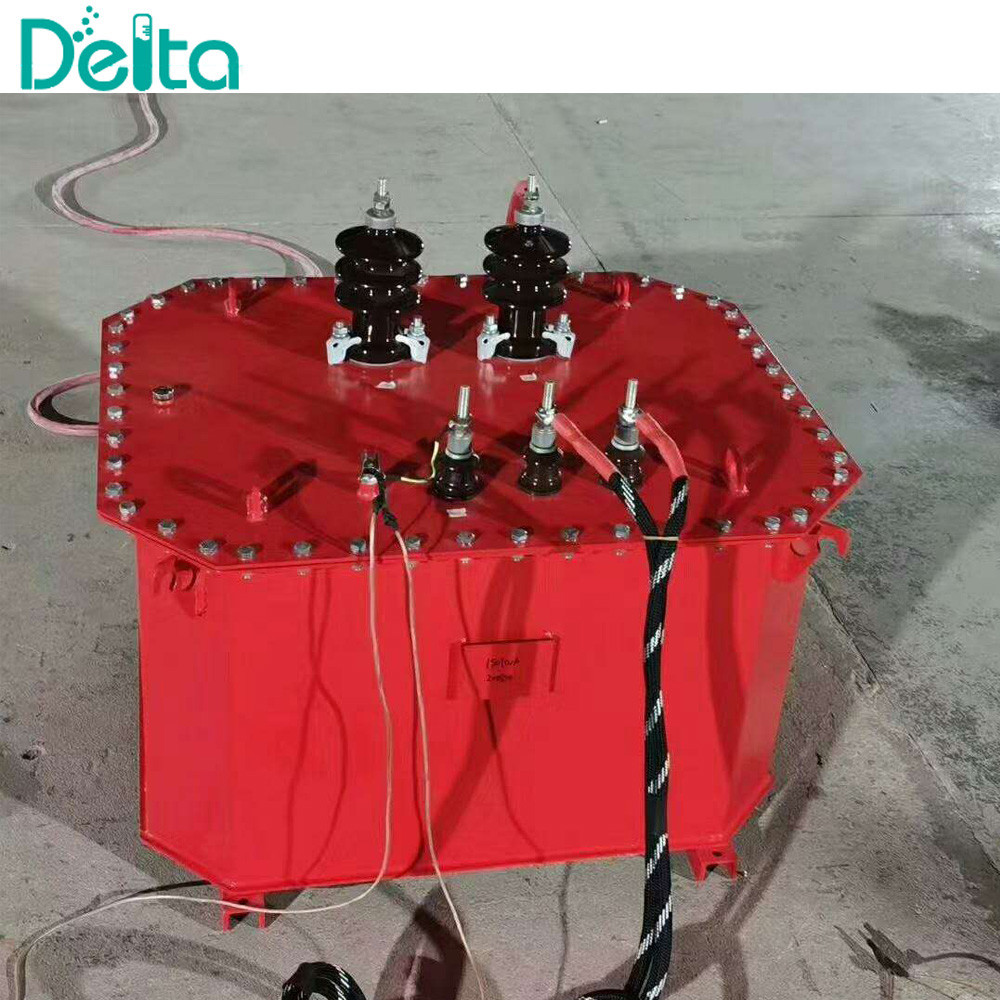

- excitation transformer
- high voltage reactor
- one high voltage divider
- There are two kinds of control cabinets, more than 20KW is a console, less than 20KW is a portable case; it is composed of a controller and filter device.
Parameters:
| No. | Item | XZ 35kV Switchgear Busbar Hipot Testing Equipment, Gis Hipot Testing Equipment |
| 1 | Resonate voltage waveform | Sine wave, distortion ≤1% |
| 2 | Output frequency | 30~300Hz |
| 3 | Working mode | Full power continuous working time, 60min |
| 4 | Quality factor | 30~80 |
| 5 | Output voltage power supply | single phase 380/220V±10%, 50Hz |
| 6 | Working environment | -10ºC~+50ºC, Relative humidity < 95% |
