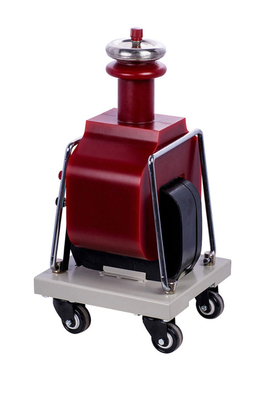

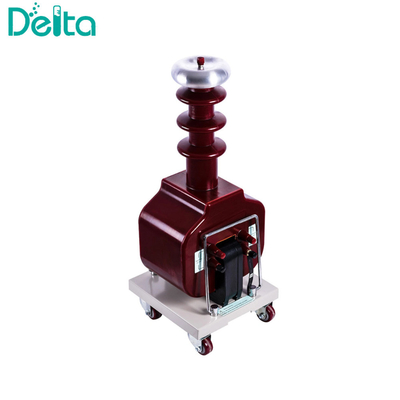

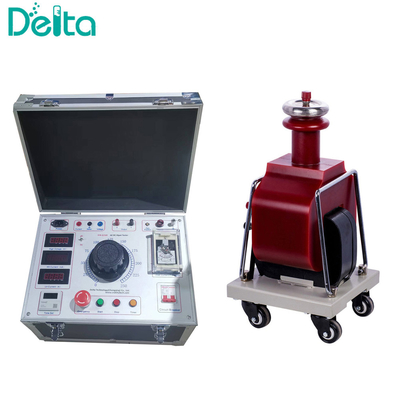

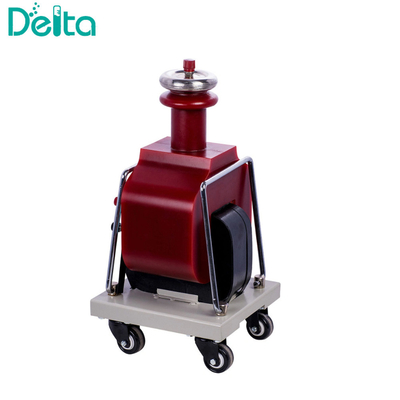

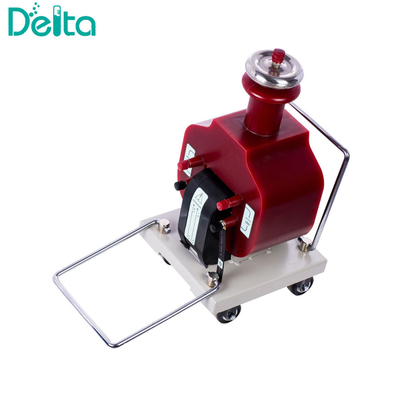

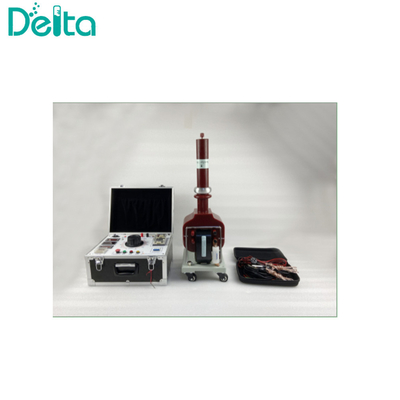

GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer
| Place of Origin | Chongqing, China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | GTB |
| Minimum Order Quantity | 1 set Dry Type Testing Transformer |
| Price | USD1.0 / set Dry Type Testing Transformer |
| Packaging Details | Dry Type Testing Transformer is packed in two plywood cases. |
| Delivery Time | Within 10 days after the order is confirmed |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 100 sets / month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer | Transformer Type | Dry Type |
|---|---|---|---|
| Output Voltage | 50kv, 100kv | Capacity | 1.5kVA - 30kVA |
| Application | Test Insulate Performance Of Electrical Equipment | Output Voltage Type | AC And DC |
| Impedance Voltage | 4.5%-8% | Output Voltage Waveform | Sine Wave |
| Iron Core Type | CD Type | Allowable Continuous Operation Time | 2 Hours |
| Input Voltage | 200V | Interrupted Operation Time | Continuous |
| Language | English | Delivery Lead Time | 10 Days |
| Shipping Method | By Air |
Product Description
GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer
Introduction:
GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer uses advanced production equipment, and new technology of coil winding epoxy vacuum pouring and CD-type iron core, which obviously reduces weight and volume, improves insulating strength and humidity resistance level, effectively weakening leakage magnet resulting in greatly enhancing the ability to withstanding the impact of testing short circuit current of the transformer. This series of products are new generation high voltage testing transformers used for AC and DC in China.
Features:
- GTB Dry Type Testing Transformer has features of light weight, small volume, beautiful appearance, stable performance, convenient usage and carrying, especially suitable for site operation.
- GTB Dry Type Testing Transformer is applicable to the power system and all power users to detect on-site the insulating performance test of all electrical equipment, high voltage power sources of all appliance's voltage system, or equipment with DC high voltage small current.
Parameters:
- Impedance voltage: 4.5%-8%
- Surface temperature rise: sine wave
- Idle load loss consumption: 0.2%-0.35%
- Allowable continuous operation time: 2 hours
- Interrupted operation time: Continuous
| Model | Capacity (KVA) |
Input voltage(V) | Output voltage(KV) | Output current(mA) | Output DC high voltage(KV) | Max. External dimension(mm) | Weight (kg) |
| GTB-1.5/50 | 1.5 | 200 (400) |
50 | 30 | 70kV | 230*180*370 | 13 |
| GTB-3/50 | 3 | 60 | 310*250*570 | 30 | |||
| GTB-6/50 | 6 | 120 | 300*310*680 | 46 | |||
| GTB-10/50 | 10 | 200 | 320*350*720 | 73 | |||
| GTB-20/50 | 20 | 400 | 360*350*720 | 85 | |||
| GTB-30/50 | 30 | 600 | 500*380*780 | 120 | |||
| GTB-5/100 | 5 | 100 | 50 | 140kV | 360*350*960 | 80 | |
| GTB-10/100 | 10 | 100 | 360*350*960 | 80 | |||
| GTB-20/100 | 20 | 200 | 500*380*880 | 120 | |||
| GTB-30/100 | 30 | 300 | 580*380*880 | 160 | |||
| GTB-50/100 | 50 | 500 | 650*460*1010 | 230 |
