Zgf Lightweight 120W 3mA 300kv High Voltage DC Generator

Introduction:

• ZGF MOA High Voltage Leakage Current Tester is an important equipment for DC voltage withstand test and leakage current test of HV electrical equipment, cables, surge arresters in electriv industry and power supply departments;

• ZGF MOA High Voltage Leakage Current Tester is developed based on the calibration made by National HV Meterage Station, it accords with the standard "Generation Requirement of Portable DC HV Generator"(ZGF 24003-90);

• The new technology, new material and optimal selected components are applied, It has the advantages of high power, small volume, light weight, good performance and high stability;

Features:

• High reliability: high frequency voltage multi-doubler rectifier, simple circuit, high overload capability, rare fault, without maintenance.

• Small volume: one person can carry the largest DC HV generator (200kV/2mA). Its volume is only 1/(2～5) as the volume of the same kind of equipment made in Japan. It reaches the advanced level in the world.

• Perfect seal by metal housing, high mechanical strength. Its performance will not be influenced by vibration, moisture, dust and meteorological condition.

• Safe, convenience in operation, metal housing grounded. built-in HV terminals.

• There is no high voltage and low voltage connect outside, easy connection.

• Good auto protection function. It can nor be switched on if the HV output knob is not at zero position. Operation is simply. It automatically switch off in over voltage and over current case. There is dam pong resistor inside.It is not necessary to connect damping resistor outside.

• Excellent accuracy: The leakage current at HV side is measured by digital meter accuracy: 1uA, range switch is not required, discharge withstand current measurement function is available at low voltage side, It use precise resistor with good stability to measure high voltage.

Parameters:

• Power: AC220V+10%, 50Hz+1%;

• Output voltage indicator accuracy: <1%;

• Output current indicator accuracy: <1%;

• Ripple contain factor: <0.5%;

• 0.75 times output voltage indicator accuracy: <1%, can be locked;

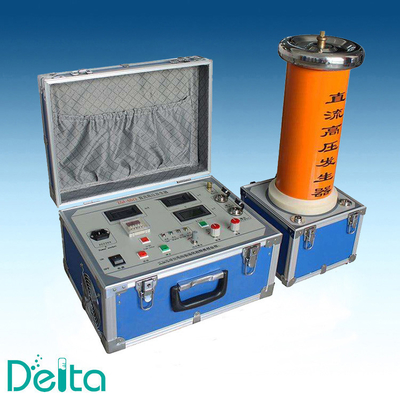

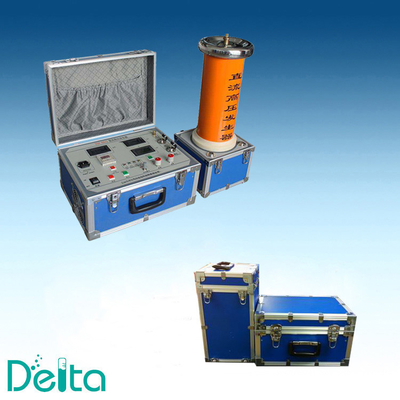

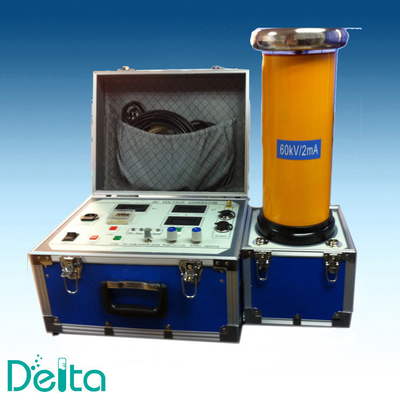

Real Picture:
