Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester

  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
  • Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number SYB
Minimum Order Quantity 1 set Oil Immersed Hipot Tester
Price USD1.0
Packaging Details Syb Set Portable AC DC Hipot Tester packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features China Made AC DC Hipot Tester Item Name Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester
Functions For Transformer, Generator Testing Description Oil Type 50kv To 500kv AC DC Hipot Tester
Other Name Oil Type Transformer Output Voltage 50kV To 300kV
Capacity 3kVA To 50kVA Power Supply AC220V ± 10%, 50Hz
Warranty One Year Core Core-type Transformer
Leave a Message
Product Description

Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester

Introduction:

SYB Set Portable AC DC Hipot Tester is applied in power system for insulation test of high voltage equipment.

The typical application of SYB Set Portable AC DC Hipot Tester is as follow:

  • Power Transformer AC high voltage withstand test
  • Circuit Breaker AC high voltage withstand test
  • High voltage motors high voltage withstand test
  • Voltage/current transformer high voltage withstand test
  • High voltage power source for calibration of high voltage meter



Model Selection Table:





Parameters:

  • Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.

  • The parameters in this table are response for HV transformer only and we will install the main control box according to the capacity and input voltage of the model you order.

Capacity

KVA

 SYB-50 Series SYB-100 Series SYB-150 Series
AC DC AC DC AC DC
3kVA 50KV 70KV
5kVA 50KV 70KV 100KV 140KV
10kVA 50KV 70KV 100KV 140KV 150kV 210KV
15kVA 50KV 70KV 100KV 140KV 150kV 210KV
20kVA 50KV 70KV 100KV 140KV 150kV 210KV
25kVA 50KV 70KV 100KV 140KV 150kV 210KV
30kVA 50KV 70KV 100KV 140KV 150kV 210KV
50kVA 50KV 70KV 100KV 140KV 150kV 210KV

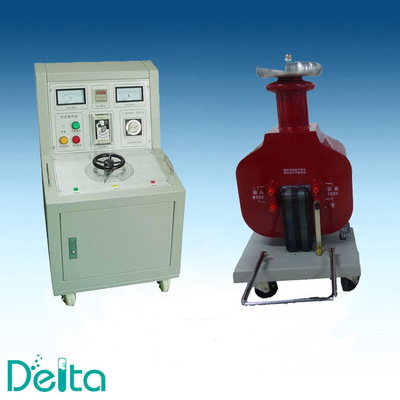

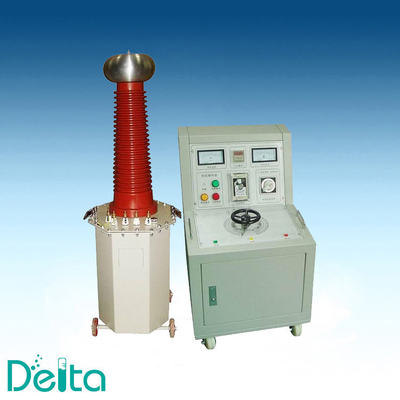

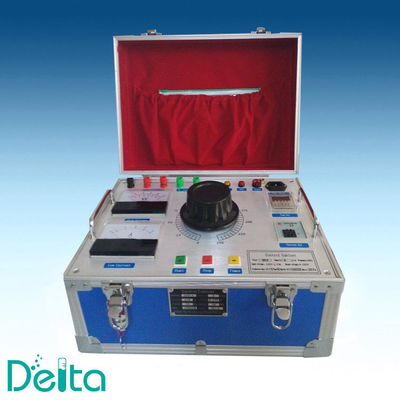

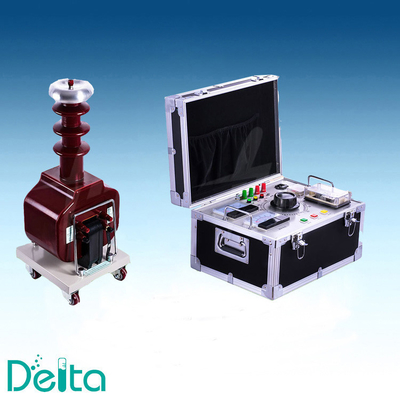

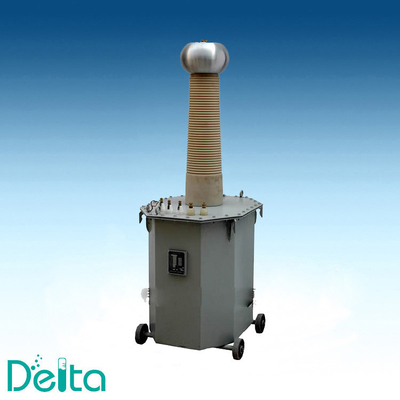

Syb High Voltage Power Frequency Test Set Portable AC DC Hipot TesterReal Picture:



Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester 0Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester 1Syb High Voltage Power Frequency Test Set Portable AC DC Hipot Tester 2
