Vlf 34kv High Power Sine Wave Vlf System Vlf Sine 34 Kv Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | VLF |
| Minimum Order Quantity | 1 set Very Low Frequency Tester |
| Price | USD1.0 |
| Packaging Details | Vlf Sine Wave Vlf System Vlf Sine Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Vlf 34kv High Power Sine Wave Vlf System Vlf Sine 34 Kv Tester | Functions | Supply High Voltage For Power Cable Testing |
|---|---|---|---|
| Voltage Output | 30kV, 40kV, 50kV, 60kV, 70kV, 80kV | Measurement Accuracy | 2.5% |
| Rated Current | 30mA | Frequency | 0.1Hz, 0.05Hz, 0.02Hz |
| Power Supply | AC220V ± 10%, 50Hz/60Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
Vlf 34kv High Power Sine Wave Vlf System Vlf Sine 34 Kv Tester
Introduction:
-
Vlf Sine Wave Vlf System Vlf Sine Tester is designed and manufactured for electrical equipment very low frequency withstand voltage test.
-
Vlf Sine Wave Vlf System Vlf Sine Tester is essentially an alternative of power frequency withstand voltage test.
-
It is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.
-
It can be applied for 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformer and other electrical equipment.
Features:
-
Max voltage output: refer to following table;
-
Output frequency: 0.1Hz, 0.05Hz, 0.02Hz;
-
Measurement accuracy: 2.5%;
-
Positive and negative voltage peak errors < 2.5%RDG+0.3%FS;
-
Voltage wave form distortion: <3%;
-
Insulation resistance measurement error: <2.5%;
-
Leakage current measurement error: <2.5%;
-
Power supply:AC220V ± 10%, 50Hz/60Hz;
-
Environment temperature: 0~50°C;
-
Humidity:≤85%RH;
Parameters:
| Model | Rated Voltage/current | Load Carrying Capacity | Power fuse wire | Product Structure and Weight |
| VLF-30 | 30kV/20mA (Peak) | 0.1Hz,≤0.5µF~1.1µF | 5A | Controller:4kg Booster: 25kg |
| 0.05Hz,≤0.5µF~2.2µF | ||||
| 0.02Hz,≤0.5µF~5.5µF | ||||
| VLF-40 | 40kV/30mA | 0.1Hz ≤ 1.1uF | 6A | Controller: 4kg Booster: 35kg |
| 0.05Hz ≤ 2.2uF | ||||
| 0.02Hz ≤ 5.5uF | ||||
| VLF-50 | 50kV/30mA (Peak) | 0.1Hz,≤0.5µF~1.1µF | 7A | Controller:4kg Booster: 50kg |
| 0.05Hz,≤0.5µF~2.2µF | ||||
| 0.02Hz,≤0.5µF~5.5µF | ||||
| VLF-60 | 60kV/30mA (Peak) | 0.1Hz,≤0.5µF | 9A | Controller:4kg Booster Grade 1(30kV):25kg Booster Grade 2(30kV):25kg |
| 0.05Hz,≤0.5µF~1µF | ||||
| 0.02Hz,≤0.5µF~2.5µF | ||||
| VLF-80 | 80kV/30mA (Peak) | 0.1Hz,≤0.5µF | 12A | Controller:4kg Booster Grade 1(30kV):25kg Booster Grade 2(50kV):50kg |
| 0.05Hz,≤0.5µF~1µF | ||||
| 0.02Hz,≤0.5µF~2.5µF |

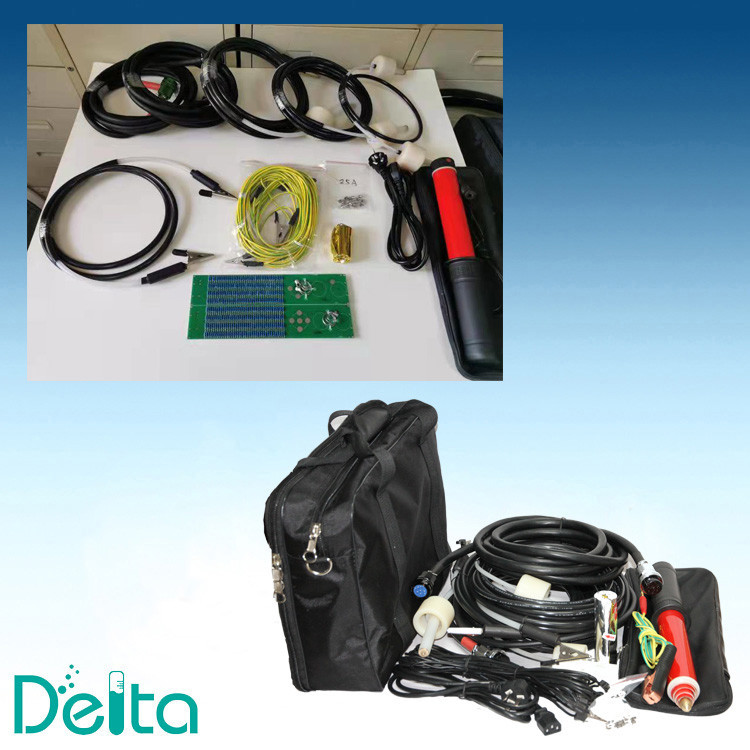

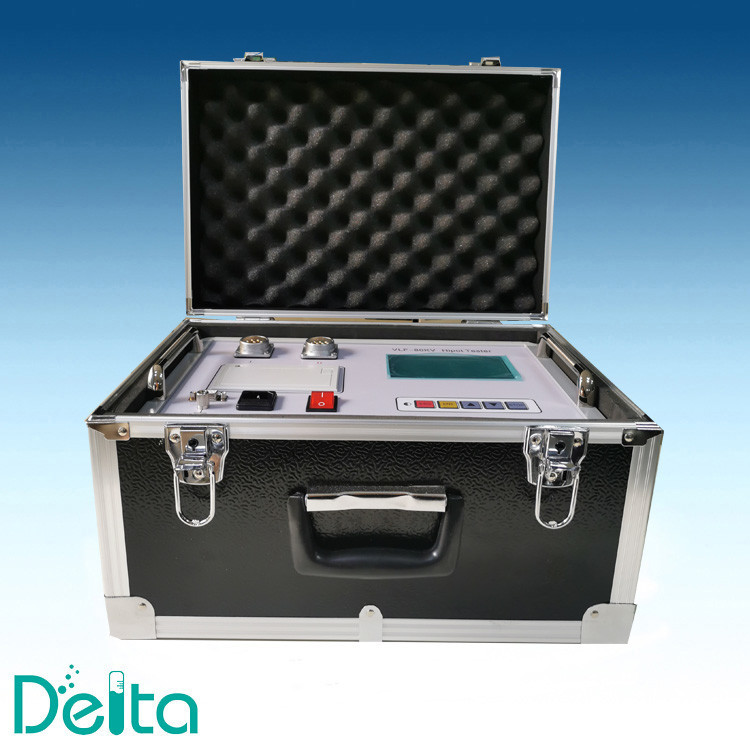

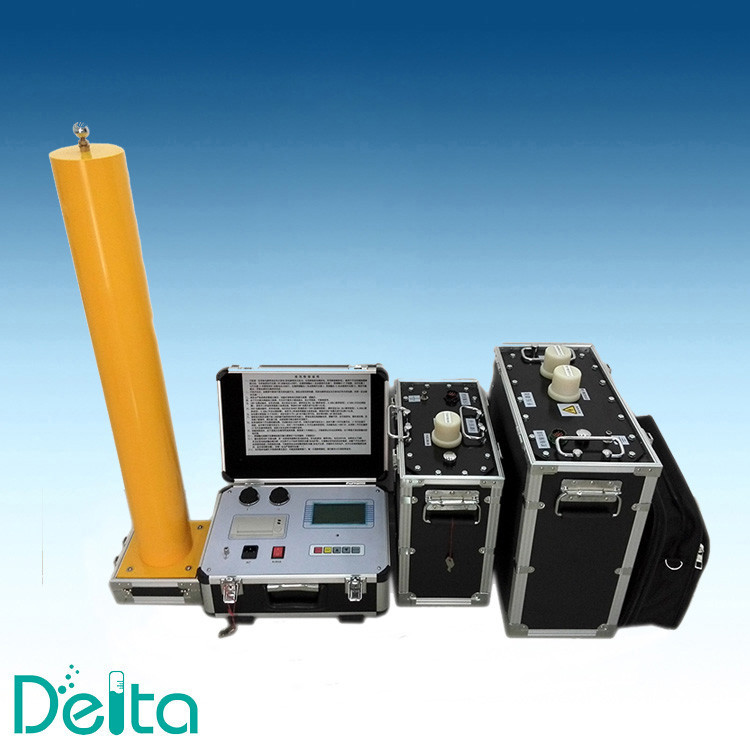

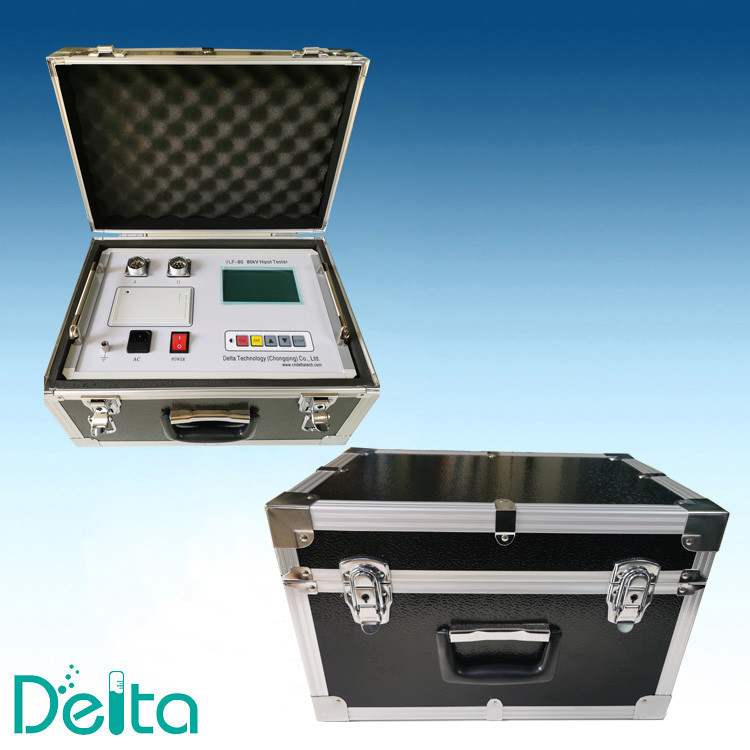

Vlf Sine Wave Vlf System Vlf Sine Tester Real Picture:
