Syb China Manufacturer Oil Type 50kv to 500kv AC DC Hipot Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SYB |
| Minimum Order Quantity | 1 set Oil Immersed Hipot Tester |
| Price | USD1.0 |
| Packaging Details | Syb China Manufacturer Oil Type Hipot Tester packed in veneer case |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small In Volume, Light In Weight, Dual, Low Price | Item Name | Syb China Manufacturer Oil Type 50kv To 500kv AC DC Hipot Tester |
|---|---|---|---|
| Functions | Syb China Manufacturer Oil Type Hipot Tester For Insulation Test Of High Voltage Equipment | Other Name | Oil Type Transformer |
| Output Voltage | 50kV To 300kV | Capacity | 3kVA To 50kVA |
| Power Supply | AC220V ± 10%, 50Hz | Warranty | One Year |
| Service | OEM Service Is Available |
Product Description
SYB Series 50kV to 500kV AC DC Type Oil Immersed Hipot Tester
Introduction:
Syb Oil Type Hipot Tester is applied in power system for insulation test of high voltage equipment.
The typical application of Syb Oil Type Hipot Tester is applied is as follow:
- Power Transformer AC high voltage withstand test
- Circuit Breaker AC high voltage withstand test
- High voltage motors high voltage withstand test
- Voltage/current transformer high voltage withstand test
- High voltage power source for calibration of high voltage meter
Model Selection Table:
-
Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.
-
The parameters in this table are response for HV transformer only and we will install the main control box according to the capacity and input voltage of the model you order.
| Capacity KVA | SYB-50 Series | SYB-100 Series | SYB-150 Series | |||
| AC | DC | AC | DC | AC | DC | |
| 3kVA | 50KV | 70KV | ||||
| 5kVA | 50KV | 70KV | 100KV | 140KV | ||
| 10kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |
| 15kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |
| 20kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |
| 25kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |
| 30kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |
| 50kVA | 50KV | 70KV | 100KV | 140KV | 150kV | 210KV |

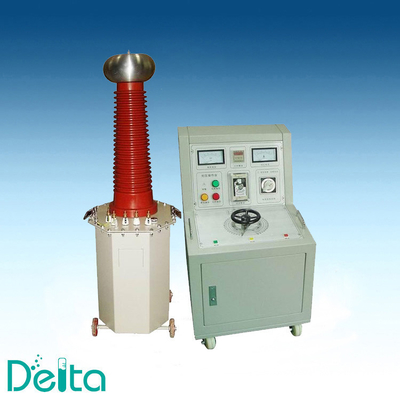

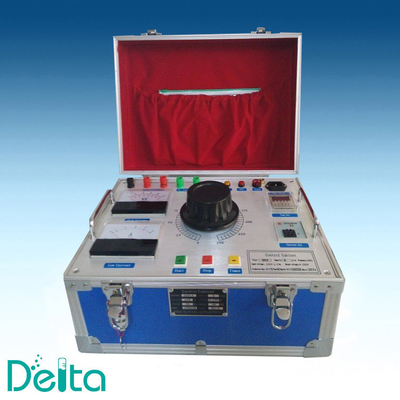

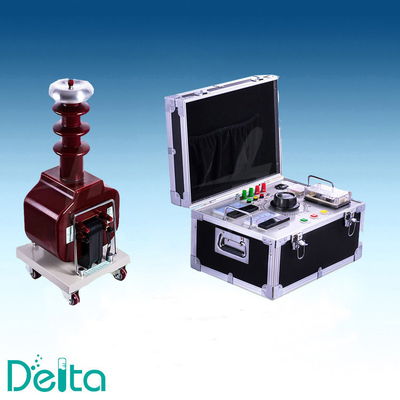

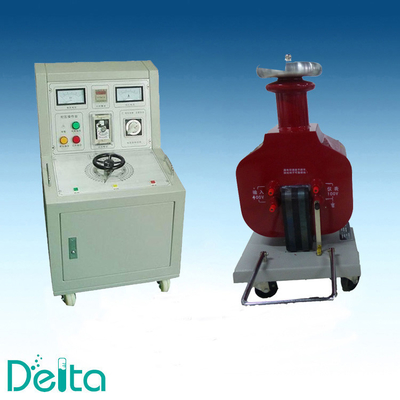

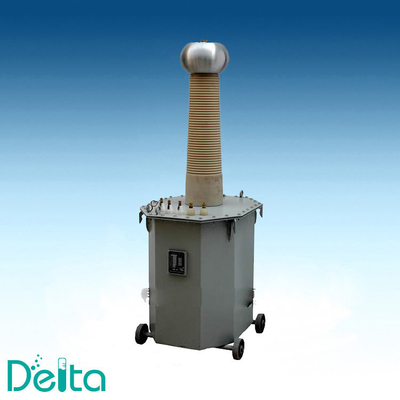

Syb Oil Type Hipot Tester is applied Real Picture:
