Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer

  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
  • Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number SYB
Minimum Order Quantity 1 set Oil Immersed Hipot Tester
Price USD1.0
Packaging Details Sf6 Type Testing Transformer packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Small In Volume, Light In Weight, Dual, Low Price Item Name Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer
Functions Sf6 Type Testing Transformer For Insulation Test Of High Voltage Equipment Other Name Oil Type Transformer
Output Voltage 50kV To 300kV Capacity 3kVA To 50kVA
Power Supply AC220V ± 10%, 50Hz Warranty One Year
Service OEM Service Is Available
Leave a Message
Product Description

Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer

Introduction:

SYB Type Testing Transformer is applied in power system for insulation test of high voltage equipment.

The typical application of SYB Type Testing Transformer is as follow:

  • Power Transformer AC high voltage withstand test
  • Circuit Breaker AC high voltage withstand test
  • High voltage motors high voltage withstand test
  • Voltage/current transformer high voltage withstand test
  • High voltage power source for calibration of high voltage meter



Model Selection Table:

  • Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.

  • The parameters in this table are response for HV transformer only and we will install the main control box according to the capacity and input voltage of the model you order.

Capacity

KVA

 SYB-50 Series SYB-100 Series SYB-150 Series
AC DC AC DC AC DC
3kVA 50KV 70KV
5kVA 50KV 70KV 100KV 140KV
10kVA 50KV 70KV 100KV 140KV 150kV 210KV
15kVA 50KV 70KV 100KV 140KV 150kV 210KV
20kVA 50KV 70KV 100KV 140KV 150kV 210KV
25kVA 50KV 70KV 100KV 140KV 150kV 210KV
30kVA 50KV 70KV 100KV 140KV 150kV 210KV
50kVA 50KV 70KV 100KV 140KV 150kV 210KV

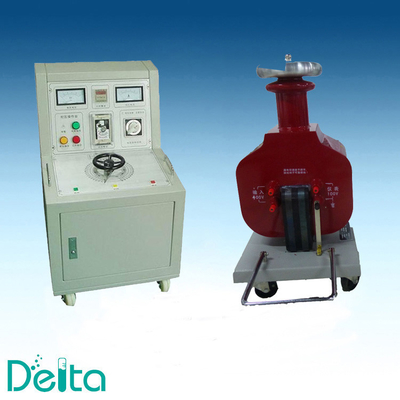

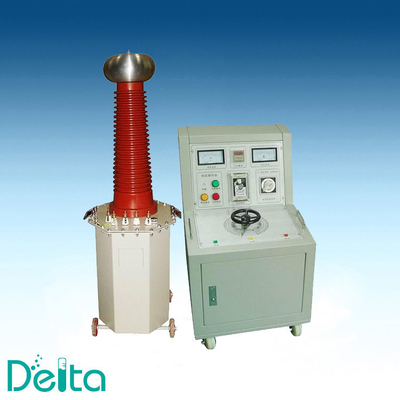

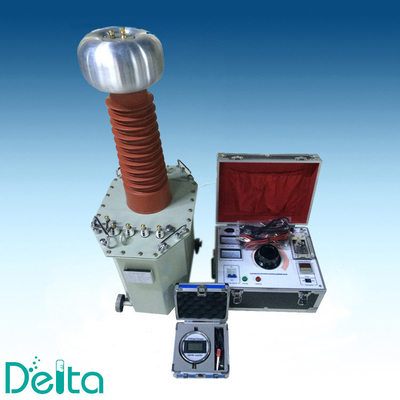

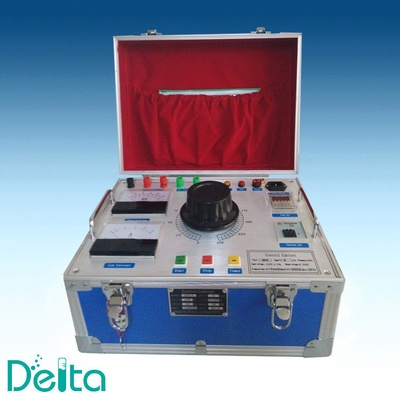

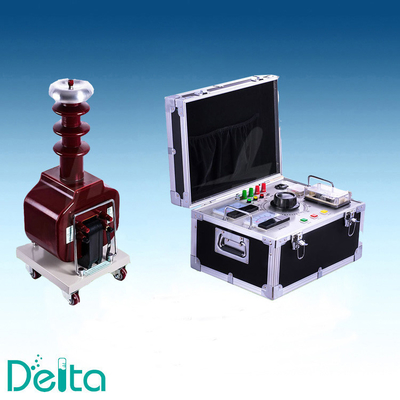

SYB Type Testing Transformer  Real Picture:

Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer 0Sf6 Gas Hv 3kVA 300kv Dry Type Testing Transformer 1
