Slq Movable 5000A 6V Circuit Breaker Primary Current Injection Test Set
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | SLQ |
| Minimum Order Quantity | 1 set Primary Current Injection Tester 1000A |
| Price | USD1.0 |
| Packaging Details | Slq Breaker Primary Current Injection Test Set packed in veneer cas |
| Delivery Time | 10 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Small Size, Light Weight, Good Performance, Easy Use | Item Name | Slq Movable 5000A 6V Circuit Breaker Primary Current Injection Test Set |
|---|---|---|---|
| Functions | Movable 5000A 6V Circuit Breaker Primary Current Injection Test Set， Supply High Current For Testing | Output Current | Slq 5000A 6V Circuit Breaker Primary Current Injection Test Set，500A To 10000A |
| Capacity Range | 3kVA To 60kVA | Structure | Integrated Or Seperated |
| Weight | 45kg To 200kg | Power Supply | AC220V ± 10%, 50Hz/60Hz |
| Warranty | One Year | Service | OEM Service Is Available |
Product Description
Slq Movable 5000A 6V Circuit Breaker Primary Current Injection Test Set
Introduction:
SLQ Breaker Primary Current Injection Test Set is essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units.
- SLQ Breaker Primary Current Injection Test Set is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.
Features:
Two ammeters, can supervise different measurement range.
With indicator lighting and button, easy to operate
Incorporated and dividable structure, easy to move.
SLQ Breaker Primary Current Injection Test Set capacity is designed based on 5-minute short-term work system. For intermittent work, working time
should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down.
Parameters:
Model | Capacity (KVA) | Junior Range | Secondary Range
| dimensions (mm) L×W×H | Weight ( kg) | Structure | ||
V1 | A1 | V2 | A2 | |||||
SLQ-3/500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 45 | Integrated |
SLQ-6/1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 65 | Integrated |
SLQ-12/2000 | 12 | 380 | 31.6 | 6 | 2000 | 580×400×750 | 105 | Integrated |
SLQ-15/2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | Integrated |
SLQ-24/4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | Separated |
SLQ-30/5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900 300×500×500 | 145 135 | Separated |
SLQ-36/6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900 300×500×500 | 150 140 | Separated |
SLQ-48/8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950 350×550×550 | 180 | Separated |
SLQ-60/10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100 380×550×600 | 200 | Separated |
Working environment | 0-50℃, ≤85%RH | |||||||
The capacity and maximum current output could be customized according to the requirements of customer if you can not find the one you need in this table. | ||||||||

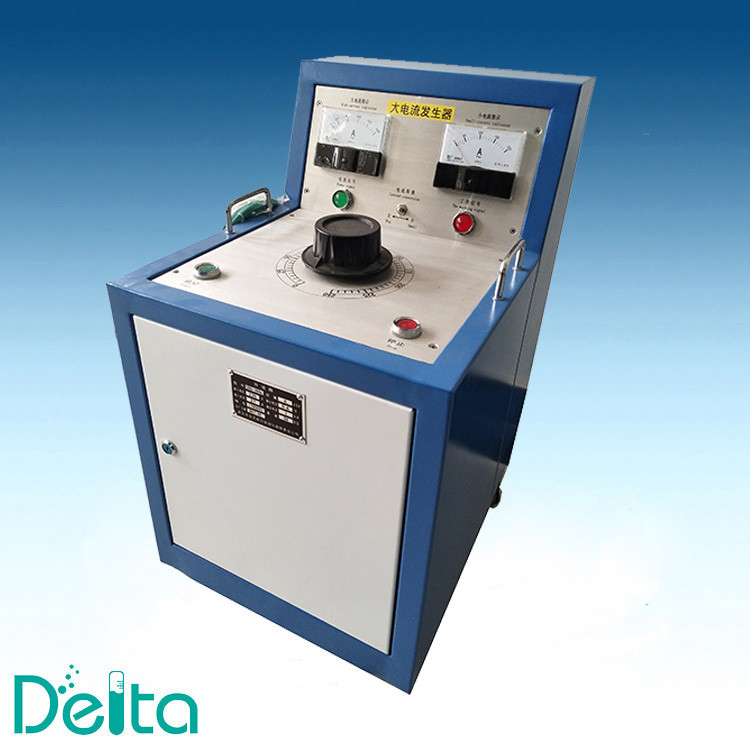

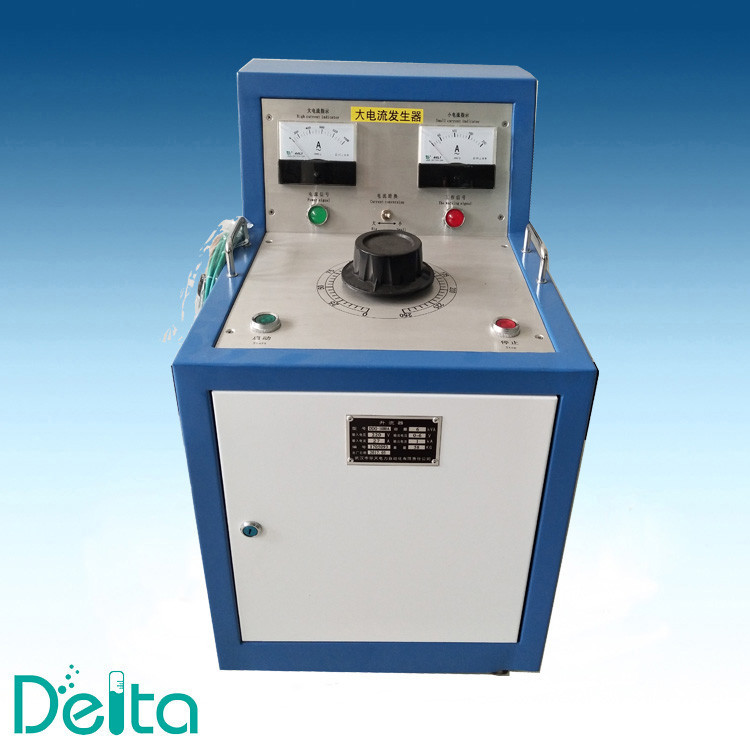

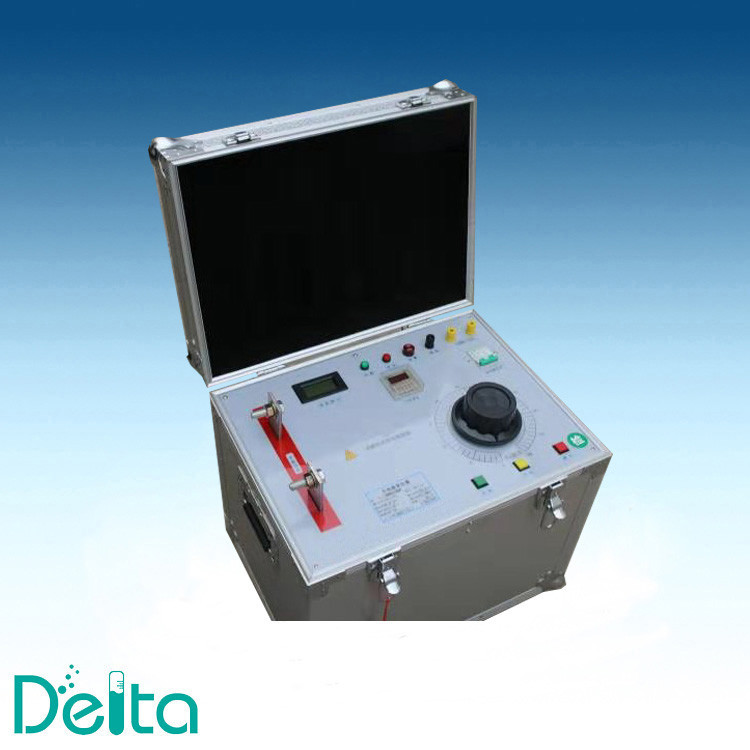

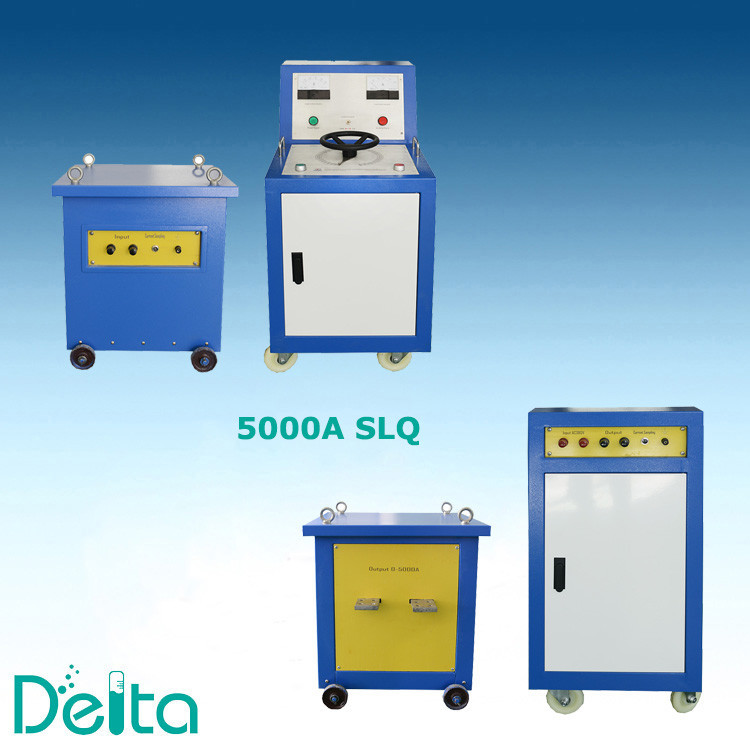

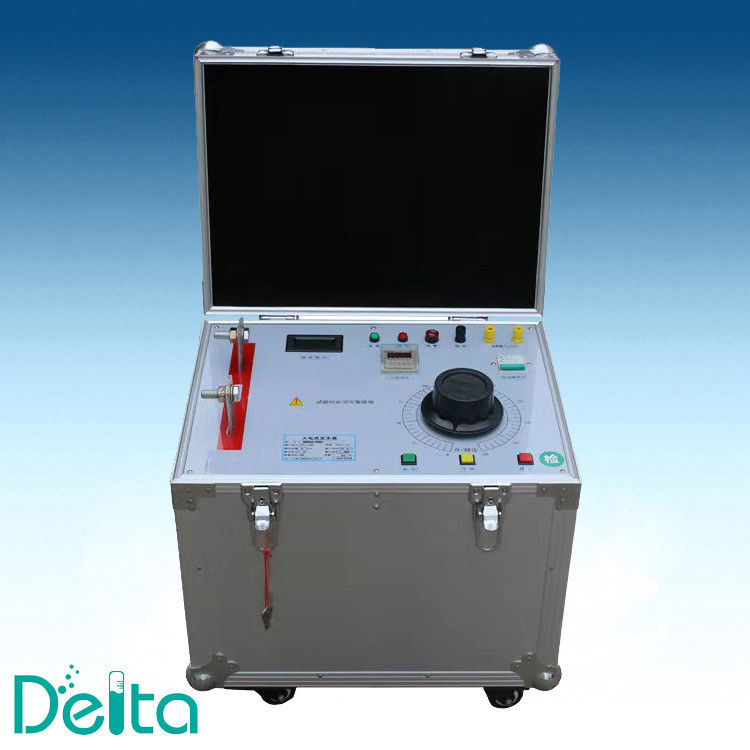

Slq Movable 5000A 6V Circuit Breaker Primary Current Injection Test Set Real Picture:
