AC DC Oil Immersed Transformer 30kVA 300kV Cable Test Equipment

  • AC DC Oil Immersed Transformer 30kVA 300kV Cable Test Equipment
  • AC DC Oil Immersed Transformer 30kVA 300kV Cable Test Equipment
Place of Origin China
Brand Name LAB TECH
Certification ISO9001
Model Number JZ
Minimum Order Quantity 1 set AC DC Oil Immersed Transformer Cable Test Equipment in one order
Price USD1.0
Packaging Details AC DC Oil Immersed Transformer Cable Test Equipment packed in veneer case
Delivery Time 10 days
Payment Terms T/T, Western Union
Supply Ability 1000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Small In Volume, Light In Weight, Dual, Low Price China Made Oil Immersed Transformer Cable Test Equipment Item Name AC DC Oil Immersed Transformer 30kVA 200kV Cable Test Equipment
Functions Power Supply For Insulation Test Of High Voltage Equipment Other Name Oil Type Transformer, Oil Immersed Transformer, Hipot Tester
Output Voltage 50kV To 300kV Capacity 3kVA To 50kVA
Power Supply AC220V ± 10%, 50Hz Shipping Method By Sea
Warranty One Year Service OEM Service Is Available
Leave a Message
Product Description

AC DC Oil Immersed Transformer / Cable Test Equipment

Introduction:

AC DC Oil Immersed Transformer is applied in power system for insulation test of high voltage equipment.

The typical application of the AC DC Oil Immersed Transformer is as follow:

  • Power Transformer AC high voltage withstand test
  • Circuit Breaker AC high voltage withstand test
  • High voltage motors high voltage withstand test
  • Voltage/current transformer high voltage withstand test
  • High voltage power source for calibration of high voltage meter



Model Selection Table:

  • Please confirm the right model before order. The main parameters include input voltage, maximum output voltage and capacity.

  • The parameters in this table are response for HV transformer only and we will install the main control box according to the capacity and input voltage of the model you order.

Capacity

KVA

 JZ-50 Series JZ-100 Series JZ-150 Series
AC DC AC DC AC DC
3kVA 50KV 70KV
5kVA 50KV 70KV 100KV 140KV
10kVA 50KV 70KV 100KV 140KV 150kV 210KV
15kVA 50KV 70KV 100KV 140KV 150kV 210KV
20kVA 50KV 70KV 100KV 140KV 150kV 210KV
25kVA 50KV 70KV 100KV 140KV 150kV 210KV
30kVA 50KV 70KV 100KV 140KV 150kV 210KV
50kVA 50KV 70KV 100KV 140KV 150kV 210KV

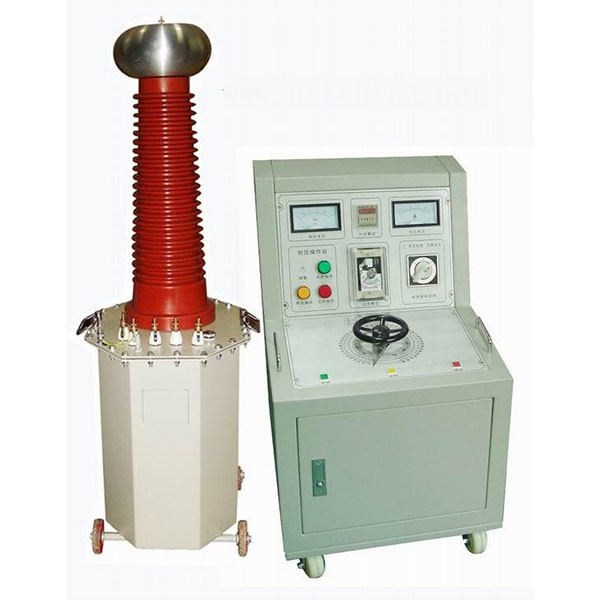

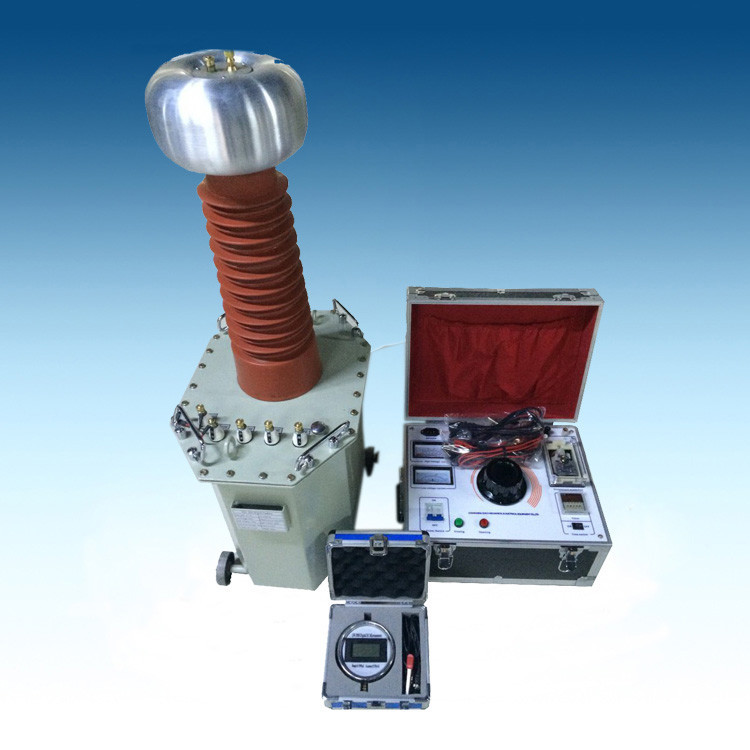

Real Picture:

AC DC Oil Immersed Transformer 30kVA 300kV Cable Test Equipment 0
