IMO Thermal Radiant Flame Spread Tester ISO5658 ASTM 1317

IMO Thermal Radiant Flame Spread Tester ISO5658 ASTM 1317

Introduction:

SFT IMO Thermal Radiant Flame Spread Tester is used for the combustion characteristics of building materials, high-speed train materials, and ship materials.

SFT IMO Thermal Radiant Flame Spread Tester measures the flame spread speed, ignition heat and total heat release according to distance and CEF (critical heat radiation flow).

This test method is used to evaluate the burning characteristics of test objects installed vertically in accordance with ISO 5658-2 and IMO Res.653.

The test object is exposed to the appropriate heat dissipation area given by the gas combustion type of the heat sink, and then when combustion occurs, the signal value is measured in mV using a calibrated thermocouple.

In addition, the ignition time is also recorded and the flame burning time of the test object is recorded according to the distance of the test object, and the flame spread speed is also recorded.
Other test items include ignition heat (MJ/m2), continuous combustion heat (MJ/m2), critical heat radiation flow (kW/m2), average heat of continuous combustion and total heat dissipation (kW).

Parameters:

Features:

1. SFT IMO Thermal Radiant Flame Spread Tester consists of four main components: a set of radiant plate holders and a set of sample holders. At the same time, connect them together so that the test sample, the radiant plate, the sample holder, and the pilot burner form the required structure;
2. The radiant panel provides a radiating surface with a size of about 480 mm X 280 mm, and a wire mesh screen is provided in front of the radiating surface to increase the radiance;
3. Use a blower to provide the air source for the radiant panel, and use a frequency converter to adjust;
4. Adopt propane mass flow controller to adjust the gas source, cooperate with the Venturi mixer to mix with air, and provide the combustion gas source required by the radiant panel;
5. It provided a multi-hole calibration plate and a sliding heat flow meter moving track, which can detect whether the heat radiation flux meets the standard requirements;
6. Water-cooled heat radiation flux sensor is used to measure the heat radiation flux curve of radiant panels;
7. Portable water cooling circulation device, which can take away the surface heat of the heat flow meter;
8. The ceramic tube burner can directly act on the surface of the test sample with an open flame;
9. Adopting rotor flowmeter adjustment method, which can provide ceramic tube burner with mixed combustion gas;
10. The mass flow controller can easily measure the heat of methane by measuring the critical heat flux;
11. According to IMO test standards, thermocouple devices can be provided to measure related parameters such as heat release rate;
12. Methane calibration burner and methane mass flow controller can provide 1KW and 3KW flame temperature;
13. During the test, the camera can observe and save the measurement status in the program;
14. The Flame Spread Properties Test Equipment is equipped with an angle-adjustable observation mirror, the flame spread rate can be observed through the glass mirror and sample rake during the test, and can be automatically recorded by the foot switch;
15. Computer and standard test software are used to control the test process

Reference Standards:

ISO 5658-2 : Reaction to fire tests Spread of flame - Part 2 Lateral spread on building products in vertical configuration;

IMO Resolution A. 653(16): Recommendation on fire test procedures for flammability of bulkhead, ceiling and deck finish materials;

ASTM E1317 : Standard test method for flammability of marine surface finishes;

ASTM E1321 :Standard Test Method for Determining Material Ignition and Flame Spread Properties;

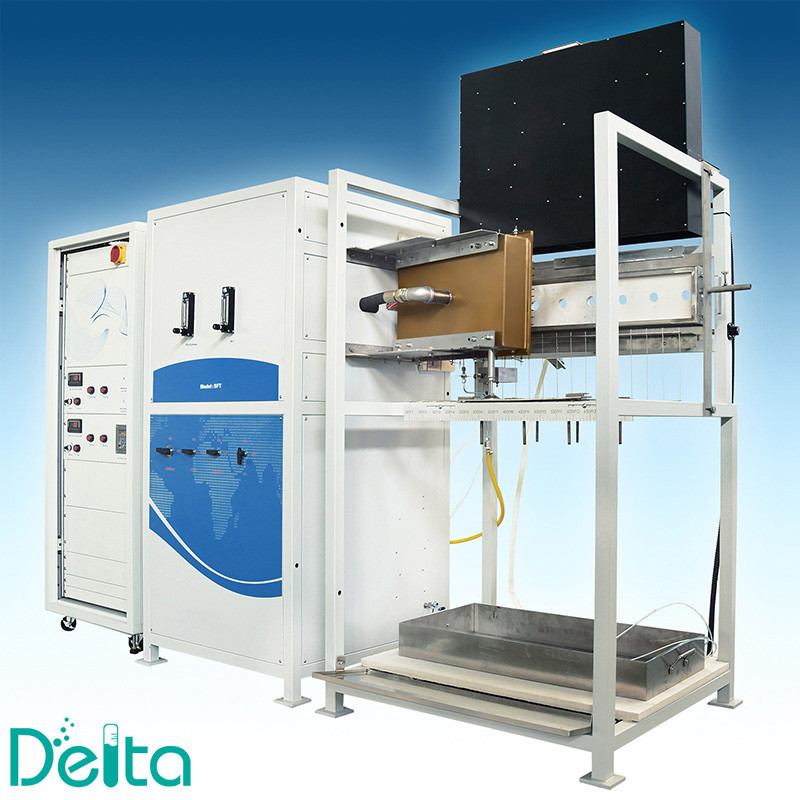

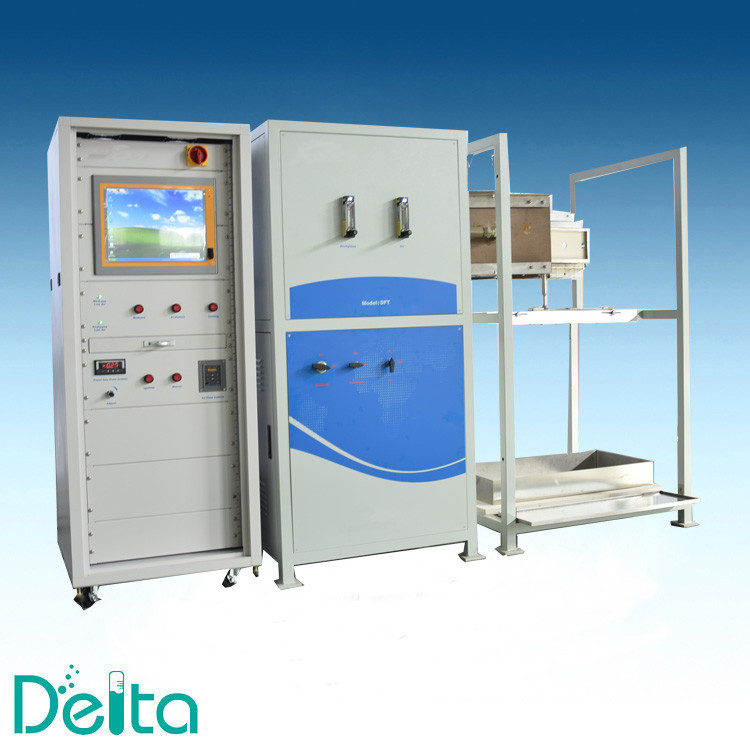

SFT IMO Thermal Radiant Flame Spread Tester measuresReal pictures:
