MMS ISO 9150 Protective Clothing Molten Metal Splashes Impact Tester
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | MMS |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | MMS ISO9150 Molten Metal Splashes Impact Tester packed in veneer case |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | ISO9150 Molten Metal Splashes Resistant Test Equip | Item Name | MMS ISO 9150 Protective Clothing Molten Metal Splashes Impact Tester |
|---|---|---|---|
| Description | Clothing Molten Metal Splashes Impact Tester | Function | Determine Behaviour Of Splashes Of Molten Metal |
| Dimension | 500mm(W) * 700mm(H) * 500mm(D) | Power Source | AC220V |
| Payment Term | 30% T/T As Deposit, The Balance Before Delivery | Weight | 0-100Kg |
| Accuracy Grade | 0.5 |
Product Description
MMS ISO 9150 Protective Clothing Molten Metal Splashes Impact Tester
Introduction:
It is suitable to measure the resistance of protective materials to liquid metal splash.During test,certain molten metal splashes on sample which is installed at specified angel.Put a PVC film on the sample's back to contact it.
Record the change of PVC film after splashing to evaluate the damage situation. According to test result,using bigger or smaller metal to repeat the test until the damage of PVC film is least.
Parameters:
| No. | Item Name | MMS ISO9150 Molten Metal Splashes Impact Tester |
| 1 | Application field | Safety protection |
| 2 | Reference standards | ISO 9150, EN 348 |
| 2 | Dimension | 500mm(W)X 700mm(H)X 500mm(D) |
| 3 | Weight | 42kg |
| 4 | Power supply | 230 volts Nominal 10 Amps |
| 5 | Ambient temperature | Operating 25±5ºC |
| 6 | Gas supply | Oxygen and acetylene |
Features:
- Melt the metal with furnace having induction coils and high frequency generator.
- Far IR temperature measuring device is used to control temperature and measure splashing temperature.
- Temperature is set at 700°C~1800° by temperature controller.
- Step motor controls inclination speed and angel.
- Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
- Senor for measuring the temperature linked to a recording device.
- Holding frame and counterweights for the test specimen.
- Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
- Needle valves adjust the O2 and acetylene flow rate.
- LCD Screen display and control the motor speed.

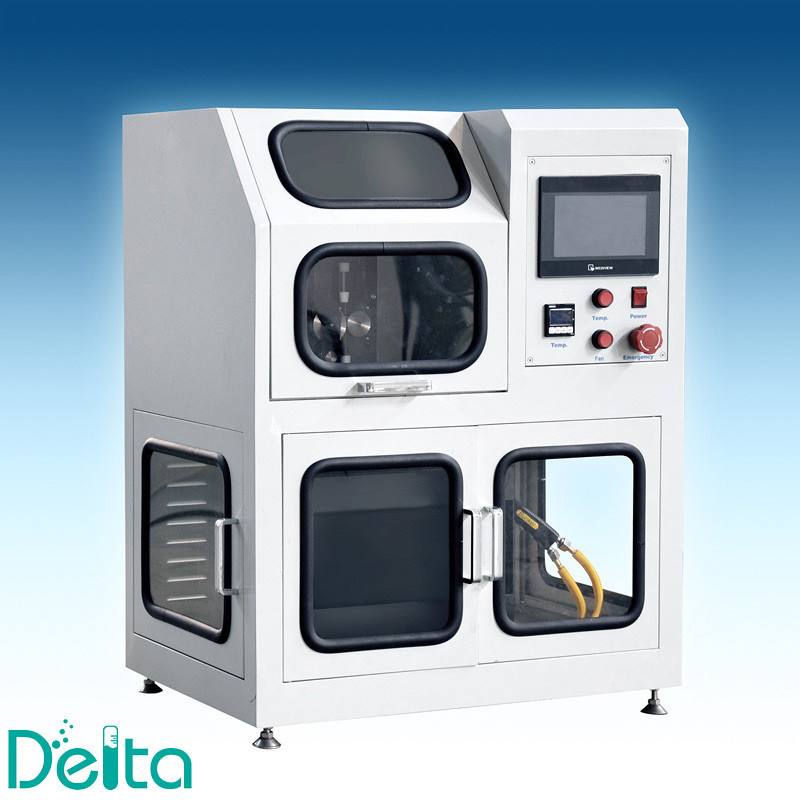

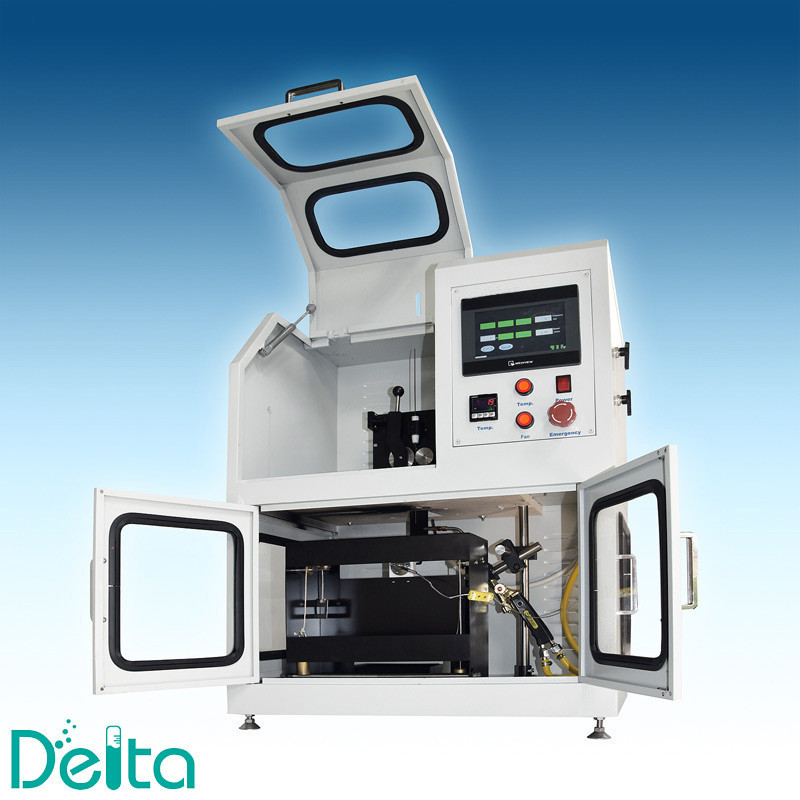

MMS ISO9150 Molten Metal Splashes Impact Tester Real Picture:
