MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment

  • MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment
  • MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment
Place of Origin China
Brand Name Delta
Certification ISO9001
Model Number MMS
Minimum Order Quantity 1 set Relay Tester
Price USD1.0
Packaging Details MMS ISO9150 Molten Metal Splashes Impact Tester packed in veneer case
Delivery Time 10-20 days
Payment Terms T/T, Western Union
Supply Ability 100 sets each month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features ISO9150 Molten Metal Splashes Resistant Test Equip Item Name MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment
Description Molten Metal Splashes Resistant Test Equipment Function Determine Behaviour Of Splashes Of Molten Metal
Dimension 500mm(W) * 700mm(H) * 500mm(D) Power Source AC220V
Payment Term 30% T/T As Deposit, The Balance Before Delivery Weight 0-100Kg
Accuracy Grade 0.5
Leave a Message
Product Description

MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment



Introduction:

It is suitable to measure the resistance of protective materials to liquid metal splash.During test,certain molten metal splashes on sample which is installed at specified angel.Put a PVC film on the sample's back to contact it.

Record the change of PVC film after splashing to evaluate the damage situation. According to test result,using bigger or smaller metal to repeat the test until the damage of PVC film is least.



Parameters:



No. Item Name MMS ISO9150 Molten Metal Splashes Impact Tester
1 Application field Safety protection
2 Reference standards ISO 9150, EN 348
2 Dimension 500mm(W)X 700mm(H)X 500mm(D)
3 Weight 42kg
4 Power supply 230 volts Nominal 10 Amps
5 Ambient temperature Operating 25±5ºC
6 Gas supply Oxygen and acetylene



Features:

  • Melt the metal with furnace having induction coils and high frequency generator.
  • Far IR temperature measuring device is used to control temperature and measure splashing temperature.
  • Temperature is set at 700°C~1800° by temperature controller.
  • Step motor controls inclination speed and angel.
  • Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
  • Senor for measuring the temperature linked to a recording device.
  • Holding frame and counterweights for the test specimen.
  • Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
  • Needle valves adjust the O2 and acetylene flow rate.
  • LCD Screen display and control the motor speed.

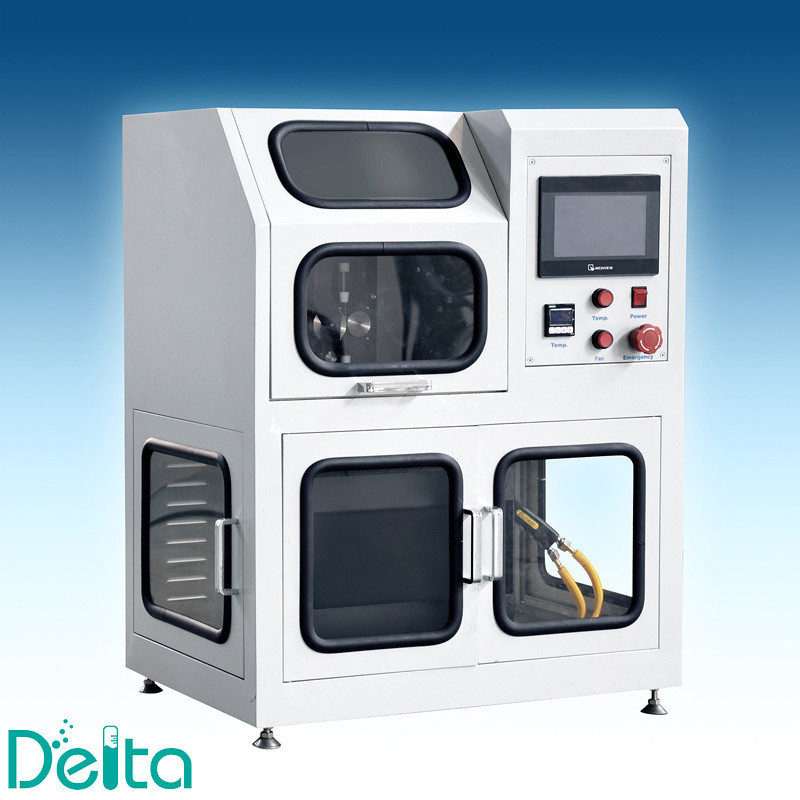

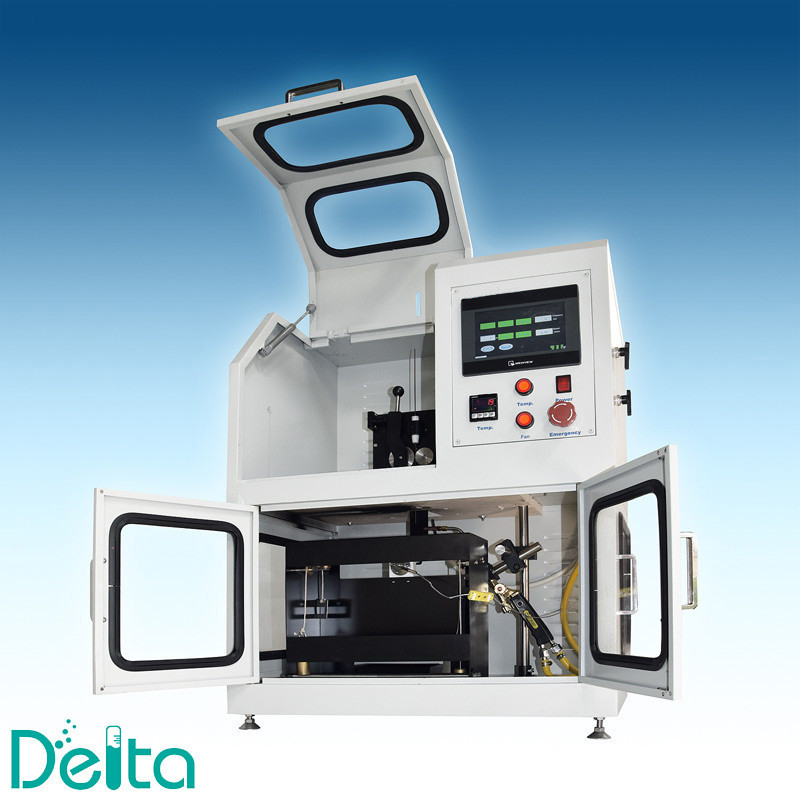

MMS ISO9150 Molten Metal Splashes Impact TesterReal Picture:

MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment 0MMS ISO Protective Clothing Molten Metal Splashes Resistant Test Equipment 1
