ISO 12127-1 Tester for Protective Clothing Againest Flame and Fire Testing
| Place of Origin | China |
|---|---|
| Brand Name | Delta |
| Certification | ISO9001 |
| Model Number | CHT |
| Minimum Order Quantity | 1 set Relay Tester |
| Price | USD1.0 |
| Packaging Details | CHT EN 702 Standard Protective Clothing Heat Transmission Tester packed in veneer case |
| Delivery Time | 10-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100 sets each month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | ISO 12127-1 Tester For Protective Clothing Againest Flame And Fire Testing | Function | Determination Of Contact Heat Transmission |
|---|---|---|---|
| Test Object | Protective Clothing | Description | Protective Clothing ISO 12127-1 Tester Reference Standards: En 702, ISO12127-1 |
| Contact Temperature | 100 Centigrade To 500 Centigrade | Weight | 55kg |
| Specification | 420mm (W) X 526mm X (H) X 260mm (D) | Payment Term | 30% T/T As Deposit, The Balance Before Delivery |
Product Description
ISO 12127-1 Tester for Protective Clothing Againest Flame and Fire Testing
Introduction:
CHT EN 702 Standard Protective Clothing Heat Transmission Tester is applicable to protective clothing (including hand protectors) or its constituent materials intended to protect against high contact temperature.
The application of the standard is restricted to contact temperatures from 100ºC to 500ºC.
Features:
- It is designed and manufactured according to EN 702 and ISO 12127-1 standards.
- CHT EN 702 Standard Protective Clothing Heat Transmission Tester determines the threshold time of temperature rise of 10°C in the calorimeter.
- In the test a heating cylinder is heated to a defined temperature and the specimen is put on the calorimeter.
- During the measuring the calorimeter is moved towards the heating cylinder with a defined skipping speed of 5 mm/s and after contact a load of 49N is applied.
- The temperature of the heating cylinder is adjustable from room temperature up to 500 °C.
Product Parameters:
| No. | Item Name | CHT EN 702 Standard Protective Clothing Heat Transmission Tester |
| 1 | Application field | Safety protection |
| 2 | Reference standard | EN 702, ISO 12127-1 |
| 3 | Dimension | 600(D) X 250(mm) X 650(mm) |
| 4 | Weight | 55kg |
| 5 | Power supply | 230 volts Nominal 10 Amps |
| 6 | Ambient temperature | Operating 25±5ºC |
| 7 | Gas supply | Propane and compressed air |

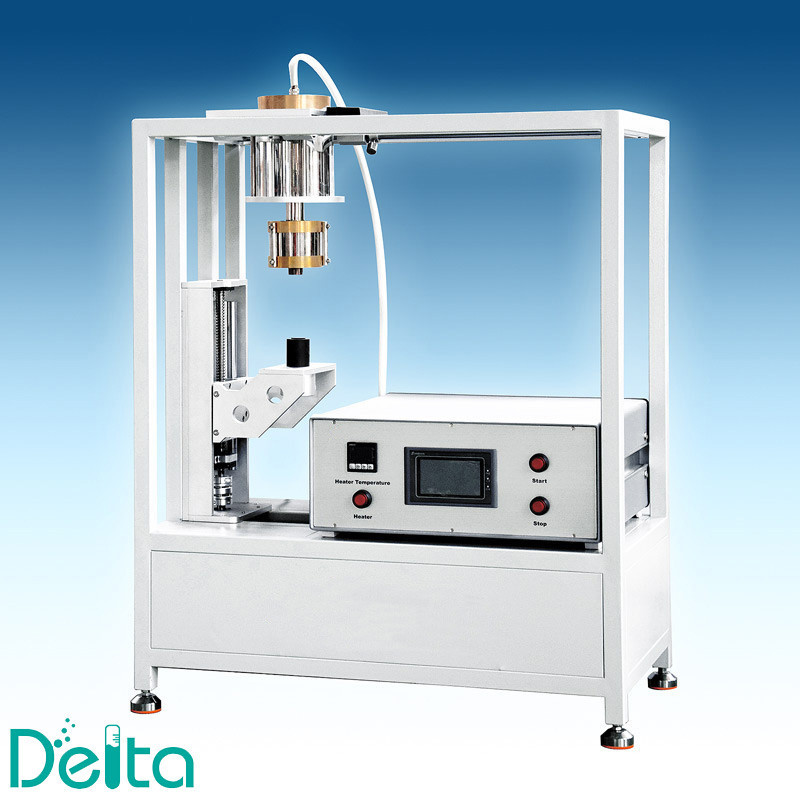

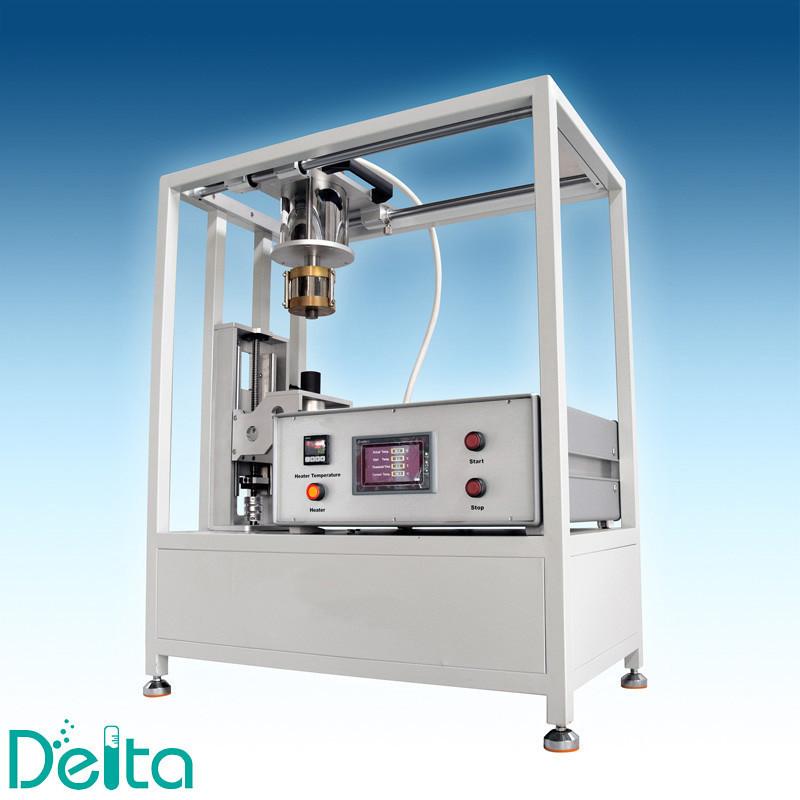

ISO 12127-1 Tester for Protective Clothing Againest Flame and Fire Testing Picture:
